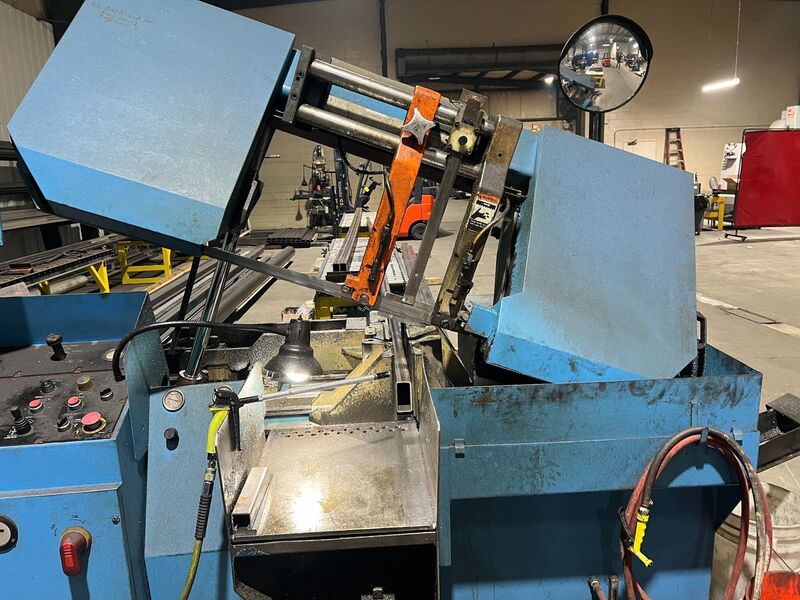

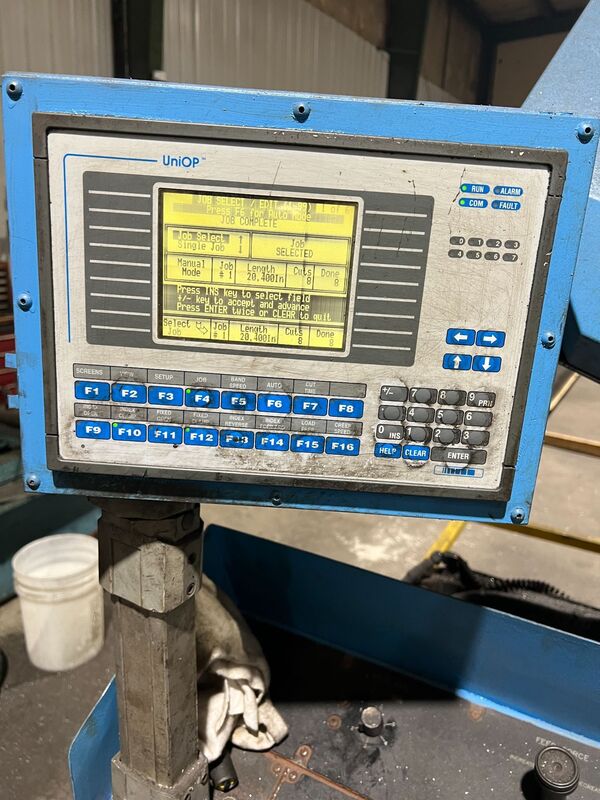

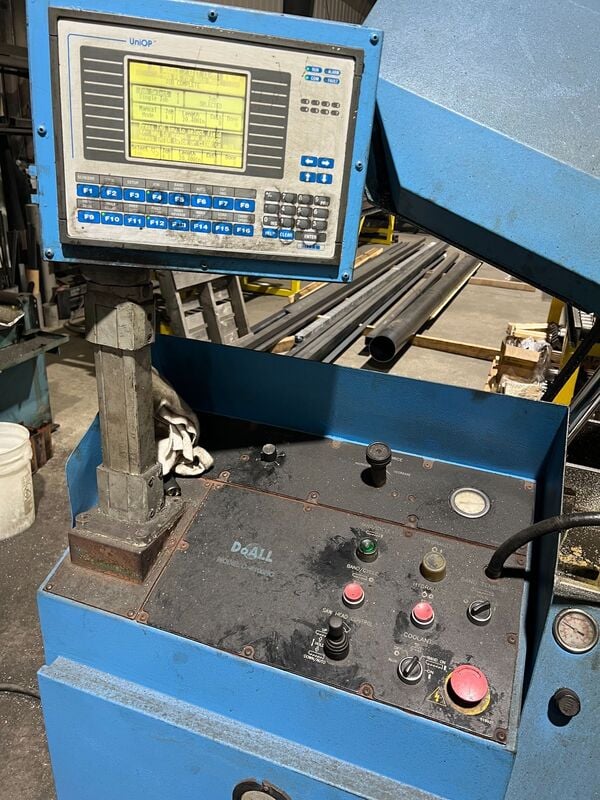

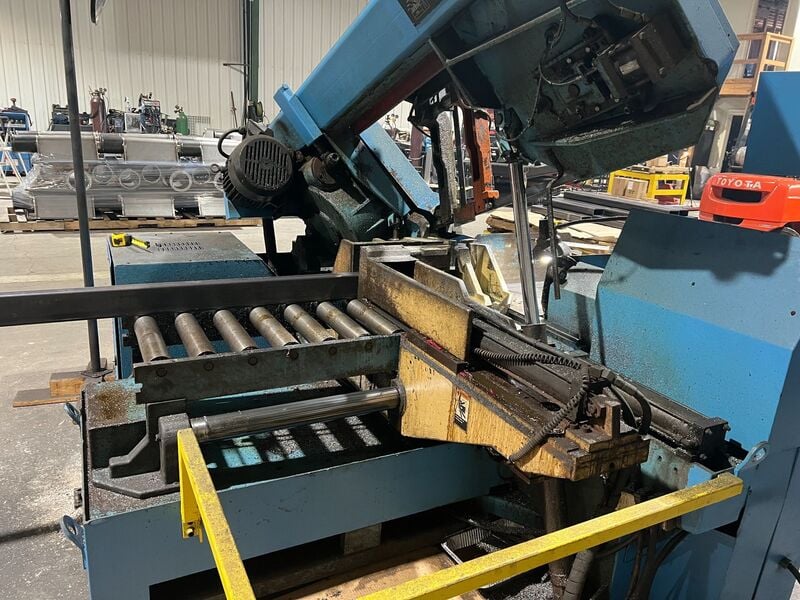

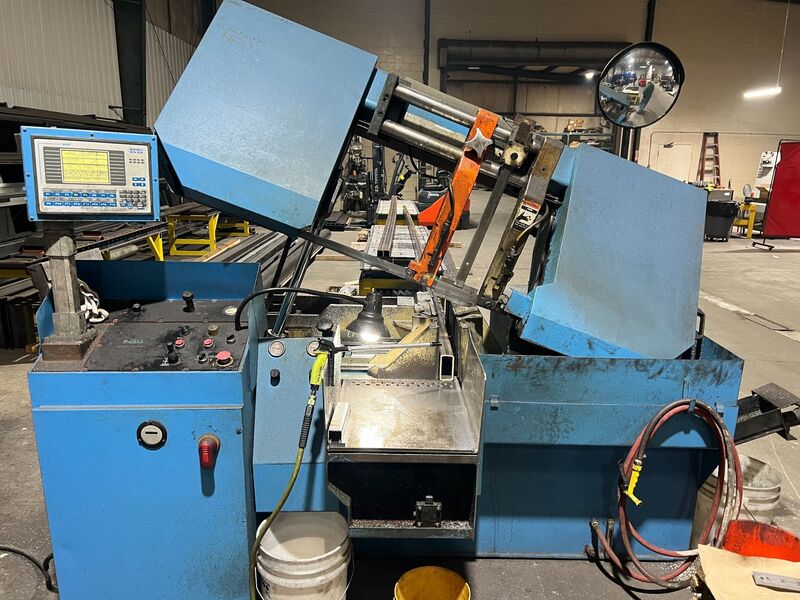

16" x 14" DOALL "C-4100NC" HEAVY-DUTY PROGRAMMABLE HIGH-PRODUCTION HORIZONTAL BAND SAW - UNIOP Programmable Control - Multiple Indexing - Automatic Hydraulic Stock Feed 16" x 14" DOALL HEAVY-DUTY PROGRAMMABLE HIGH-PRODUCTION AUTOMATIC HORIZONTAL BAND SAW Serial No. 524-00227, Model C-4100NC EQUIPPED WITH: UNIOP Programmable Control Multiple Indexing Automatic Hydraulic Stock-Feed Table Hydraulic Stock-Feeding and Clamping Vises Hydraulic Band Saw Up-Feed & Down-Feed Automatic Hydraulic Band Tension Built-in Coolant System w/Powered Chip Auger CATALOG SPECIFICATIONS: Maximum Capacity, Round Stock 16" Maximum Capacity, Square Stock 14" Maximum Capacity, Rectangular Stock 16"W x 14"H Minimum Capacity, Round 1/2" Single Length Index 24" Multiple Length Index 999" Minimum Length Index 1/4" Band Length 186" Band Width 1.25" Band Speeds, Variable 40 to 360 FPM Band Carrier Wheels, Diameter 21" Band Motor, Horsepower 10 HP Hydraulic Motor, Horsepower 2 HP Overall Height 7'4" Weight, Approximately 6800 LBS F.O.B. OUR WAREHOUSE
Main Drive Motor 10 HP. Single Automatic Index Length 24" (Max). Horizontal Band Saws. Hydraulic Drive Motor 2 HP. Round Capacity 16". Blade Speed 40 to 360 FPM. Variable Speed 105 - 275 fpm. Rectangular Capacity 16" x 14"..
Doall Heavy Duty Workhorse model C-4100NC horizontal Fully automatic, programmable Bandsaw., Extra Heavy design, 1 1/2" Blade, 7.5 H.P. Variable speed blade drive with programmable speeds, Myers Technology Company Proprietary, Round Work Capacity 16" - Square Work Capacity 14" x 16", Max Blade Size 1.5" x 186", Blade ...more
Make: DoALL, Model: C-4100 NC, Serial No: 51496165, Condition: Used, Overall in Great Shape, Automatic Programmable Horizontal Band Saw, Job Selector, Programming Controller, Coolant System, See Attached PDF Brochure.
Doal HEAVY DUTY 16" Capacity programmable Horizontal Bandsaw, With Variable vise pressure, Programmable blade speed, checked out and ready to run, like Amada, Behringer, HEM, Hyd-Mech, Kasto, Doall Fully automatic 16" Bandsaw with programmable control, 1.5" Blade, Hyd. blade tension, Like Marvel, Amada, HEM, Hyd-Mech ...more
