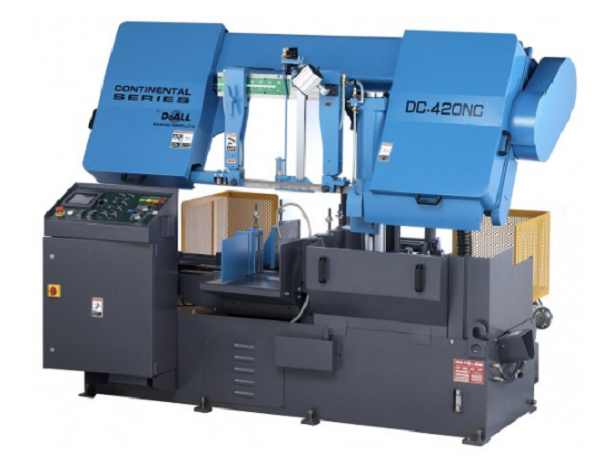

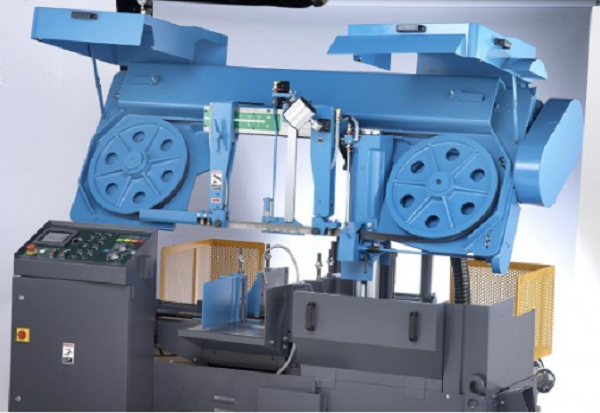

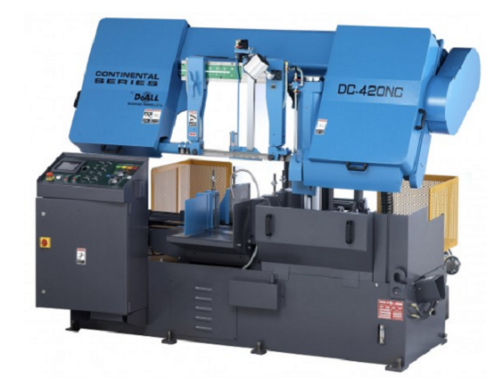

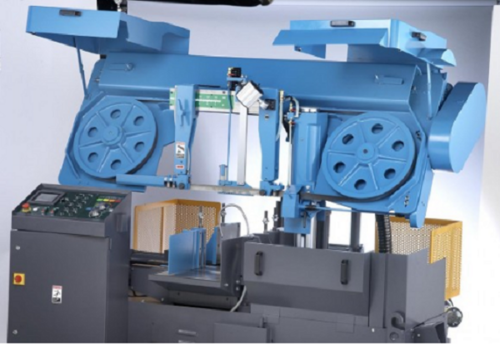

16-1/2" x 16-1/2" DoAll #DC-420NC, production band saw, PLC, 192" blade, 52-275 FPM, new

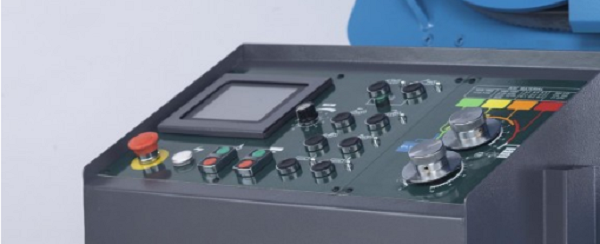

16-½” x 16-½” Band Saw with PLC Control for all Electric and Hydraulic Functions Infinitely Variable Speed Controlled by VFD Hydraulic Retractable Shuttle Vise Material Indexer Rapid and Creep Speed Index Vise Control Multi-Step Full Stroke Vises with Split Front Vise and Variable Vise Pressure Control Nesting Fixture for Bundle Cutting Spring Loaded Zero Clearance Coolant Through Carbide Faced Saw Guide with Lead-In Rollers Power Driven Coolant Flushed Blade Cleaning Wire Brush Flushing Hose and Auxiliary Coolant Nozzles Hydraulic Blade Tension Automatic Chip Conveyor Tool Kit Complimentary DoALL Cutting Fluids Package One DoALL Bi-Metal Saw Blade Operation and Parts Manuals on CD or USB Data Stick.

GENERAL SPECIFICATIONS

• Cutting Capacity Round: 16-1/2″
• Cutting Capacity Rectangle: 16-1/2″ x 16-1/2″
• Bundle Capacity Maximum: 14-1/2″ x 7-5/8″
• Bundle Capacity Minimum: 6-1/2″ x 3-1/4″
• Band Saw Blade (L x W x Gage): 192 x 1-1/2 x 0.05″
• Band Speed: 52-275 fpm
• Band Drive Motor: 10 hp
• Hydraulic Pump: 2 hp
• Hydraulic Tank Capacity: 22 gal
• Coolant Tank Capacity: 26 gal
• Automatic Index Length Single: 19.68″
• Automatic Index Length Multiple: 177.16″
• Material Pass Line Height: 27-1/2″
• Floor Space Required: 97” x 88” x 66”
• Machine Weight: 5512 lbs

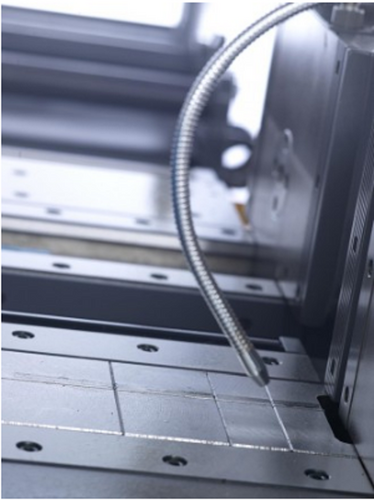

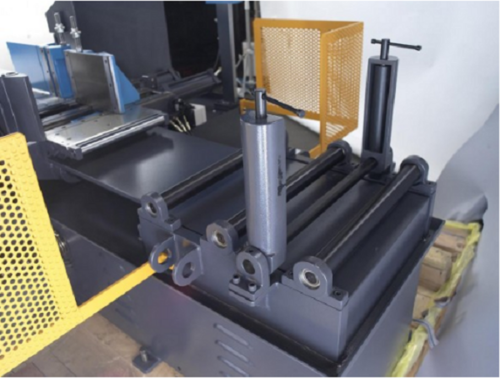

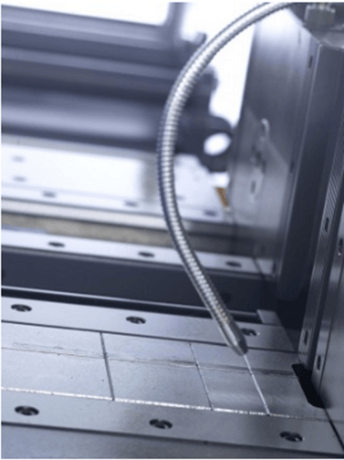

INCLUDES: Nesting Fixture for Bundle Cutting, Spring Loaded Zero Clearance Coolant Through Carbide Faced Saw Guide with Lead-In Rollers, Power Driven Coolant Flushed Blade Cleaning Wire Brush, Flushing Hose and Auxiliary Coolant Nozzles, Hydraulic Blade Tension, Automatic Chip Conveyor, Tool Kit, Complimentary DoALL Cutting Fluids Package, One DoALL Bi-Metal Saw Blade, Operation and Parts Manuals on CD or USB Data Stick.
