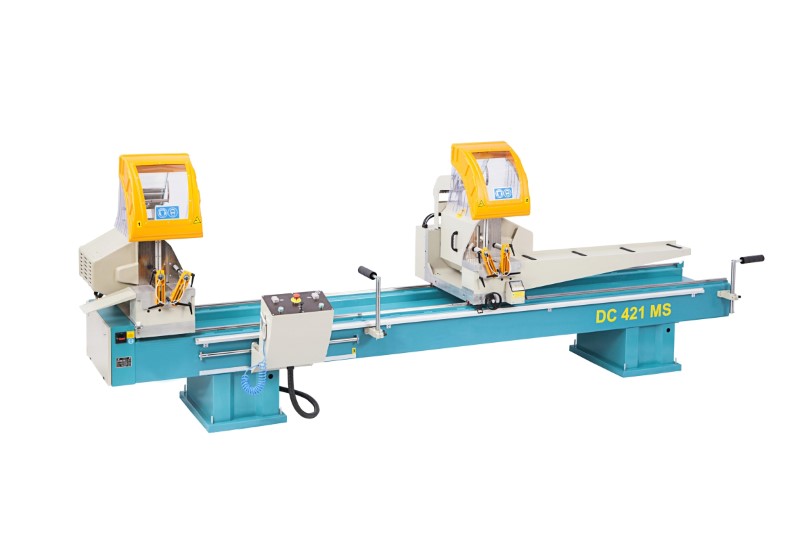

16-1/2" Atech #ZIGMA-02-SA, pneumatic double miter, (2) 16-1/2" diameter saw blades, max 164" at 90 degree straight cut, (2) 3 HP saw motors with 32 mm arbor, 2026, new

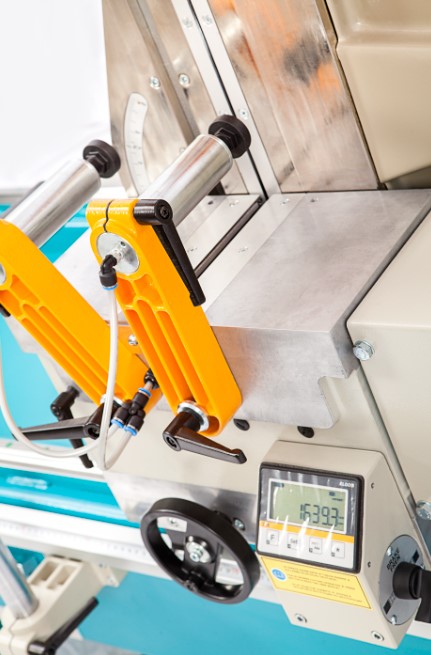

ATECH ZIGMA-02 SA Semi-Automatic Heavy Duty Miter Saw (Digital)(2) 16-1/2" Dia. saw blades; designed for straight or miter cutting of vinyl, aluminum and wood.Specifications: -- Cuts approx. 8" x 5" at 90, 5.7" x 5" at 45; min. 17" length, max 164" @ 45; min. 8" length; max 164" @ 90 straight cut. -- (2) 3 HP Saw motors with 32 mm arbor; forward movement of the saw is hydro-pneumatic, and its speed can be adjusted accurately for the frame material. -- The left saw head is fixed, while the right head is movable; manual adjustment of intermediate tilting angles from 90 to 45 inwards; fixed angle location points at 45 - 30 - 22.5 - 15 - 90inwards; the left cutting unit is fixed in position while the right cutting unit is moved manually to its cutting position. -- This right head has a safety brake so the machine will not run while the head release is open; pneumatic brake on the movable head to secure in position during the cut cycle. Complete with: -- (4) Horizontal hold-down clamps, pneumatically actuated with low pressure for safety; accurate length adjustment with a digital scale (+/- 0.2 mm); -- 16-1/2" Blades allow greater thickness cutting; -- Solid, heavily constructed cast Iron table top; heavy steel frame for vibration-free performance. Includes: -- Air gun, user's manual; (2) 16" dia. carbide-tipped blades (specify wood or metal).
