Description
Description
DELEM DA-69T, TOUCH SCREEN CNC CONTROLLER
TOTAL OF 6 AXIS (Y1, Y2, X, R,Z1, Z2) X:800 MM, R=250MM

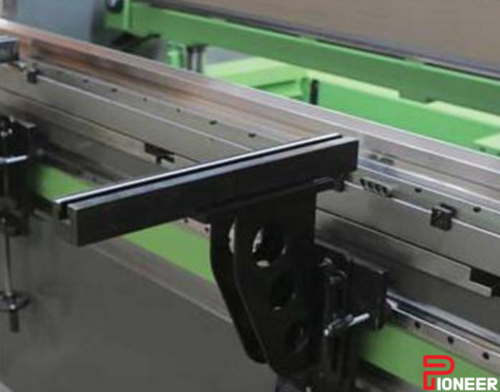

ERMAKSAN FOUR AXIS BACKGAUGE (X, R, Z1, Z2)
AMERICAN PROMECAM QUICK RELEASE
ROLLERI TOP TOOL ROLLERI - 0813/011/11
M460-R 4 V BOTTOM TOOL
275 (10,8") MM HIGH STROKE
410 (16") MM THROAT DEPTH
460 VOLTAGE, 3PH, 60HZ SINGLE VOLTAGE
LAZERSAFE LIGHT GUARD FOR FINGER PROTECTION
CNC CROWNING SYSTEM (ANTI-DEFLECTION)
BACK SIDE SAFETY - DOOR WITH SWITCH
SIDE GUARDS WITH SWITCH
DOUBLE FOOT PEDAL CONTROLLER
HOERBIGER SYSTEM
SIEMENS ELECTRIC SYSTEM
SLIDING FRONT SUPPORT ARMS
STANDARD TABLE
ENGLISH LABEL
ENGLISH MANUAL
Specifications
DELEM DA-69T, TOUCH SCREEN CNC CONTROLLER
TOTAL OF 6 AXIS (Y1, Y2, X, R,Z1, Z2) X:800 MM, R=250MM
ERMAKSAN FOUR AXIS BACKGAUGE (X, R, Z1, Z2)
AMERICAN PROMECAM QUICK RELEASE
ROLLERI TOP TOOL ROLLERI - 0813/011/11
M460-R 4 V BOTTOM TOOL
275 (10,8") MM HIGH STROKE
410 (16") MM THROAT DEPTH
460 VOLTAGE, 3PH, 60HZ SINGLE VOLTAGE
LAZERSAFE LIGHT GUARD FOR FINGER PROTECTION
CNC CROWNING SYSTEM (ANTI-DEFLECTION)
BACK SIDE SAFETY - DOOR WITH SWITCH
SIDE GUARDS WITH SWITCH
DOUBLE FOOT PEDAL CONTROLLER
HOERBIGER SYSTEM
SIEMENS ELECTRIC SYSTEM
SLIDING FRONT SUPPORT ARMS
STANDARD TABLE
ENGLISH LABEL
ENGLISH MANUAL
Specifications
| Tonnage | 150 T |
| Overall Length | 10' |
| Between Housings | 102" |
| Stroke | 10.8" |
| # Axis | 6 |
| Control | CNC (DELEM DA-66 Touch Screen CNC Controller) |
| Dimensions | 87" (W) x 107"(H) x 221"(L) |
| Weight | 20300 |
BENDING LENGTH ( A ) - 148"
MAX. POWER - 242 US TONS
MAX. BENDING CAPACITY (59748 psi) - 0.31"
AXIS NUMBER OF MACHINE - Y1, Y2, X, R, Z1, Z2
FREE DOWN SPEED - 7.09 in/s
BENDING SPEED - 0.39 in/s
RETURN BACK SPEED - 6.85 in/s
STROKE ( C ) (Y1, Y2) - 10.83"
BACK GAUGE STROKE (X AXIS) - 31.50"
BACK GAUGE STROKE (R AXIS) - 9.84"
DISTANCE BETWEEN HOUSING (B) - 127.95"
CROWING - MOTORIZED
THROAT DEPTH (E) - 16.14"
TABLE HEIGHT (F) - 35.43"
TABLE WIDTH (G) - 6.30"
DAYLIGHT (D) - 21.65"
PLANT VOLTAGE - 460V
IP - 54
MAIN MOTOR - 2x20.502 HP
BACK GAUGE MOTORS (X,R) - 2x2,4+2x1,27 Nm
PLANT TEMPERATURE - 0-50 oC
MAX. NOISE - 70 dB
OIL CAPACITY - 2x14.5 US GALLONS
MAX. PRESSURE - 4053 psi
MACHINE LENGTH (L) - 201"
MACHINE WIDTH (W) - 89"
MACHINE HEIGHT (H) - 114"
WEIGHT - 28101 lbs.
*WORKING SPEED MUST BE MAX. 10 mm / sec. AT CE
CERTIFIED MACHINES ACCORDING TO THE EN12622 NORM.
