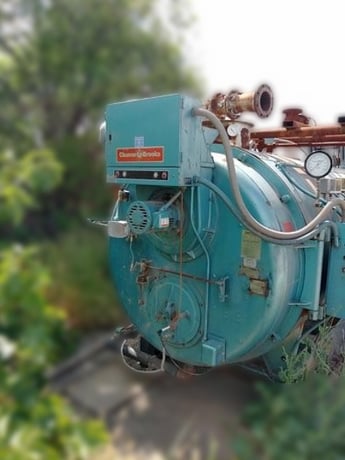

150 HP Cleaver-Brooks #CB700-150, Steam Boiler, Natural Gas, 150 psi, 5277000 BTU/hr., 460 V, 1984

Used Cleaver Brooks Steam Boiler 5,175 steam lbs/hr, 6,227,000 BTU/hr, Model CB700-150, 150 HP, MAWP 150 PSI, Fuel Natural Gas, Serial No L-79099, Boiler Weight 13,800 lbs, Built 1984
Cleaver Brooks 150 HP 150 PSI High Pressure Steam Boiler
Equipment Description
Manufacturer: Cleaver Brooks
Model: CB700-150
Boiler Horsepower: 150 HP
Boiler Type: Firetube Boiler
Fuel Type: Natural Gas
Design Pressure or Maximum Allowable Working Pressure: 150 PSI
Heating Capacity: 6,277,000 BTU/hr
Steam Capacity: 5,175 steam Lbs/hr
Year Built: 1984
Serial No: L-79099
GPH Oil: N/A

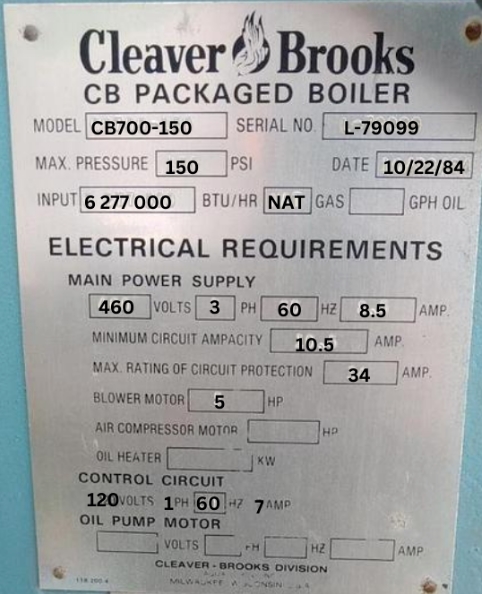

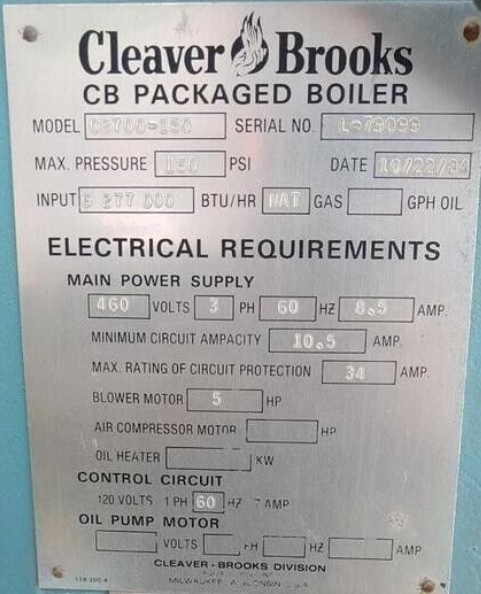

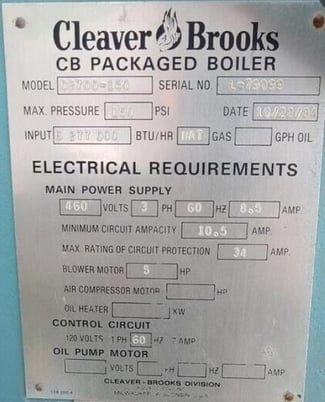

Electrical Requirements
Main Power Supply
Voltage: 460V
Phase: 3 PH
Hertz: 60Hz
Ampacity: 8.5 AMP
Minimum Circuit Ampacity: 10.5 AMP
Maximum Rating of Circuit Protection: 34 AMP
Blower Motor
Horsepower: 5 HP
Air Compressor Motor
Horsepower: N/A
Oil Heater: N/A

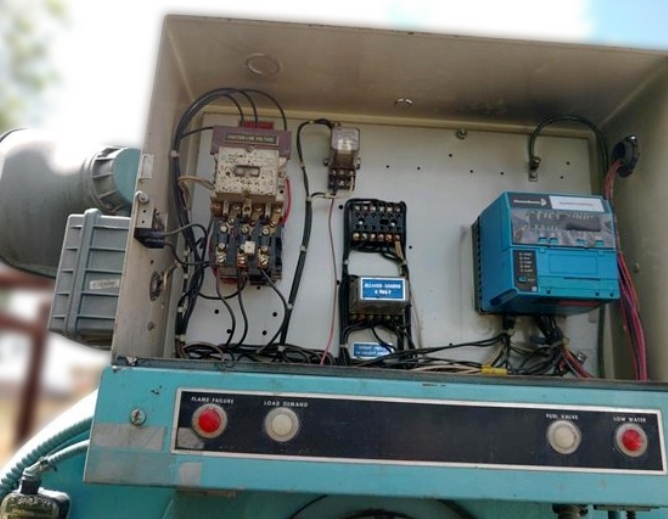

Control Circuit
Volts: 120V
Phase: 1 PH
Hertz: 60 HZ
Ampacity: 7 AMP
Oil Pump Motor
Volts: N/A
Phase: N/A
Hertz: N/A
Ampacity: N/A
Overall Dimensions
Length: 16.58 ft
Width: 7.08 ft
Height: 6.41 ft
Boiler Weight: 13,800 lbs
Location: California
