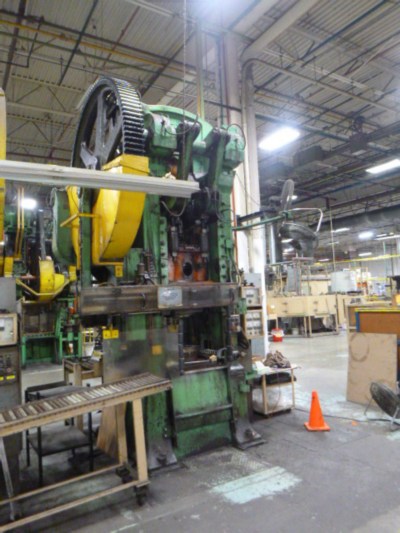

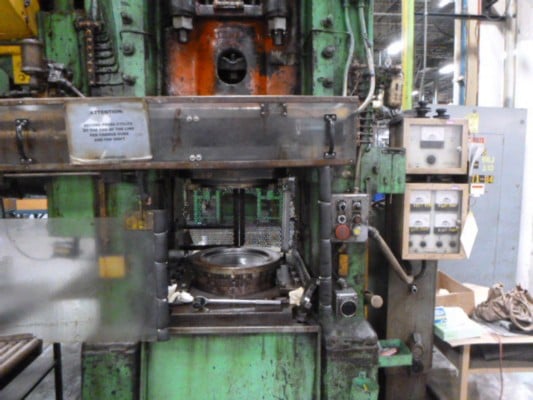

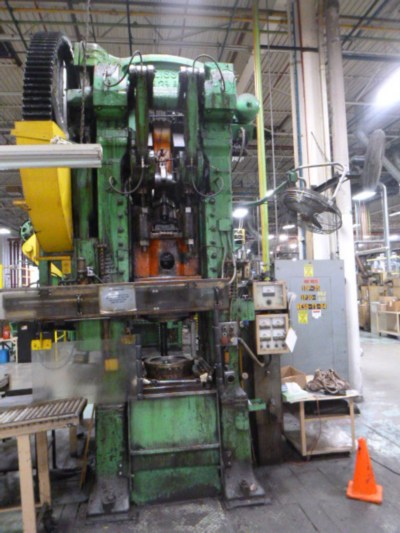

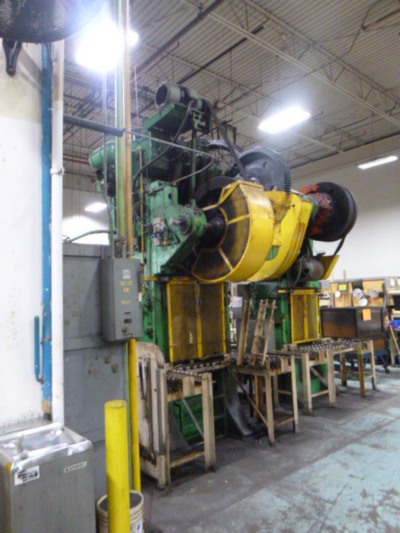

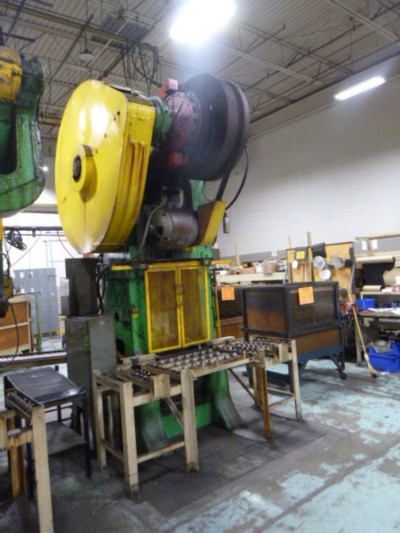

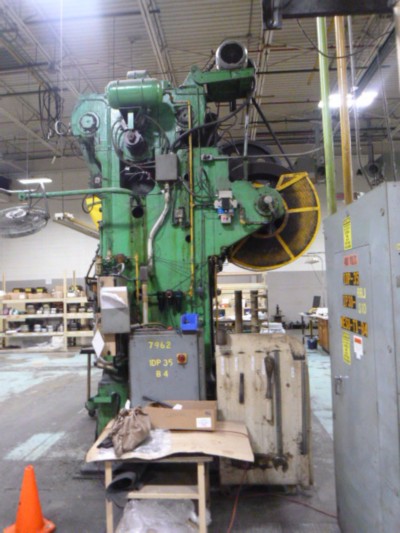

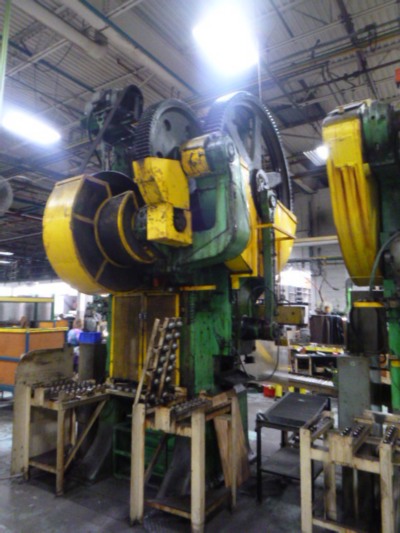

150/110 Ton, Bliss #3-3/4B, toggle press, 15"/22" stroke, 30" x 29" bed, 6" adjudtment, air clutch

MANUFACTURER - BLISS
TYPE - TOGGLE
MODEL NUMBER - 3 3/4B
PLUNGER CAPACITY - 150 TON
BLANKHOLDER CAPACITY - 110 TON
CRANKSHAFT DIAMETER - 6.5" - 7.5"
WILL DRAW IN DEPTH AND LIFT UP TO - 10.5"
STROKE OF BLANKHOLDER SLIDE - 15"
STROKE OF PLUNGER SLIDE - 22"
ADJUSTMENT BLANKHOLDER & PLUNGER - 6"
DISTANCE BETWEEN UPRIGHTS - 30"
BED AREA - FB X RL - 30" X 29"
BED OPENING DIAMETER - 19"
BLANKHOLDER AREA - FB X RL - 25" X 24"
BLANKHOLDER OPENING DIAMETER - 16"
DIE SPACE DISTANCE TO BLANKHOLDER STROKE DOWN ADJUSTMENT UP - 28"
DIE SPACE DITANCE BED TO PLUNGER STROKE DOWN ADJUSTMENT UP - 30"
DIAMETER OF THREADED STEM IN PUNCH SLIDE FOR DRAWING PUNCH - 2.5" - 4"
BOLSTER PLATE THICKNESS WITH T-SLOTS - 4.5"
REDUCED PLATE THICKNESS AND DIEMETER OF OPENING - 2 " - 8"
STROKES PER MINUTE - 13"
HEIGHT (BASE TO CENTER OF CRANK SHAFT) - 122"
OVERALL HEIGHT - 176"
FLOOR SPACE OVERAL - FB X RL - 97" X 84" APPROXIMATE
MOTOR - 15 HP
APPROXIMATE WEIGHT - 42,500 LBS.
INCUDES:
AIR CLUTCH
CONTROLS
MOTOR
ELECTRICS
