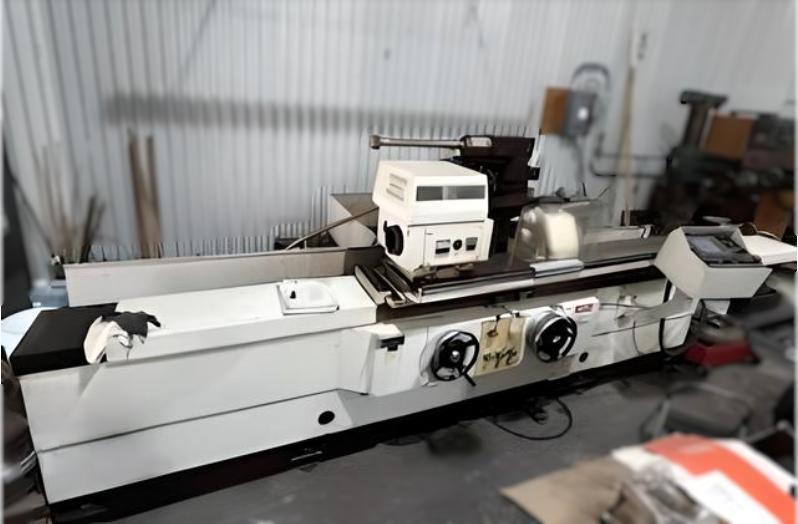

14" x 60" Chevalier #CG-1460A, automatic universal cylindrical grinder, 16" x 2" x 5" wheel, Mitsubishi Touch Screen PLC, 2000

Specifications:
Max Swing Over Bed
14.9 inches
Max Grinding Length
59 inches
Max O.D.
14.17 inches
Max Workpiece Weight
330 pounds
Variable Speed
25 to 350 RPM
Swiveling Angle
90 DEG. CCW
Spindle Center/Rotation
M.T.4/DEAD & LIVE
Spindle Table Speed
2 to 118 IPM
Table Handwheel per Revolution
0.39 inches
Table Swivel Angle (CCW/CW)
5 deg./5 deg.
Table Minimum Traverse Length
0.3 inches
Grinding Wheel
16" x 2" x 5"
Grinding Wheel Speed (Standard)
1,650 RPM
Maximum Infeed Travel
9.64 inches
Tailstock Quill Travel
1 inches
Wheelhead Motor
5HP A.C.
Dimensions
196" x 90" x 66"
Weight
12100 pounds
Equipped with:
Chevalier 14" x 60" Automatic Universal CG-1460A Cylindrical Grinder 2000 equipped with Mitsubishi Touch Screen PLC Control, Coolant System with Magnetic Seperator, Hydraulic Unit, Tailstock Mounted Dresser, Automatic Grinder Cycle (Rough Grind, Fine Grind, Sparkout, Return), Swing Down Internal Attachment

Short Terms and Conditions of Sale (Please contact us for complete Terms and Conditions): Unless otherwise posted, all items are sold AS-IS, WHERE-IS With All Faults. All specifications and locations are subject to change without notice. All items are subject to availability and prior sale.
