Description

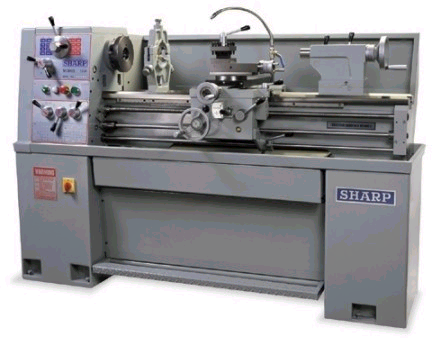

14" X 40" Capacity Manual Engine Lathe with 1,800 RPM 3HP, 2-Speed Gear Drive, D1-4 Camlock Spindle, 8" 3 Jaw Chuck, Gap Bed Frame, Single or 3 Phase Electrics, Coolant System Foot Brake and Tailstock.
STANDARD EQUIPMENT:
- 3-Jaw 8” Chuck
- Steady Rest (Capacity = ¼” – 3-3/4”)
- Coolant System
- 16 Speeds
- Full Length Splash Guard
- 4-Way Tool Post
- Removable Bed (GAP)
- 6” Diameter Backplate
- Tailstock
- Threading Dial
- Foot Brake
- Center Sleeve (MT #5 x #3)
- Dead Centers (MT #3)
- Tool Kit (includes: Machine Manual, Half Nut Wrench, Wrench 17m, 19m, Set of 6 Allen wrenches, Phillip Screwdriver, Flat Head Screwdriver, Oil can, Grease Gun, Rear Way Cover Bracket, Pin for Indicator, Can of Paint)
FEATURES:
- 14”x 40” Capacity
- 8-5/8” Over Cross Slide
- 16 Speeds - 45-1800 RPM
- “VS” Model can run single phase electrics
- D1-4 Camlock Spindle 1-1/2” Bore
- Gap Bed
- 3 HP Motor (2-Speed Motor)
- Hardened and Ground Bed Ways (Rockwell 50)
- Larger Compound, Tailstock, and Apron Allow Heavier Cutting with Less Vibration than Competitive Models Vari-Speed, All Geared Headstock Housed inside a Sturdy Cast Iron Base.
- All Geared Quick Change Headstock Housed in Sturdy Cast Iron Base
- Jog Button for Easy Gear Engagement and Inching Spindle
- Quick Change Gearbox Offers a Wide Range of Threads
SPECIFICATIONS:
Capacity
Swing Over Bed: 14”
Swing Over Cross Slide: 8-5/8”
Swing Over Gap: 20”
Width Of Bed: 8-1/2”
Width of Gap: 9.25”
Center Height from Top of Compound: 1.5”
Distance Between Centers: 40”
Headstock
Spindle Nose Type: D1-4 camlock
Spindle Bore: 1-1/2”
Spindle Speeds: 40-1,800 RPM
Taper of Spindle Bore: MT#5
Threads and Feeds
Longitudinal Feeds – in/rev (40): 0.0012 - 0.0294”
Cross Feeds – in / rev (40): 0.0003 –0.01”
Inch Threads (40): 4-112 tpi
Metric Threads (22): 0.45 – 7.5mm
Leadscrew Pitch, Diameter: 8 tpi, ”
Carriage
Saddle Width: 13.25”
Apron Width: 11”
Cross Slide Width: 6.75”
Cross Slide Travel: 7”
Compound Rest Travel: 4”
Compound Width x Length 3-1/2 x 8-1/2”
Bed
Bed Length: 66”
Bed Width: 8-1/8”
Tailstock
Quill Travel (graduated): 4-1/2”
Quill Diameter: 1-3/4”
Quill Taper: MT#3
General
Spindle Motor: 3 HP
Net Weight (approx.): 1,650 LBS
Standard Color: Gray
Dimensions: 77” x 29” x 55”
Electrical:
Voltage 220 3PH (440 volts optional)
Total Power Consumption 220V 3KVA/10 amps, 440V 3KVA/5 amps
***All Price, Location and Specifications Subject to Change without Notice***
MANY OPTIONS AVAILABLE TO CUSTOMIZE YOUR MACHINE - CALL FOR COMPLETE QUOTATION LISTING ALL AVAILABLE OPTIONS.
(Add 2 Axis Newall Digital Readout, Follower Rest, Chuck Guard with Limit Switch and Work Light for the complete package, ask for price! )
