Machinery & Equipment / Lathes - Engine / Engine Lathes
Create Alert

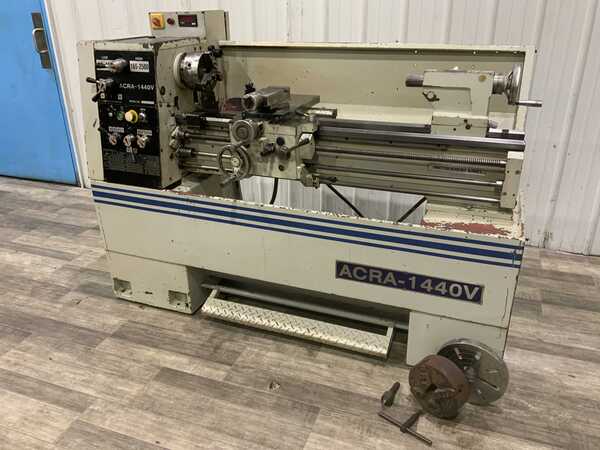

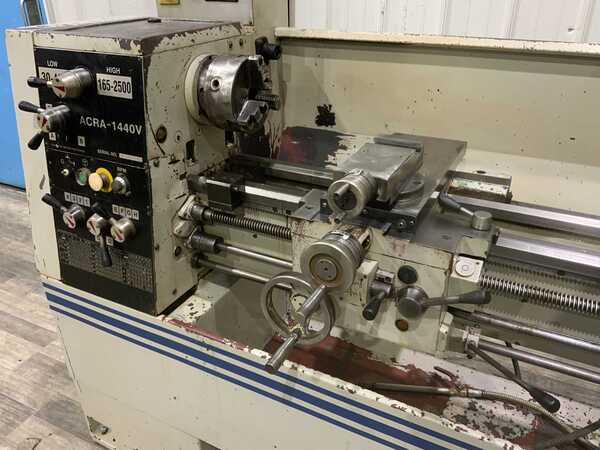

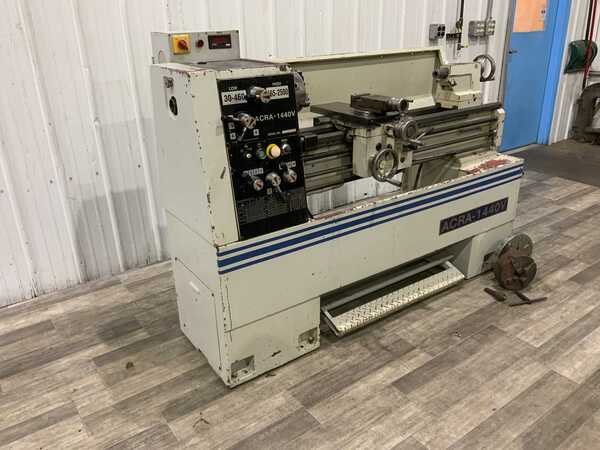

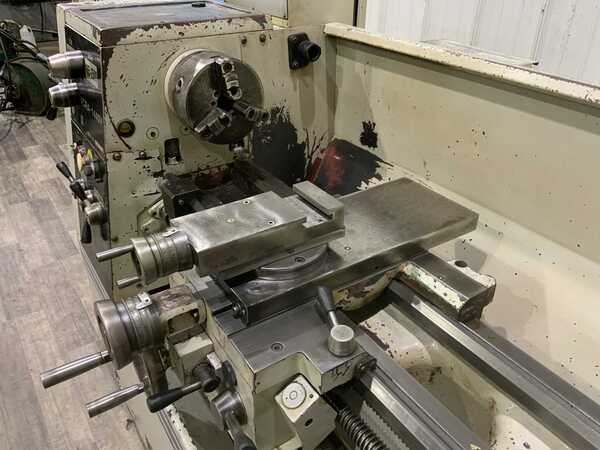

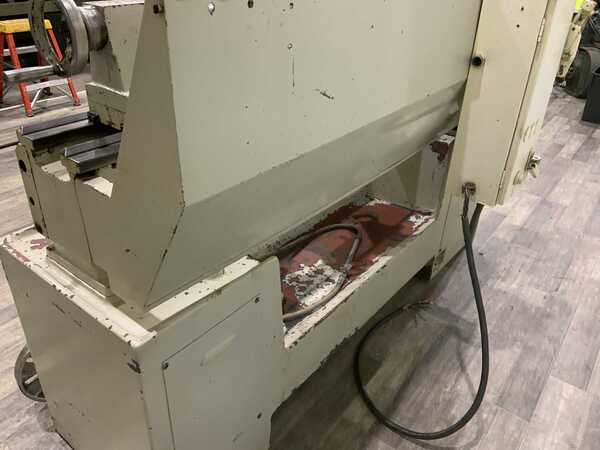

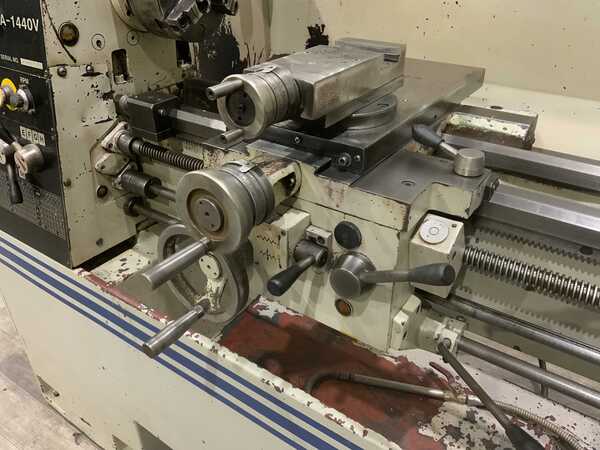

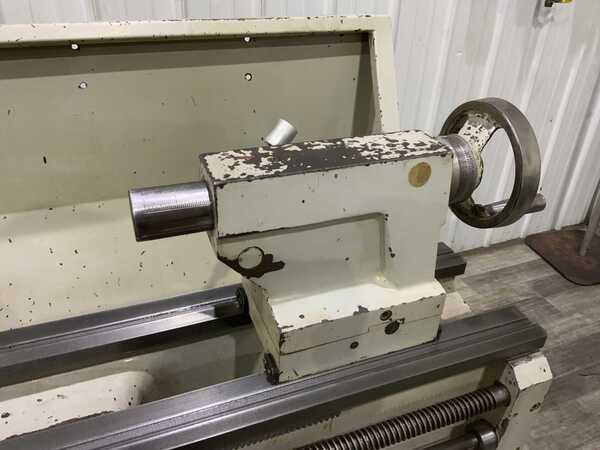

14" x 40" Acra #1440V, engine lathe, 8" swing over cross slide, inch/metric, 3-jaw 8" chuck, foot brake, thread dial, 2 HP

Manufacturer: Acra
Model: 1440V
Swing: 14.0
Centers: 40.0
Stock # 80615

For Sale by Yoder Machinery Sales

Platinum Level Dealer
Surplus Record Dealer Since 1960
  Sales
  866-69...> Show Seller's Phone Number 866-692-8933 Let the seller know you found their listing on Surplus Record!

Description

SERIAL ............................. 22061

MODEL .............................. 01440

SWING OVER WAYS .................... 14"

SWING OVER CROSS SLIDE ............. 8"

SWING IN GAP ....................... 22"

DISTANCE BETWEEN CENTERS ........... 40"

SPINDLE SPEEDS ..................... 30 TO 2500 RPM

DIAMETER OF SPINDLE HOLE ........... 1-1/2"

FEEDS LONGITUDINAL ................. .001 TO .256 IPR

THREADS (ENGLISH) .................. 1 TO 56 TPI

THREADS METRIC ..................... 0.4 TO 7 MM

CHUCK .............................. 8" 3 JAW

THREAD DIAL ........................ YES

FOOT BRAKE ......................... YES

HARDEN WAYS ........................ YES

FORWARD & REVERSING ................ YES

COOLANT ............................ YES

MOTOR .............................. 2 HORSEPOWER

Get Your Price from Yoder Machinery Sales!
