Abbott 14" x 120" Capco #A24120, roll grinder, 24" grinding wheel, 2024

REMANUFACTURED

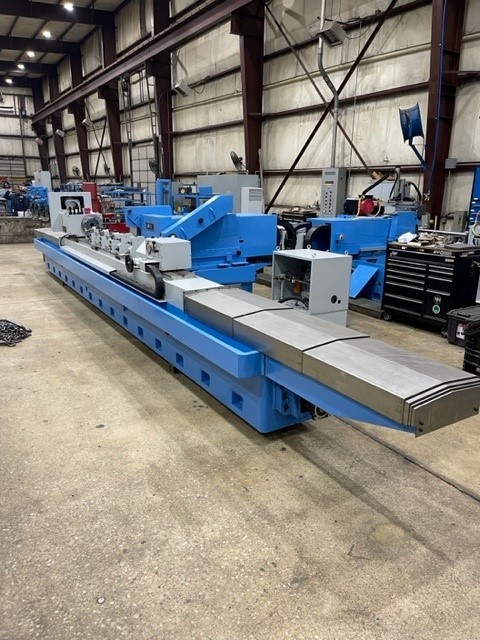

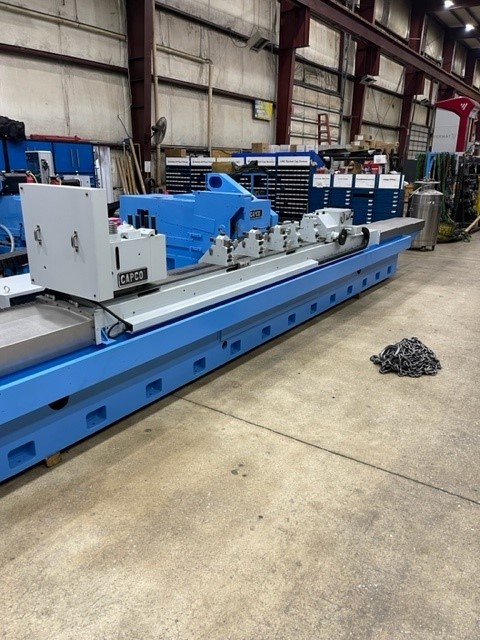

14” x 120” CAPCO ROLL GRINDER

Specifications

Swing over table: 14”

Maximum swing over table: 15”

Minimum diameter machine will grind: 0

Distance between centers: 120”

Maximum weight between centers: 1322 lbs.

Wheelhead

Maximum grinding wheel: 24”

Grinding wheel spindle speeds: 0-1800 rpm

Grinding wheel motor Fanuc AC Vector

Grinding Wheel Drive Fanuc AC Vector

Headstock

Number of spindle speeds: Infinite

Range of spindle speeds: 0 – 300 rpm

Taper hole in spindle:

Workhead motor Fanuc AC Vector

Workhead Drive Fanuc AC Vector

Infeed:

Wheelhead infeed motor Fanuc AC Digital Servo

Grinding Carriage (Table):

Type 1 Piece

Traverse motor Fanuc AC Digital Servo

Traverse speeds 0 - 200 IPM

Ballscrew

Footstock

Taper hole spindle:

Tailstock mount dresser

Power Requirements:

Base machine as described herein 480/3/60, approx. 100amp.
