Description
Description:

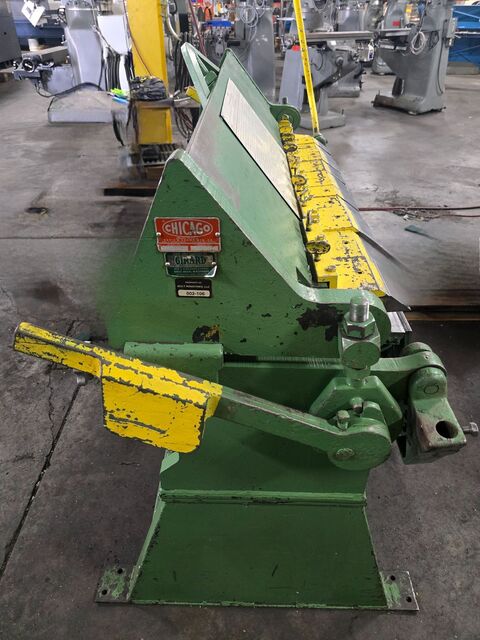

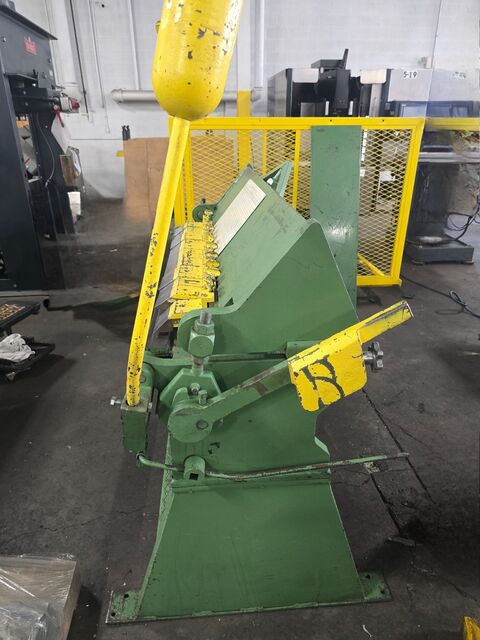

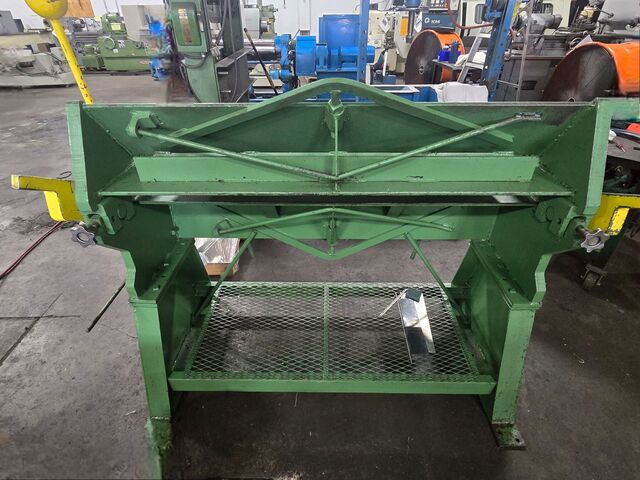

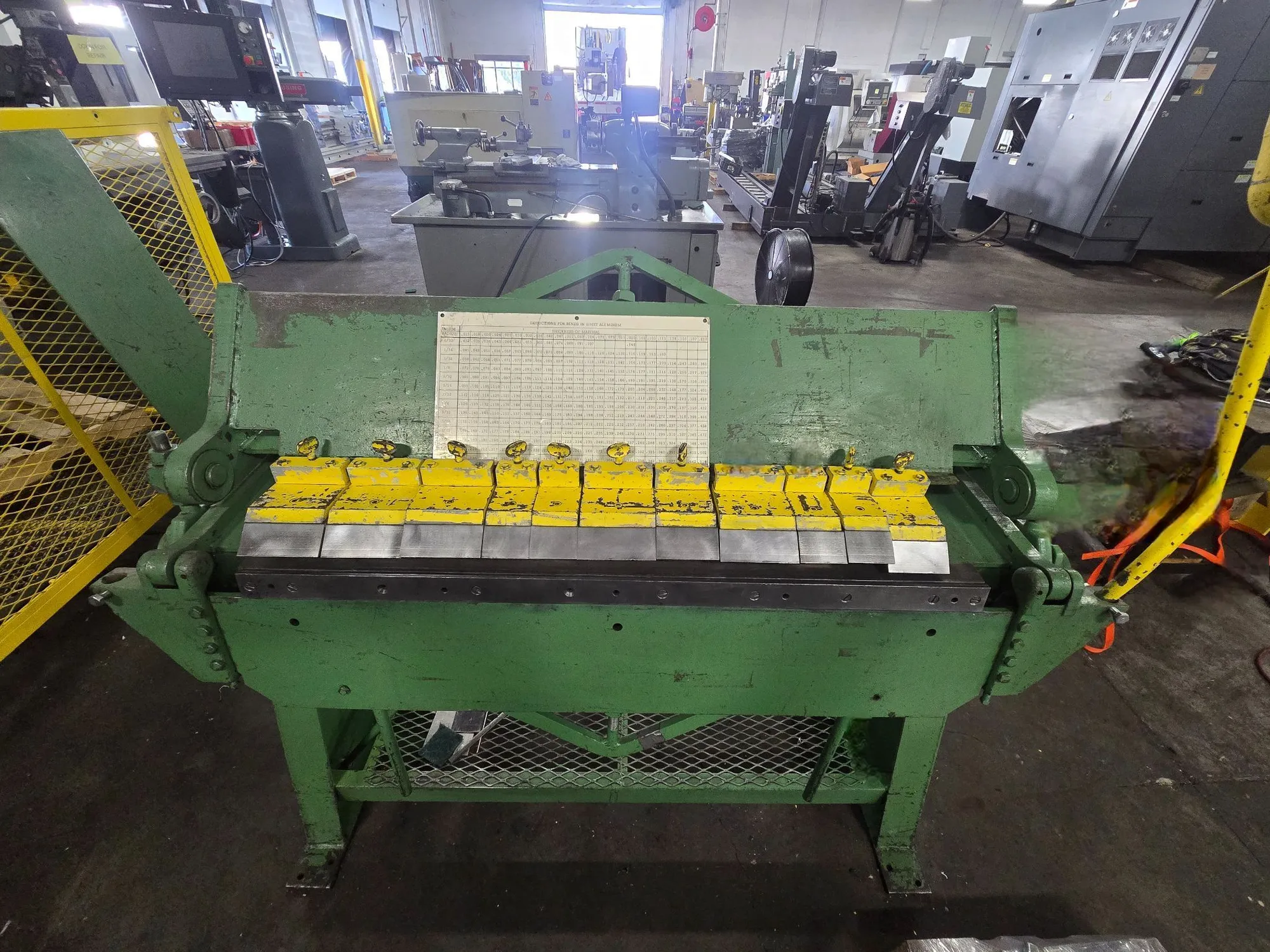

Enhance your metalworking capabilities with the Chicago Dreis & Krump BPO-414-6 Box & Pan Brake. This used model features a 48" bending capacity for 14 gauge sheet metal and comes complete with box & pan finger assemblies. Perfect for intricate bends!
Spec Sheet:
The Chicago Dreis & Krump BPO-414-6 is a box and pan finger brake, designed for bending sheet metal.
Here's a summary of its key specifications:
Bending Length: 4 feet (48 inches).
Bending Capacity: 14 gauge mild steel. Note that capacity can be affected by the reinforcing angle bar (SS) position and the thickness of the insert bar used. Removing the angle bar reduces capacity by four gauges, and using a thinner insert bar (1/4") reduces it by seven gauges.
Dimensions (Approximate): 70" L x 32" W x 50" H, 90" x 53" x 60" H (shipping dimensions). 102" L-R x 36" F-B x 61" H.
Weight (Approximate): 2000 lbs. 2065 lbs (shipping weight).
Additional details
This model is designed for bending a box or pan of one piece of metal, including the four sides and bottom.
It can also be used to make narrow flanges on the top of boxes.
It comes with a full set of box & pan finger assemblies, including removable nose bars.
It can be fitted with special nose bars (such as radius types) for different bends.
Enhance your metalworking capabilities with the Chicago Dreis & Krump BPO-414-6 Box & Pan Brake. This used model features a 48" bending capacity for 14 gauge sheet metal and comes complete with box & pan finger assemblies. Perfect for intricate bends!
Spec Sheet:
The Chicago Dreis & Krump BPO-414-6 is a box and pan finger brake, designed for bending sheet metal.
Here's a summary of its key specifications:
Bending Length: 4 feet (48 inches).
Bending Capacity: 14 gauge mild steel. Note that capacity can be affected by the reinforcing angle bar (SS) position and the thickness of the insert bar used. Removing the angle bar reduces capacity by four gauges, and using a thinner insert bar (1/4") reduces it by seven gauges.
Dimensions (Approximate): 70" L x 32" W x 50" H, 90" x 53" x 60" H (shipping dimensions). 102" L-R x 36" F-B x 61" H.
Weight (Approximate): 2000 lbs. 2065 lbs (shipping weight).
Additional details
This model is designed for bending a box or pan of one piece of metal, including the four sides and bottom.
It can also be used to make narrow flanges on the top of boxes.
It comes with a full set of box & pan finger assemblies, including removable nose bars.
It can be fitted with special nose bars (such as radius types) for different bends.
Inquire Further with Machinery Central!
Buyers Who Viewed This Listing Also Viewed …
14 gauge x 4' Chicago Dries & Krump #BPO-414-6, Box & Pan Brake
Category: Sheet Metal Box and Pan Brakes
Seller: Smith Machinery Co
Location: Ames, IA
Mfr: Chicago
Model: BPO-414-6
Capacity 4 feet Capacity (ga) 14 Fingers (11) 6" long.
JUST ADDED!
14 gauge x 4' Brown & Boggs #144F, floor type box & pan brake, 6" box depth, variable fingers
Category: Sheet Metal Box and Pan Brakes
Seller: Westway Machinery Ltd
Location: Mississauga, ON
Mfr: Brown & Boggs
Model: 144F
MODEL: 144F, SERIAL #: 70205, CAPACITY – MILD STEEL: 4’ x 14 GAUGE, CAPACITY – STAINLESS STEEL: 4’ x 18 GAUGE, OVERALL BENDING LENGTH: 48”, CLEARANCE THRU TOP OPENING: 1-5/8”, MIN.REVERSE BEND: ¼”, MAXIMUM BEND ANGLE: 135 degrees, BOX DEPTH: 6”, FINGERS: ...more
14 gauge x 4' Dreis & Krump #W34, box & pan brake, 6" finger extension, full set of fingers
Category: Sheet Metal Box and Pan Brakes
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Dreis & Krump
Model: W34
SERIAL.#64456, MODEL. #W34, LENGTH OF BEND. 48", CAPACITY. 14 GA, FINGER EXTENSION. 6", FULL SET OF FINGERS. YES.
JUST ADDED!

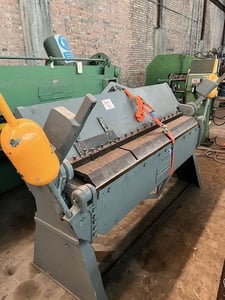

14 gauge x 6' Dreis & Krump (Oliver) Universal Hand Box & Pan Brake, full set of 6" fingers, excellent
