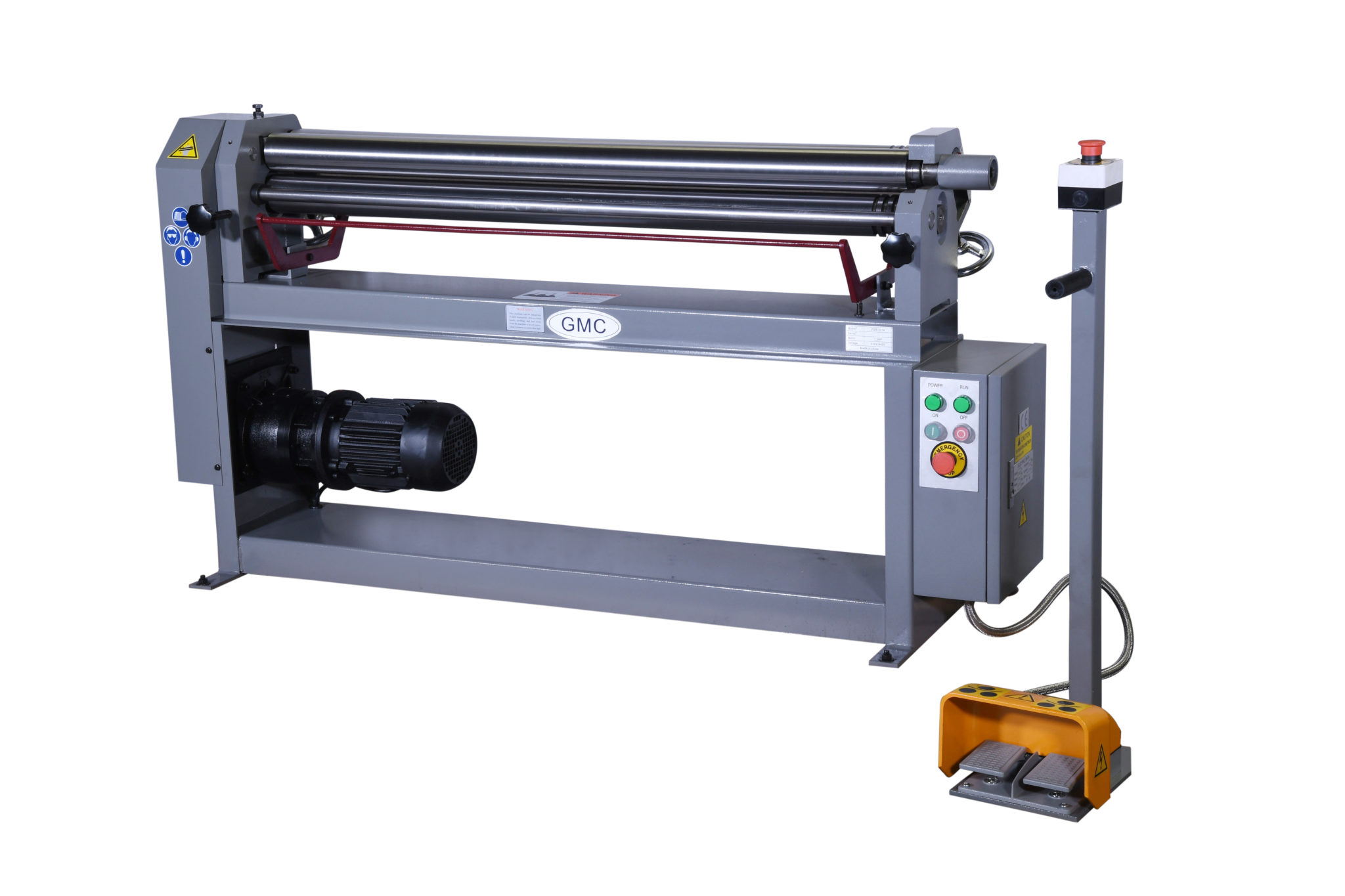

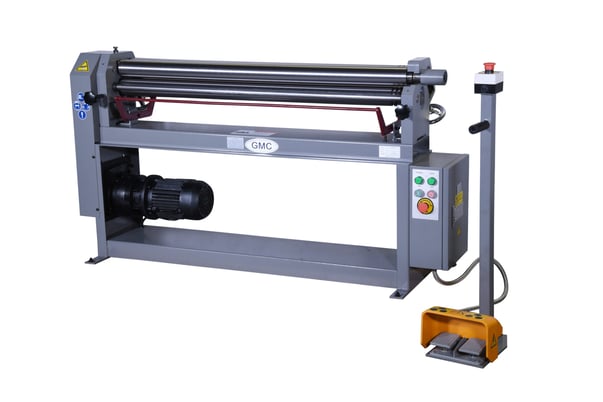

GMC 50″ x 14 Gauge PSR-5014 Power Slip Roll
Inventory # 7059
Model: PSR-5014 (Three Phase)
Specifications:
Capacity:
Rolling capacity: 50” x 14 Ga. (mild steel)
Stainless steel: 50” x 18 Ga.
Min. thickness capacity: 50″ 22 Ga.
Rolls size (length x diameter): 50”x 3”
Min. roll bending dia. capacity: 3 1/2”
Rolls speed: 201” / min.
Rolls opening: 1/4″
(3) grooves sizes: 5/16”, 3/8” , 1/2″
Motor: 1.5 HP / 220v, 440v / 3ph (Please Specify Desired Voltage at Time of Order)
Features:
Heavy welded all steel construction for maximum rigidity
Silence electrical motor
Quick release top roller
Two rolls are driven
Precision ground rollers
All three rolls are made of high grade alloy steel, hardened up to 50 HRC
All rolls run forward and reverse
Safety type removable foot pedal
Overload protection and disconnect switch
Standard Equipment:
Electrical cabinet
Removable safety foot pedal
Mechanical Specifications:
Dimensions: 68″ x 29″ x 48″
Weight: approx. 928 lbs.
FOB Factory – Contact us for availability
