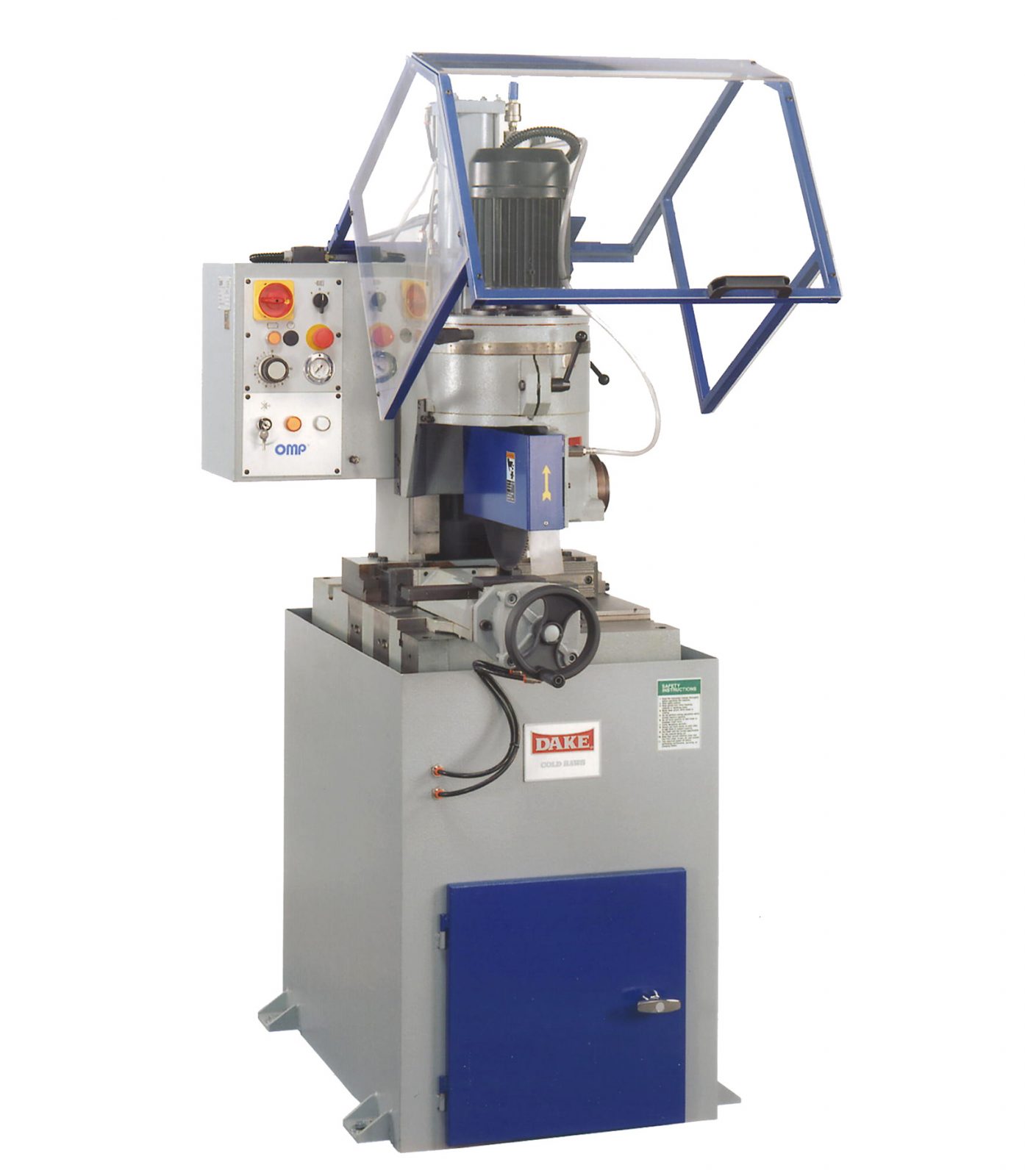

14.5" Dake #370S, Semi-Automatic Cold Saw, 8.75" Vise Opening, 25/50 RPM, 35" Work Height, 3.5/4.5 HP, 220/440 V, new

Description

Dake 14 1/2″ “Euromatic” Semi-Automatic Cold Saw, 370S

Inventory # 8462

Model: 370S

P/N: 976200-2

Description:

Semi-automatic ferrous saw that’s user friendly for set up and operation. Featuring two removable surface wear plates,
heads that rotate 45° and 90° left/right, three gib guides, a manual oiler, and a self-adjusting metal chip brush

Specifications:

Capacity:

Solid Round:

@ 90°: 4 1/4″

@ 45°: 3 5/8″

Tube:

@ 90°: 5 1/16″

@ 45°: 5″

Square:

@ 90°: 4 1/4″

@ 45°: 3 7/8″

Rectangle:

@ 90°: 4″ x 7″

@ 45°: 4″ x 6″

Cutting Ability: Ferrous / Non-Ferrous / Plastic

Max. Blade Diameter: 14 1/2″

Max. Vise Opening: 8 3/4″

Max. Angle: 45° / 90°

Slotting: Yes

Speeds: 25 / 50 RPM

Work Height: 35″

Motor: 3.5 HP, 4.5 HP / 220v, 440v / 3ph

Standard Features:

Head rotates 45° right of center for miter cutting and up to 90° left of center for miter cutting and slotting

Outboard section of the table is designed so shorter lengths tumble down a mesh discharge chute

Manual oiler to lubricate 1″ thick, hardened vertical ways

3.5/4.5 HP motor has the muscle to drive a 14 1/2″ or 12″ blade quickly and quietly through solids

Clear acrylic hood has shock assists for raising and lowering and electrical interlocks

Table features two removeable surface wear plates to support longer cut lengths

Three gib guides for cutting head with two adjustable cas iron gib blocks in each for increased cutting accuracy and easy
adjustment

Rear surface of the gearbox is machined with interlocking circles to evenly distribute oil over the ways

Large automatic clamping vise features adjustable gib guides, removable face plates, and an anti-burr arm

Self-adjusting, metal chip brush fills removeable chip drawer

Ability to add a programmable feed system to make fully automatic with wide range of capabilities

Swap cutting head to gain non-ferrous/ferrous option on same saw

Standard Equipment:

Blade

Coolant

Saw Blade Selector Calculator

Tools Kit for Changing Blades

Instruction and Service Manual

Adjustable Positive Stop

Mechanical Specifications:

Dimensions: 28″ x 39″ x 73″ H

Weight: approx. 1,360 lbs.

FOB Factory – Contact us for Availability
