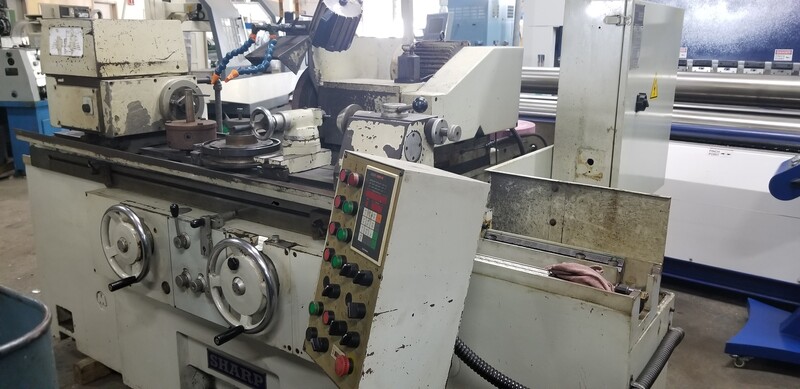

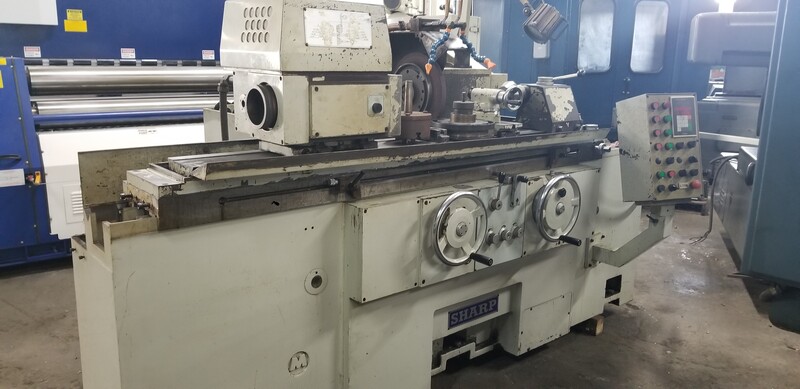

12" x 40" Sharp #AD-1240A, universal cylindrical grinder, Mitsubishi MEL SEC F2-30GM-DU Control, 1998

1998 SHARP AD-1240A
SPECIFICATIONS:
Swing........................ 12"
Centers...................... 40"
Power........................ 5 hp
Workhead Power............... 2 hp
Workhead Speed............... 920 RPM
Grinding Wheel Dia........... 18"
Max Weight Between Centers... 330 lb
EQUIPPED WITH:
12" x 40"cc UNIVERSAL CYLINDRICAL GRINDER

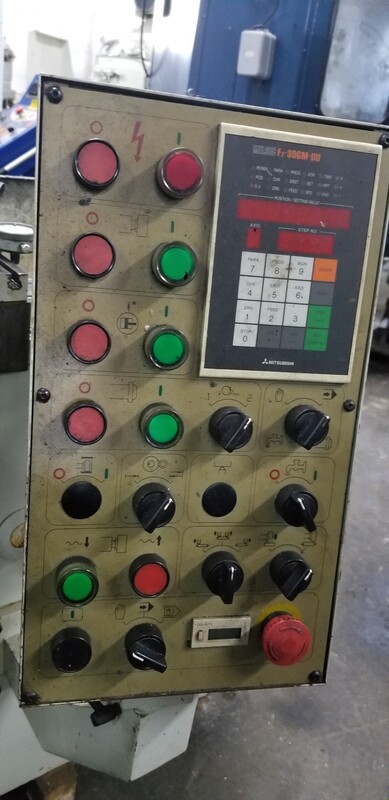

WITH MITSUBISHI MEL SEC F2-30GM-DU CONTROL
MAXIMUM SWING 12"
DISTANCE BETWEEN CENTERS 40"
MAXIMUM WORKPIECE WEIGHT BETWEEN CENTERS APPROX. 330lbs..
WHEELHEAD SWIVELS LEFT & RIGHT OF CENTER (+ or -) 30 degrees
INFEED TRAVEL 19.45"
HAND FEED TRAVEL 7.8"
AUTO INCREMENT INFEED (C MODELS) 0.00005" - 0.999"
WHEELHEAD HANDWHEEL PER DIVISION .00025"/.0005"
HANDWHEEL PER REVOLUTION 0.1"
WHEELHEAD INFEED PER REVOLUTION OF HANDWHEEL 0.05"
GRINDING WHEEL SIZE 18" x 2" x 8"
GRINDING WHEEL SPINDLE SPEED 1,650 R.P.M.
TABLE SWIVELS (+ or -) 7 degrees
TABLE TRAVERSE SPEED, INFINITELY VARIABLE 1.2 - 275 I.P.M.
TABLE HANDWHEEL PER REVOLUTION 0.50"
WORKHEAD SWIVELING ANGLE (R & L) 90 DEGREES
WORKHEAD CENTER TAPER #4MT
WORKHEAD SPINDLE SPEEDS (16 STEPS) 20 - 920 RPM
TAILSTOCK CENTER TAPER #4MT
TAILSTOCK QUILL TRAVEL 1"
WHEEL SPINDLE MOTOR 5 HP
WORKHEAD MOTOR 2 HP
HYDRAULIC PUMP 2 HP
COOLANT PUMP 1/4 HP
3 JAW CHUCK
SWIVEL DRESSER
CENTERS
WHEEL BALANCING STAND WITH ARBOR
MACHINE WIRED FOR 220 VOLTS/3 PHASE
NET WEIGHT 8,500 LBS.
PACKING DIMENSIONS 136" x 89" x 77"
