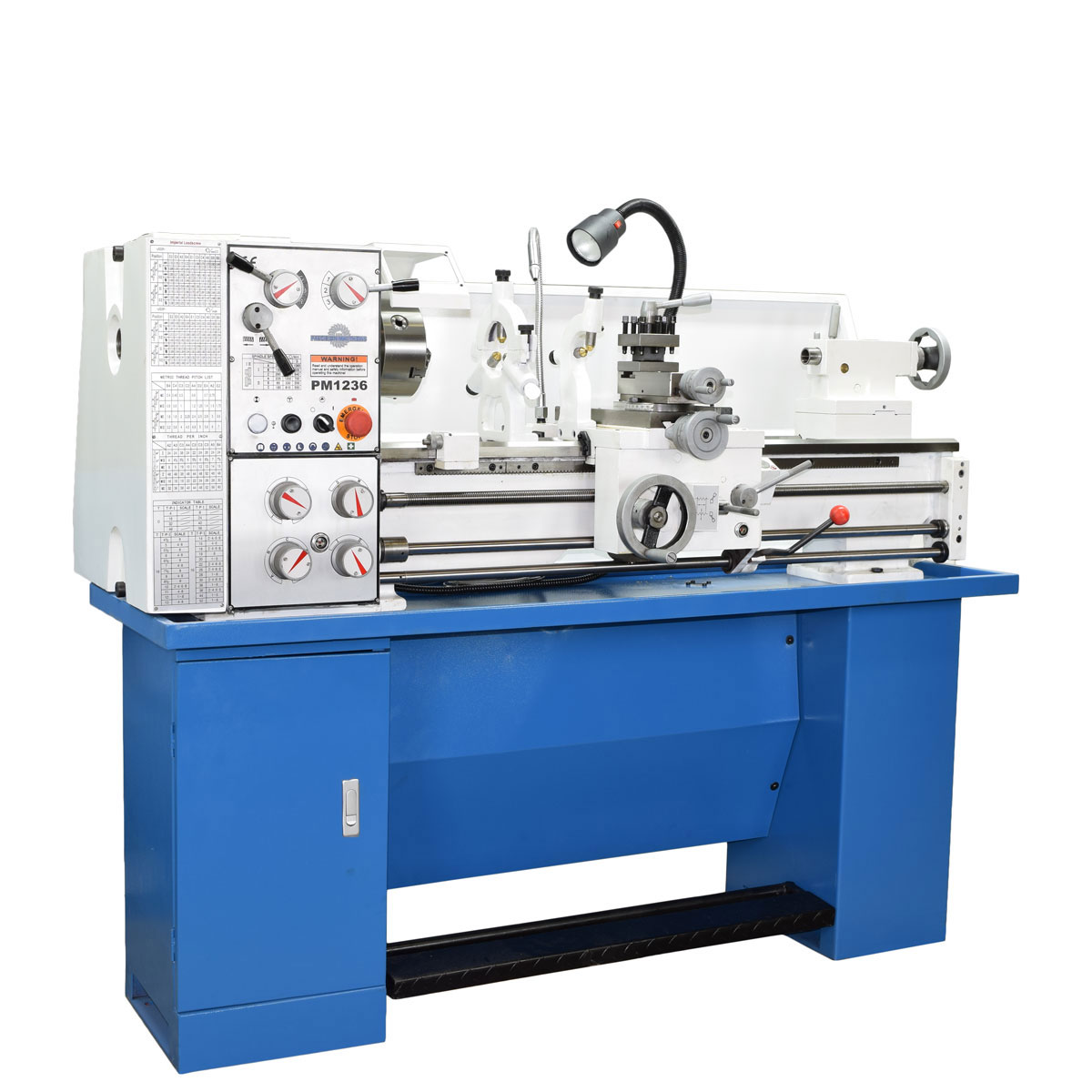

12" x 36" Precision Matthews #PM-1236, precision lathe w/ stand

Main Specifications PM-1236-PEP and PM-1236-PEP-w/DRO:

• Swing Over Bed 12″
• Swing Over Cross Slide 7″
• Swing in Gap 17-11/16″
• Distance Between Centers 36″
• Width of Bed 7-1/16″
• Spindle Bore 1-1/2″
• Spindle Nose Mount D1-4, Camlock
• Taper of Spindle Bore MT 5
• Range of Spindle Speeds 65-1800 RPM 18 steps
• Tailstock Taper MT 3
• Inch Threads 4-60 TPI, Choice of 36 Threads
• Metric Thread Pitch 04-7.0 mm, Choice of 32 Threads
• Travel of Cross Slide 6-1/8″
• Max. Travel of Compound 3″
• Tailstock Quill Travel 4″
• Motor 220 volt, 2hp, 1 phase
• Cord Connection/Type: Cord approx. 5′ length, User to supply plug needed for your outlet (20A 240V With Ground, No Neutral Required)
• Country of Origin: China
• Net Weight , Approx. 1250 lbs (1450 LBS with cast iron base option)
• Dimensions: 61″L X 18″ Deep at the chip pan, overall machine with cross slide handle, 26″
• Height: Approx. 55″ Tall with stand, 45″ to the spindle centerline
• Spindle Length, from chuck mounting face to end of spindle 15-5/8″

Additional Specifications:

• Spindle O.D. at outboard end, approx. 1.885″

Main Features of this model:

• D1-4 Camlock Spindle Mount for quick chuck changes
• Feed Rod Clutch is now standard, to allow Micro Carriage Stop use with feed, and extra safety safety margin in case of overloading
• Many Accessories Included as Standard, see list to compare with other lathes in this size range
• LED Work Light Available
• Base Is Included – NEW Cast Iron Base Upgrade available, gain extra rigidity and vibration dampening with this option
• Inch and Metric Reading Dials are standard
• Wide Speed Range, 18 Steps from 65-1810 RPM
• Induction Hardened and Ground Ways and Gears, for Extremely
  Long Service Life
• High Precision, Adjustable Tapered Roller Bearings Used on the Spindle,
  Ball Bearings Used on All Other Shafts in the Headstock
• Best Available Threading/Feedbox Design, In an oil bath, for Easier, More
  Reliable Feed/Thread Changes, and Much Longer Life
• Geared Head for Easy and Quick Speed Changes
• 3 Year Warranty

Package Options:

#1 PM-1236 Standard Package (PM-1236-Std) NOTE: Currently **NOT** Stocking this Model.

• 6″ 3 Jaw Chuck with Inside and Outside Jaws
• 8″ 4 Jaw Chuck with Reversible Jaws
• 10″ Face Plate
• Steady Rest
• Follow Rest
• Back Splash Guard
• Inch and Metric Threading Capability
• Thread Chasing Dial
• Complete Steel Base with Chip Pan
• 4 Way Tool Post
• Dead Centers
• 3 Year Warranty

#2 PM-1236 Preferred Package (PM-1236 Preferred Package)

Includes everything as listed above in the #1 Standard Package, plus:

• Wedge Type Quick Change Tool Post Set with 5 Holders, (This set is BXA / 200 Size)
• Clutch on Feed Rod, for use with Micrometer Carriage Stop *NEW*
• Micrometer Carriage Stop
• Foot Brake
• Coolant System
• L.E.D. Work Light – No more bulbs to change!

#3 PM-1236 Preferred Package With DRO (PM-1236 Preferred Package w/DRO Installed)

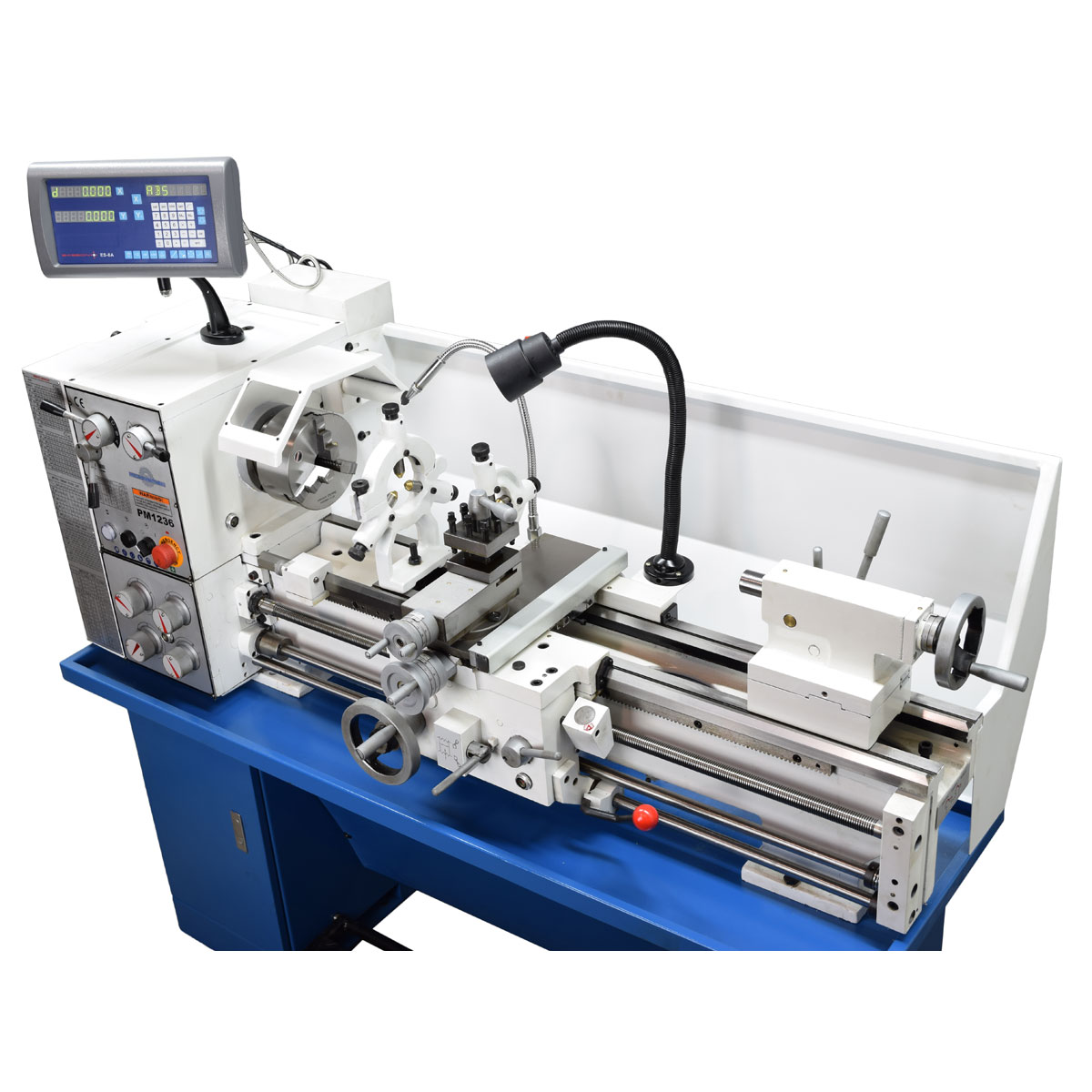

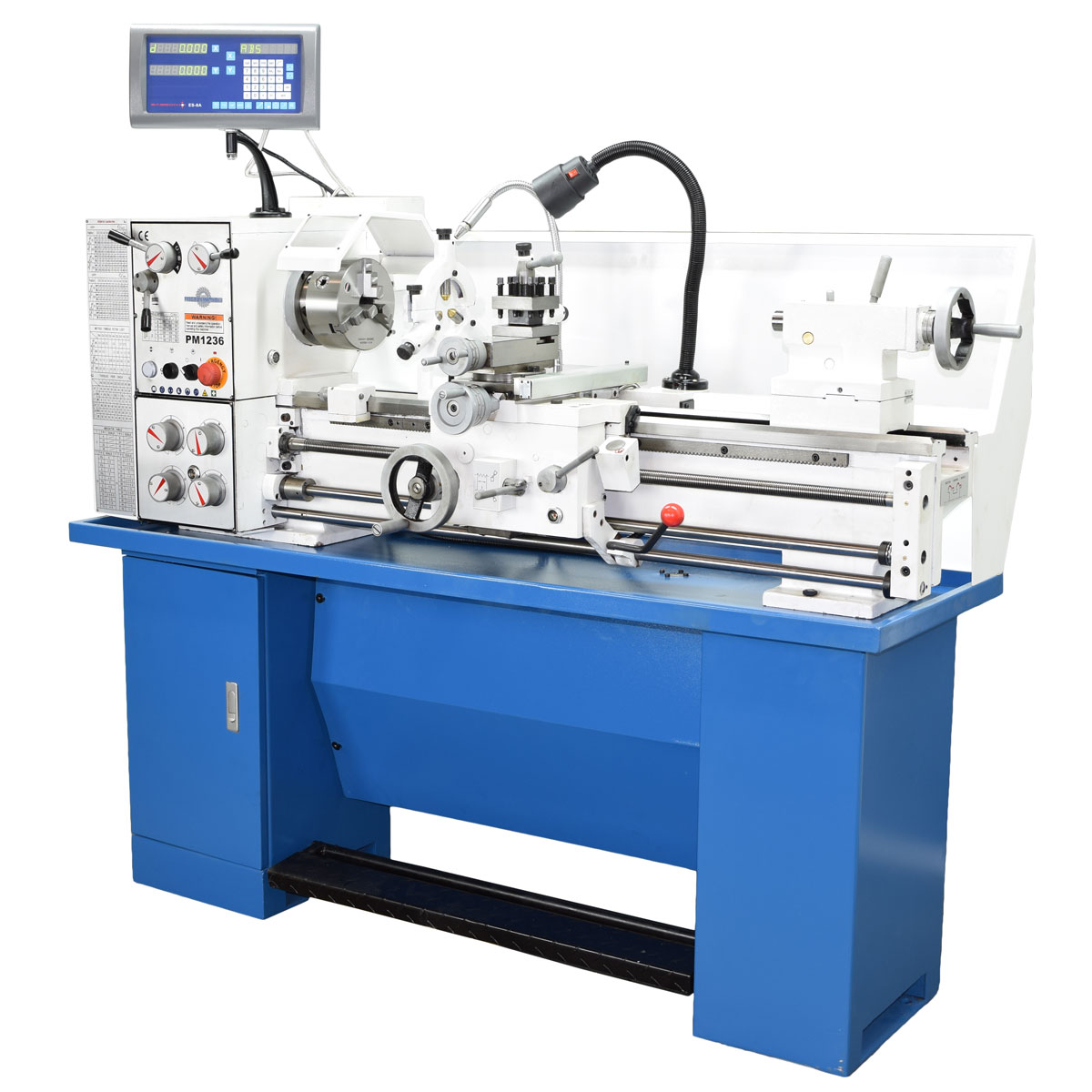

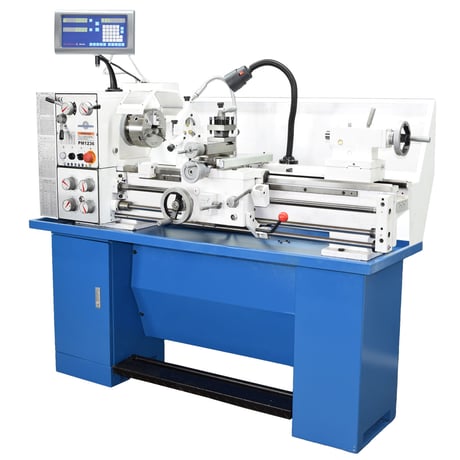

• Includes everything in #2 above, PLUS 2 axis Digital Readout, Installed on the machine (Optional DRO Pictured below)
