For Sale by Mohawk Machinery Inc
Surplus Record Dealer Since 1956
Mr. Secord
513-77...> Show Seller's Phone Number 513-771-1952 Let the seller know you found their listing on Surplus Record!
Description

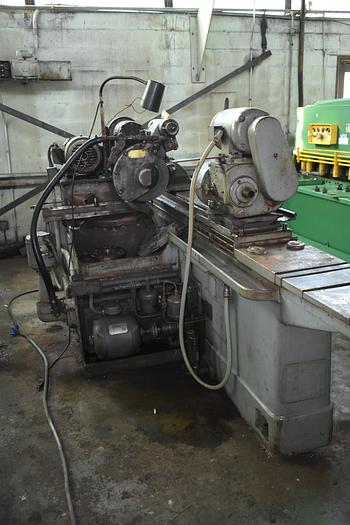

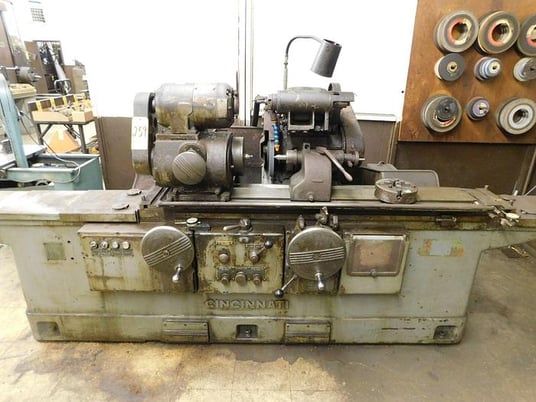

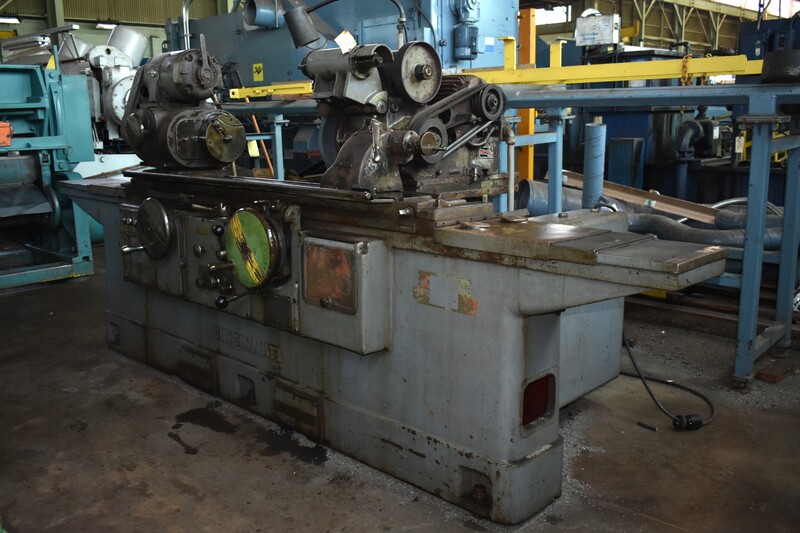

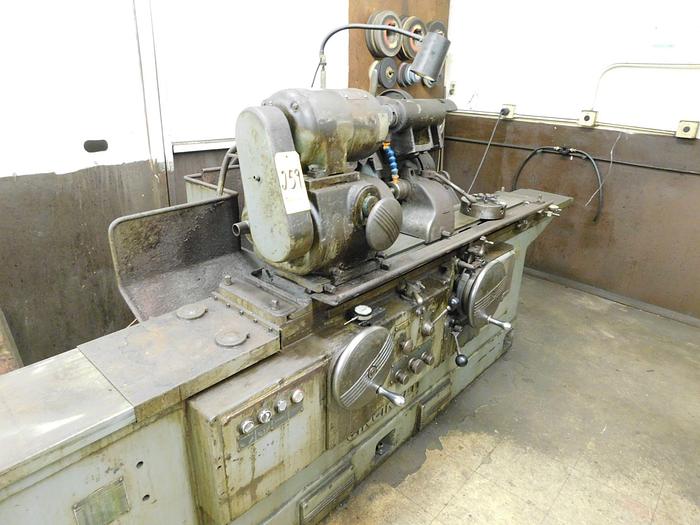

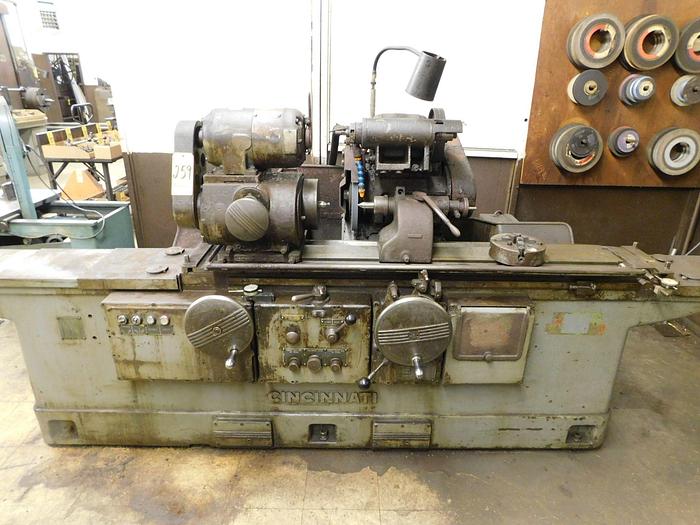

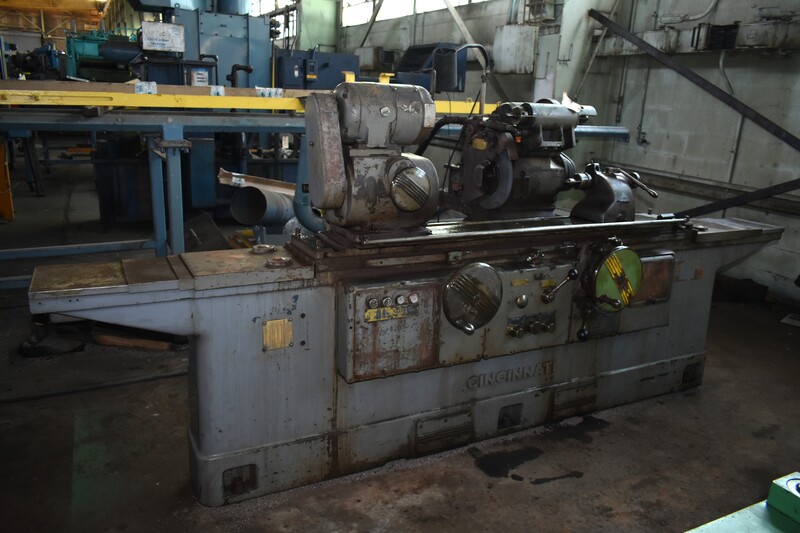

12" x 36" CINCINNATI-MILACRON UNIVERSAL
CYLINDRICAL GRINDER w/INTERNAL ATTACHMENT
Serial No 2U3D5B-22, Model LL
12" x 36" CINCINNATI-MILACRON UNIVERSAL
CYLINDRICAL GRINDER w/INTERNAL ATTACHMENT
Serial No 2U3D5B-22, Model LL
EQUIPPED WITH:

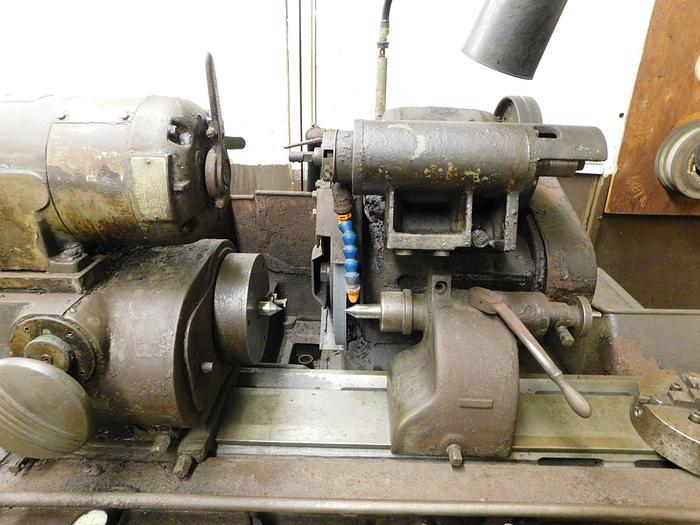

Swing Down Internal Grinding Spindle Attachment

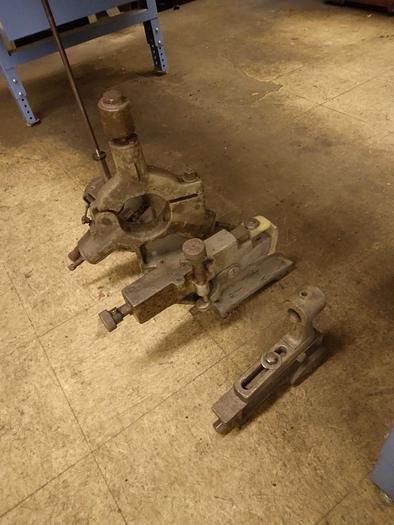

8: 4-Jaw Chuck w/Jaws - Steady Rest
Follow Rest - Table Mounted Wheel Dresser
Coolant System (Built-In)
CATALOG SPECIFICATIONS:
Swing Over Table, Maximum 12.9375"
Grinding Diameter, Minimum 0"
Grinding Diameter, Maximum 12"
Distance Between Centers, Nominal 36"
Grinding Wheel Diameter, Standard 14"
Grinding Wheel Width, Standard 1.5"
Grinding Wheel Hole Diameter 5"
Table Swivel Taper Toward Wheelhead 4.5" TPF
Table Swivel Taper Away Wheelhead 1.250" TPF
Headstock Swivel Angle Toward Wheelhead 90-DEGREES
Headstock Swivel Angle Away Wheelhead 30-DEGREES
Lower Grinding Wheelhead Swivel Range 90-DEGREES
Upper Grinding Wheelhead Swivel Range 30-DEGREES
Workhead and Tailstock Center Tapers #9 B&S
Workhead Spindle Speeds, Range 50 TO 500 RPM
Table Longitudinal Feeds, Infinite 3 TO 240 IPM
Grinding Wheelhead Spindle Motor 3 HP
Workhead Motor, Horsepower 1 HP AC
Floor Space Required, L x D 12'9" X 5'6"
F.O.B. OUR WAREHOUSE
CYLINDRICAL GRINDER w/INTERNAL ATTACHMENT
Serial No 2U3D5B-22, Model LL
12" x 36" CINCINNATI-MILACRON UNIVERSAL
CYLINDRICAL GRINDER w/INTERNAL ATTACHMENT
Serial No 2U3D5B-22, Model LL
EQUIPPED WITH:
Swing Down Internal Grinding Spindle Attachment
8: 4-Jaw Chuck w/Jaws - Steady Rest
Follow Rest - Table Mounted Wheel Dresser
Coolant System (Built-In)
CATALOG SPECIFICATIONS:
Swing Over Table, Maximum 12.9375"
Grinding Diameter, Minimum 0"
Grinding Diameter, Maximum 12"
Distance Between Centers, Nominal 36"
Grinding Wheel Diameter, Standard 14"
Grinding Wheel Width, Standard 1.5"
Grinding Wheel Hole Diameter 5"
Table Swivel Taper Toward Wheelhead 4.5" TPF
Table Swivel Taper Away Wheelhead 1.250" TPF
Headstock Swivel Angle Toward Wheelhead 90-DEGREES
Headstock Swivel Angle Away Wheelhead 30-DEGREES
Lower Grinding Wheelhead Swivel Range 90-DEGREES
Upper Grinding Wheelhead Swivel Range 30-DEGREES
Workhead and Tailstock Center Tapers #9 B&S
Workhead Spindle Speeds, Range 50 TO 500 RPM
Table Longitudinal Feeds, Infinite 3 TO 240 IPM
Grinding Wheelhead Spindle Motor 3 HP
Workhead Motor, Horsepower 1 HP AC
Floor Space Required, L x D 12'9" X 5'6"
F.O.B. OUR WAREHOUSE
Inquire Further with Mohawk Machinery Inc!
