Manufacturer: Okamoto
Model: ACCUGAR-124N
Year: 1980
Width/Cross: 12.0
Length/Longit.: 24.0
Stock # 167531
For Sale by Machinery Values Inc
Surplus Record Dealer Since 1997
Andrew Valitt
973-49...> Show Seller's Phone Number 973-497-7600 Let the seller know you found their listing on Surplus Record!
Description

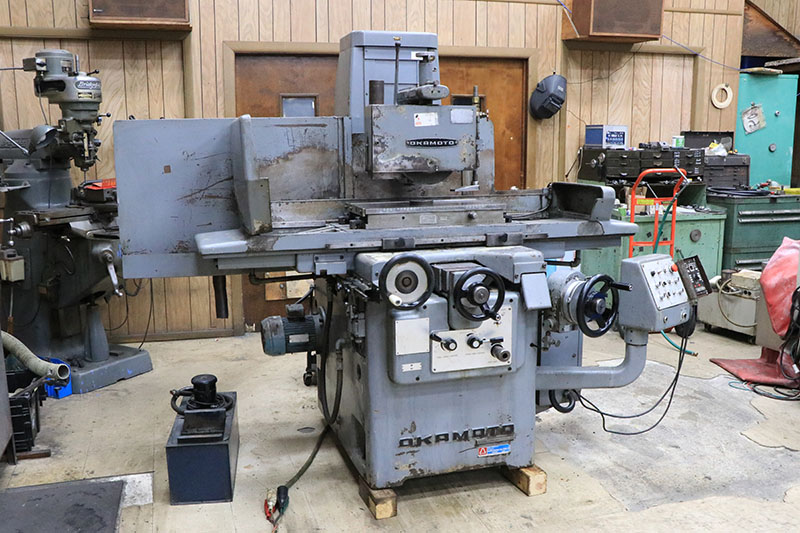

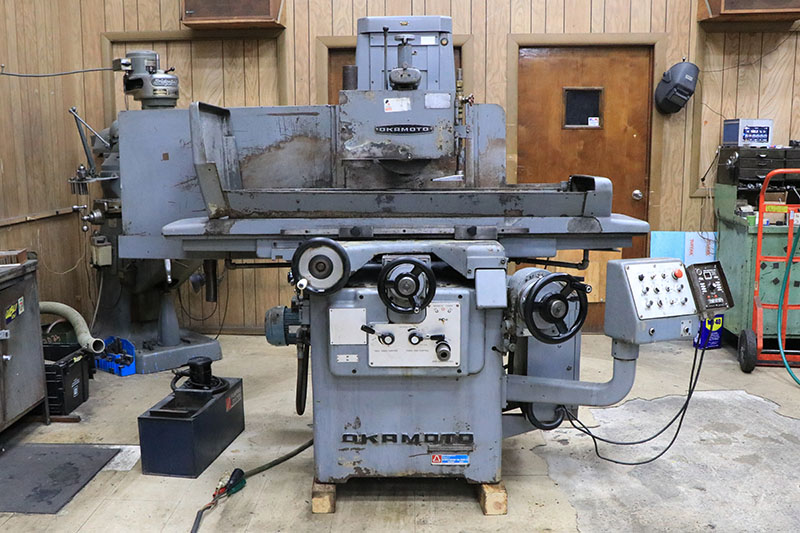

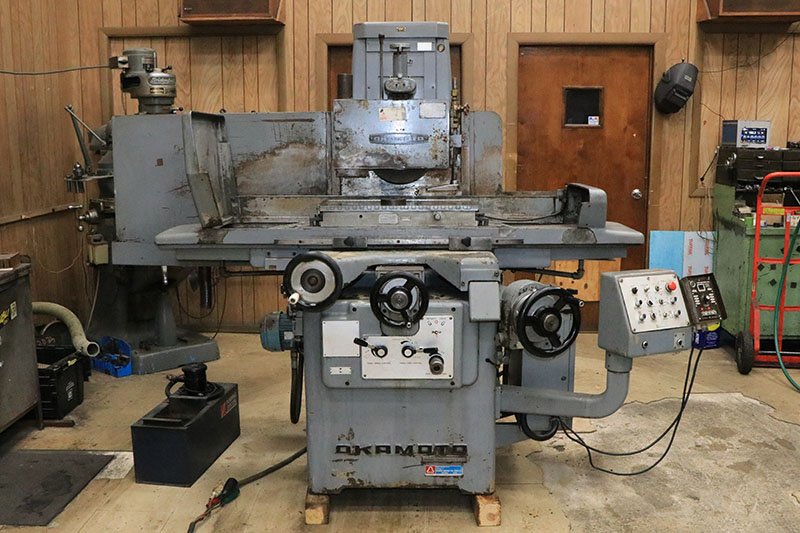

12" X 24" OKAMOTO HIGH-PRECISION
SURFACE GRINDER WITH AUTO INCREMENTAL DOWNFEED
MODEL: ACCUGAR 124-N… S/N: 6147… NEW: 1980
MAXIMUM GRINDING LENGTH ............ 24"
MAXIMUM GRINDING WIDTH ............... 12"
MAXIMUM HEIGHT UNDER 14" WHEEL ....... 13.7"
MAXIMUM LONGITUDINAL MOVEMENT ........ 29.5"
MAXIMUM CROSS MOVEMENT ............... 13.6"
FEEDS:
LONGITUDINAL HYDRAULIC FEED .......... 1' TO 100' FPM
CROSS FEED:
HYDRAULIC INTERMITTENT ............... 0.02" -.8"
HYDRAULIC CONTINUOUS ................. 0.4" 40" IPM
HAND FEED/REVOLUTION ................. 0.25"
GRADUATION OF WHEEL .................. 0.001"
VERTICAL MOVEMENT OF WHEELHEAD:
AUTO FEED/TABLE STROKE ............ 0.0001" - 0.00015"
AUTO FEED/SADDLE REVERSAL ........… 0.0001" - 0.00015"
HAND FEED/REVOLUTION ................. 0.05"
GRADUATION OF HANDWHEEL .............. 0.0001"
RAPID FEEDRATE ....................... 19" IPM
GRINDING WHEEL ................... 12" x 1- 1/2" x 5"
MOTORS:
SPINDLE MOTOR ........................ 5 HP
HYDRAULIC PUMP MOTOR .................″ HP
VERTICAL RAPID FEED MOTOR ............ 0.5 HP
DIMENSIONS ....................... 74"FB x 103"RL x 74"H
APPROX. MACHINE WEIGHT ............... 5,000 LBS.
EQUIPPED WITH:
HYDRAULIC TABLE TRAVERSE
AUTO CROSSFEED
AUTO INCREMENTAL DOWNFEED
AUTOMATIC SPARKOUT UP TO 5 PASSES
POWER ELEVATION

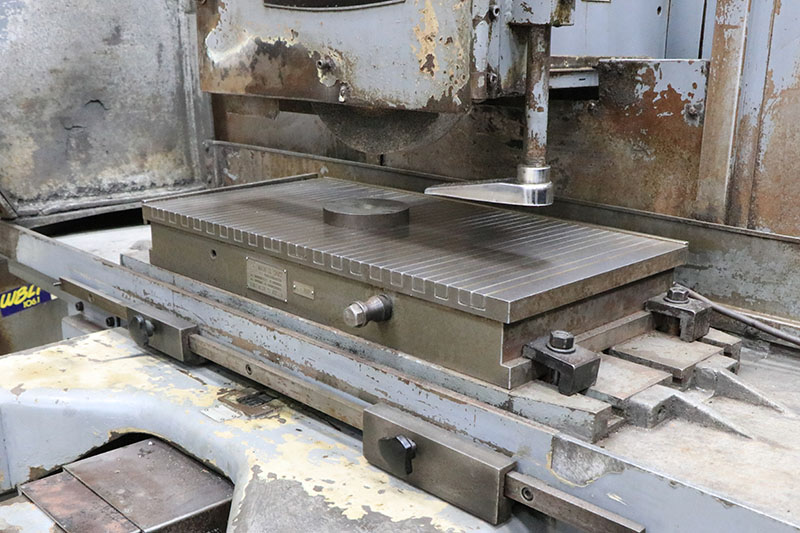

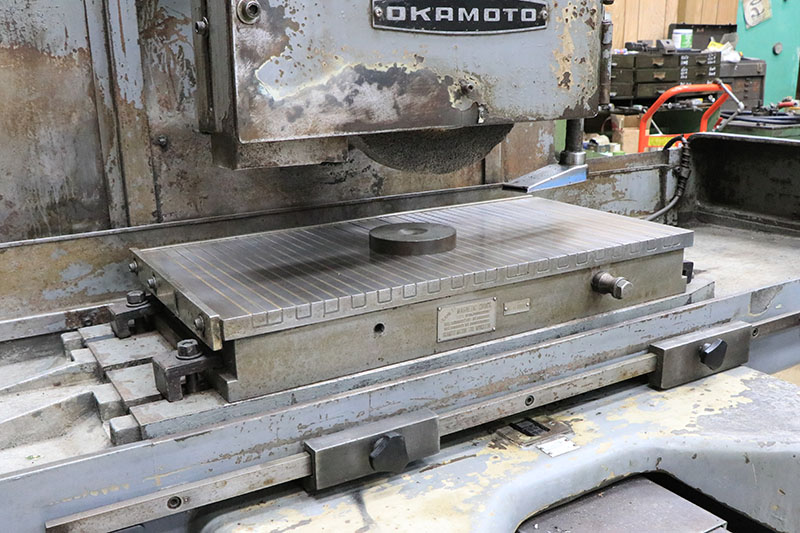

12" x 24"…"KANETEC"…"KET-3060-212BY" ELECTRO-MAGNETIC CHUCK
"SEMI-CONTROLS, INC."…"NEUTROFIER" CONTROL,
WITH VARIABLE HOLDING FEATURE
"GRAYMILLES" COOLANT SYSTEM
5 H.P./3/60/230-460 VOLT SPINDLE MOTOR
MACHINE IS PRESENTLY WIRED FOR 220 VOLTS
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** VERY GOOD CONDITION… APPEARANCE - RUNS VERY WELL **
Get Your Price from Machinery Values Inc!
