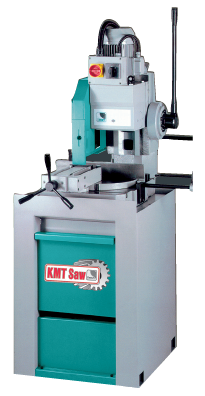

12" KMT #C-316, Manual Column Style Cold Saw, 7.25" Vise Opening, 17/33 RPM, 2.5 HP, 220/460 V, new

Description

Kalamazoo Machine Tool 12 1/2″ Manual Column Style Cold Saw, C 316

Inventory # 6193

Model: C 316

Made in Italy

Description:

Vertical column machines provide the construction that is the most stable of all cold saws. This means superior saw frame guidance and vibration-free sawing, and greater accuracy throughout the entire life of the machine. The saw frame is quickly and accurately swiveled to any angle up to 45° left or 60° right, with a highly visible scale for optimum accurately returning to zero.

The saw frame feed is rack and pinion which means you can easily pull through heavy workpieces effortlessly. The model C 316 is a step up from hinge type construction and may be used for production of tubes profiles and small solids

Specifications:

Max. Blade Size: 12 1/2″

Capacity:

@ 0°:

Round: 4″

Square: 3 1/2″

Rectangle: 3 1/2″ x 5 3/4″

@ 45° Right:

Round: 4″

Square: 3 1/2″

Rectangle: 3″ x 4″

@ 60° Right:

Round: 3 1/2″

Square: 3″

Rectangle: 2 3/4″ x 3 1/2″

@ 45° Left:

Round: 4″

Square: 3 1/2″

Rectangle: 3″ x 4″

Vise Opening: 7 1/4″

Spindle Speed: 17 / 33 RPM

Motor: 2.5 HP / 230v, 460v / 3ph

Standard Equipment:

One HSS Blade

Low Voltage Control

Totally Enclosed Worm Gear Transmission

Full Coolant System

Full Blade Guarding

Operators Manual Parts List/Schematics

Tool Kit

Pull Out Chip Tray

Mechanical Specifications:

Dimensions: 31″ x 25″ x 36 1/4″ H (Workheight)

Weight: approx. 800 lbs.

Contact us for special pricing and availability

FOB Factory

Optional Equipment:

Single Phase Motor: Contact us for pricing and availability
