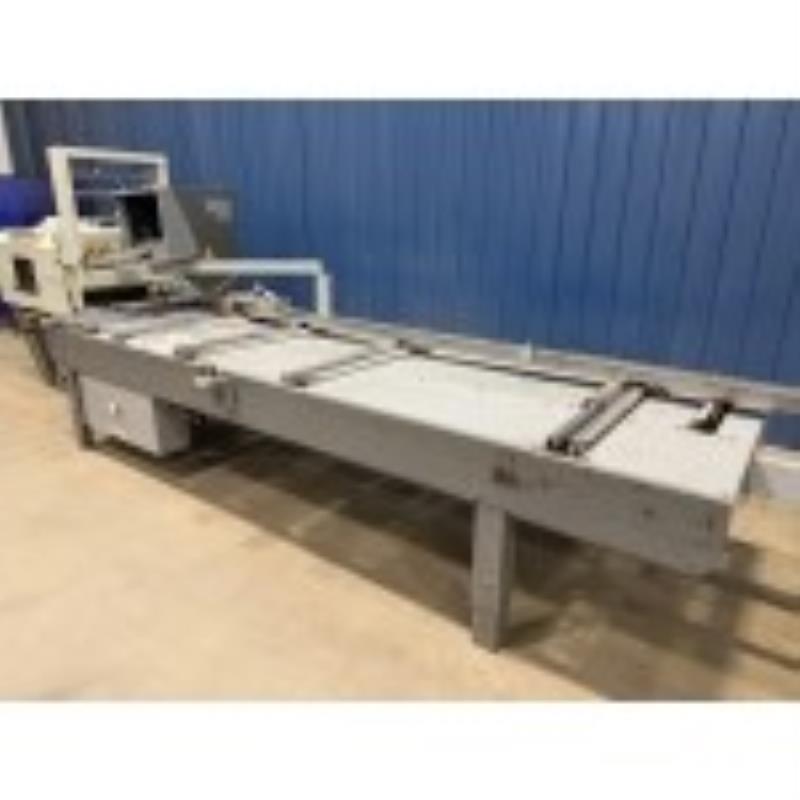

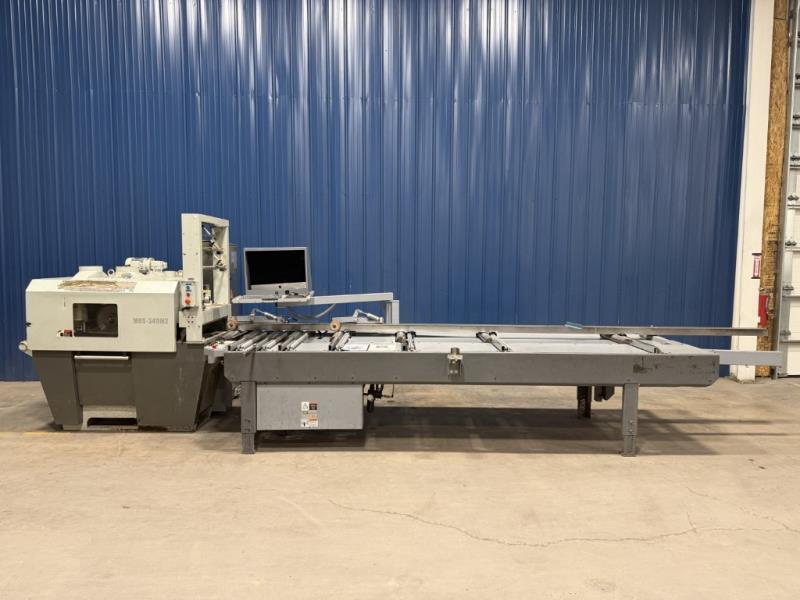

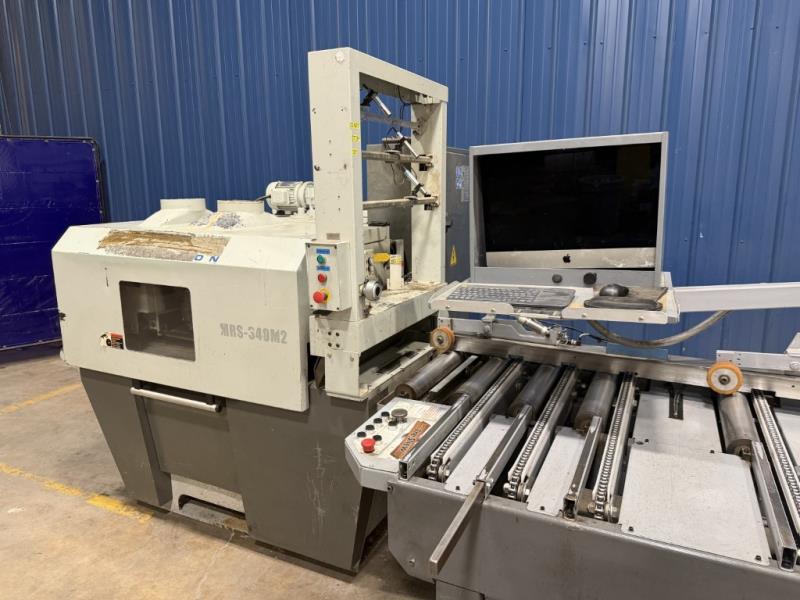

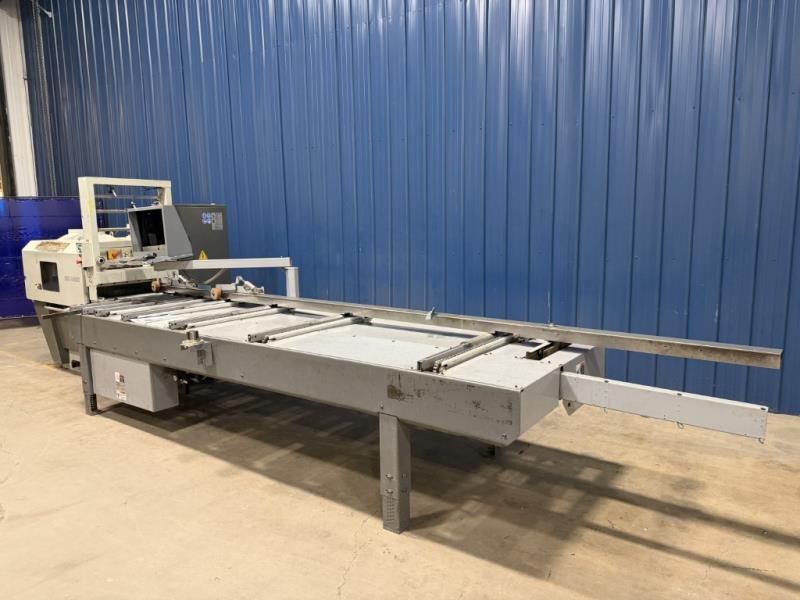

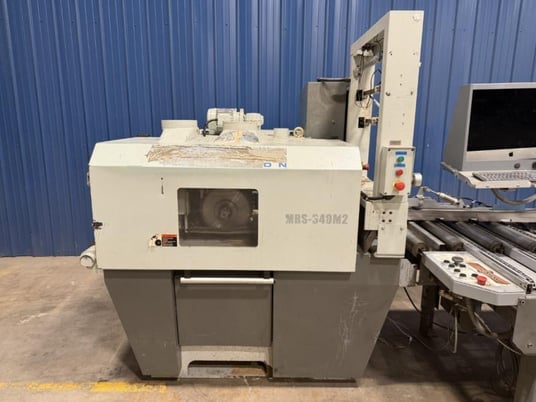

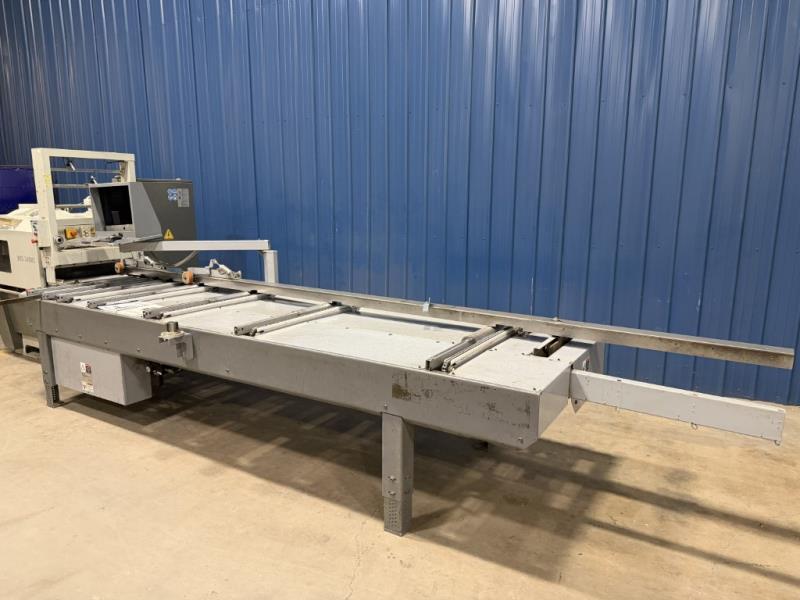

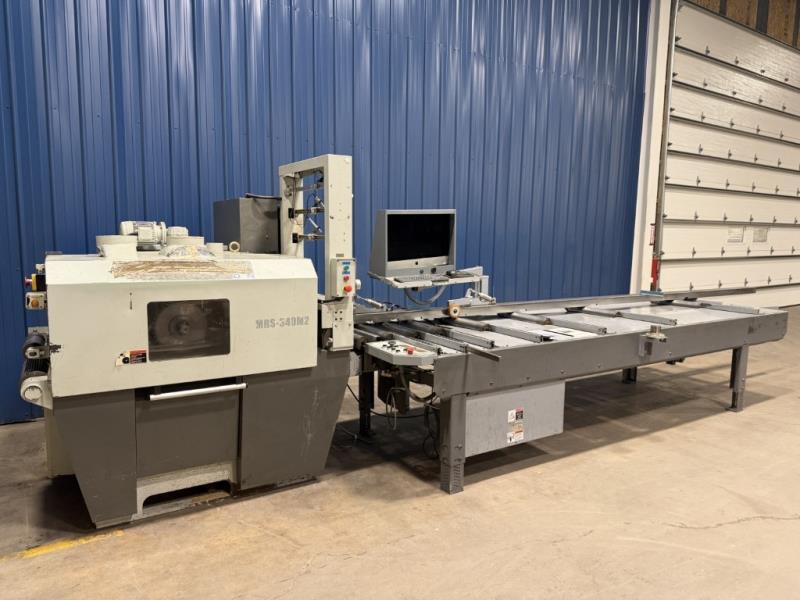

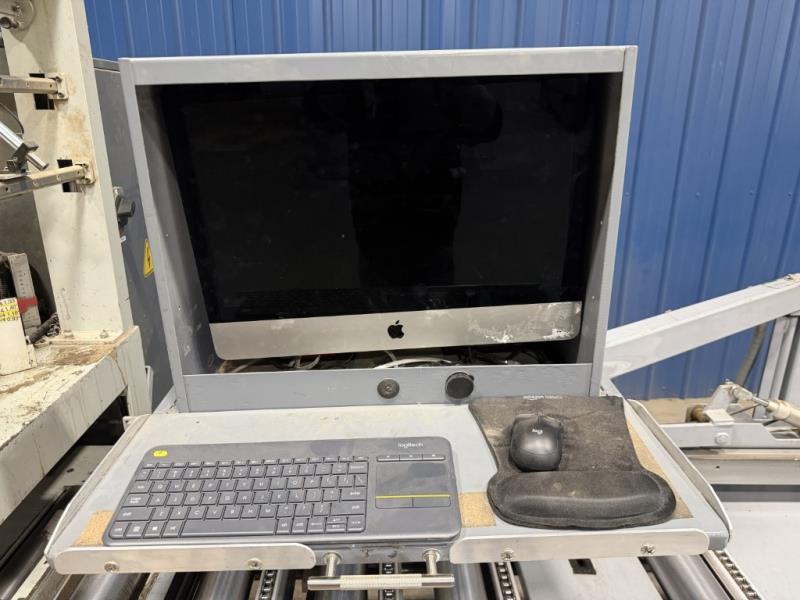

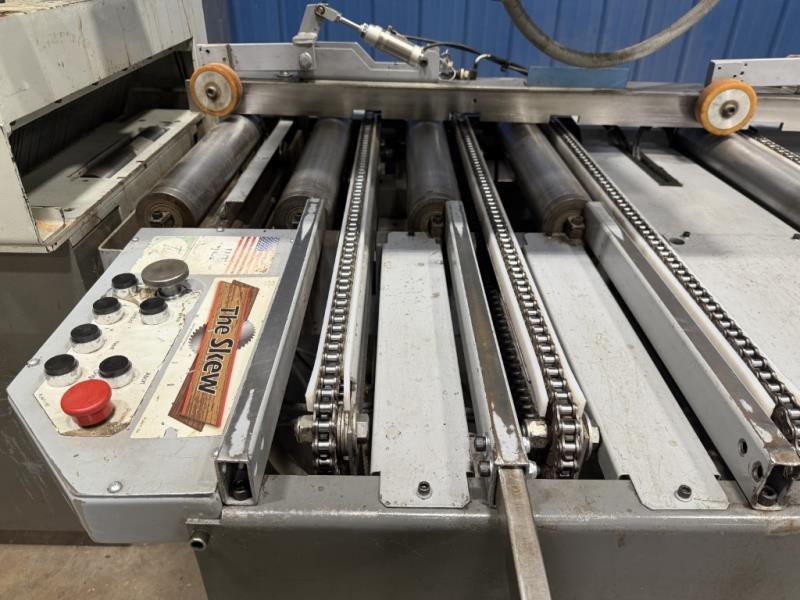

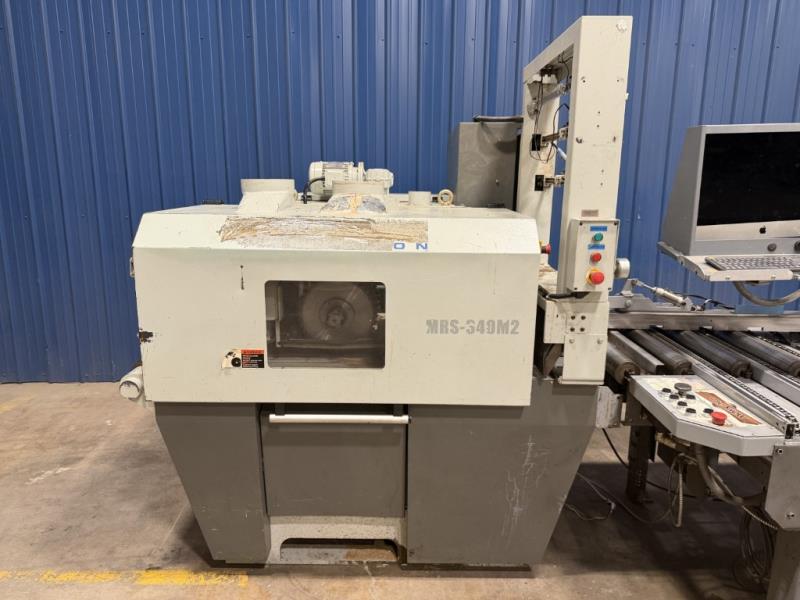

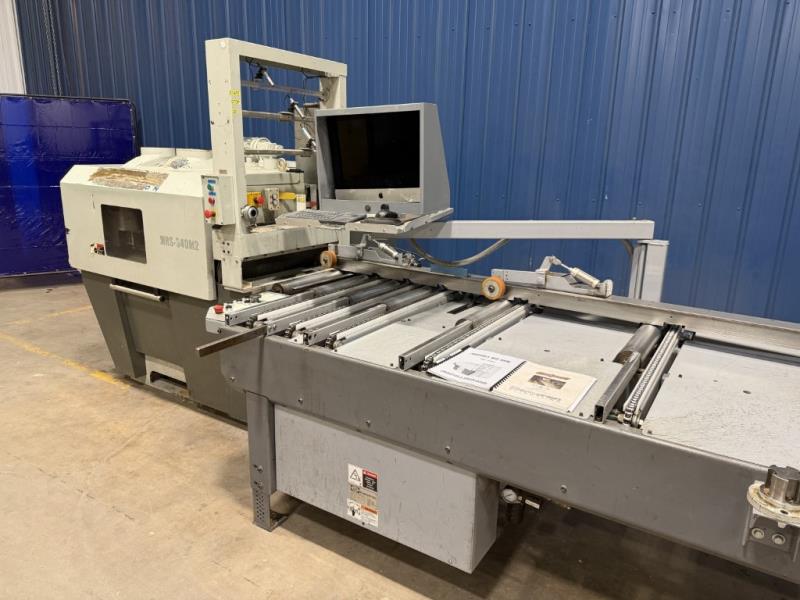

CAMERON AUTOMATIONS: MRS-340M2 - Gang Rip Saw with Skew Infeed Machine Specifications -- The Skew Rip Optimizing System with Skewable Fence. -- 16 Laser Width Scanners at 1' Intervals to profile each board -- (2) Drive Press Rollers -- Infeed Cross Chains for feeding boardsComputer, Frame, & hardware to feed 12" Gang Rip SawMachine to handle material from 4' to 16' LongKit for Skew to Communicate to Moving Blade SawMRS-340M2Gang Rip Saw Specifications -- 12" Wide Arbor -- (2) Servo Controlled Movable Blades -- (2) Fixed Blades -- Feed Speed 26-130 ft/min (8 - 40 m/min) -- Arbor Motor: 50 HP -- Feed Motor: 3 HP -- Three (3) sets of anti-kickback fingers -- (4) individual Pneumatic pressure rollsSteel dip chain construction with urethane inserts Equipped with & Features -- Powered out-feed roller -- , Digital controlled lubricator for feed chain. -- Amp meter for monitoring arbor motor running amperage -- Easily accessed v-belt driving saw arbor for reduced vibration and higher tolerances -- Easy access to spindle and blades for maintenance and tooling changes
DIEHL MR-90 Roll Feed Gang Ripsaw: 12" Cap. saw arbor, 2-1/2" max. thickness, min. stock length 5";: -- 50 HP - 3,600 RPM direct drive motor, 2-3/4" dia. arbor with key way, outboard arbor bearing. -- 12" Dia. max. saw blades with 2-3/4" bore and 5/16" keyway. & s -- Roll type feed works, 2 HP variable feed drive ...more
CAM-WOOD - XL 300,.Dip Chain Gang Rip Saw: Short Stock version12" Width cap.; 3/8" min. to 3-3/4"; max. cutting depth; 7" min. stock length.: -- 70 mm Dia. saw sleeve (one is included) with (2) keyways and the following spacers: (4) 15 mm, (4) 10 mm, (18) 1 mm, (10) 0.5 mm, and (8) 0.25 mm (see drawing after the ...more
Mereen-Johnson Model 524-DDCSR 2+4 Double Arbor First Arbor Arranged with Two (2) Independently Adjustable Select Saw Assemblies for Mounting Hogging Blades Second Arbor with Four (4) Independently Adjustable Select Saw Assemblies Arbor Space 24" Thickness Capacity to 1-3/4" with 12" Tooling and 2-3/4" Using 14" ...more
Serial# 185, 14”+ max width adjustment of fence, Table size: 27” wide x 48” long, adjustable saw with collars, adjustable infeed speeds, We have videos of it running, freight rates available, shipping dimensions: 52” wide x 60” long x 60” tall, Weight: 1,700 LBS., $3,900.
