12.5" Dake #Super-Cut-315, Pivot Head Cold Saw, 22/44 RPM, 4-5/8" Vise Opening, 90 PSI, 2.5 HP, 110 V, new

Description

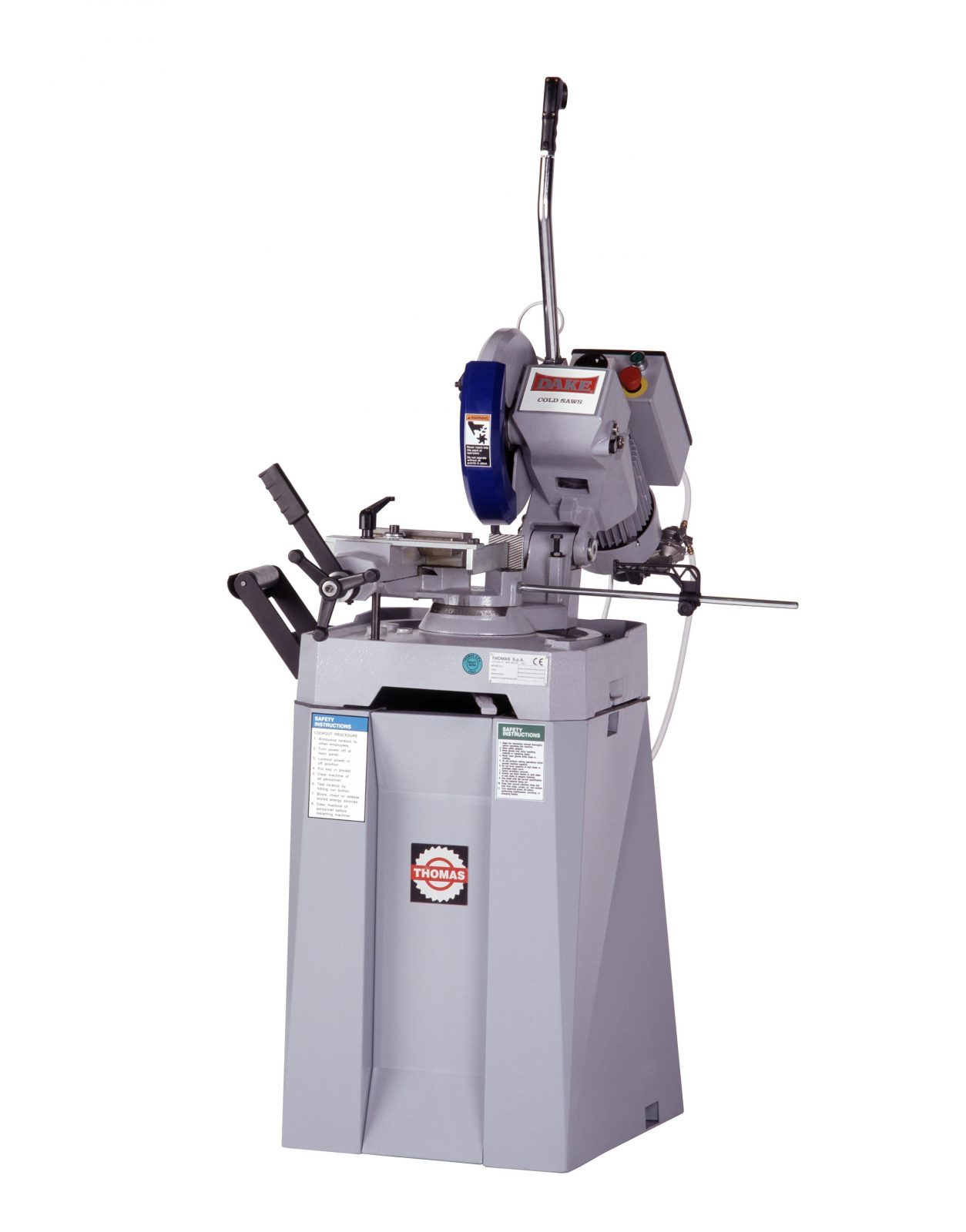

Dake 12 1/2″ Pivot Head Cold Saw, Super Cut 315

Inventory # 6212

Model: Super Cut 315

P/N: D-974315

Specifications:

Capacity:

Round:

@ 90°: 3 5/8″

@ 45°, Right: 3 1/2″

Square:

@ 90°: 3 1/4″

@ 45°, Right: 3 1/8″

Flat:

@ 90°: 4 1/4″ x 2 3/4″

@ 45°, Right: 3 1/4″ x 2 3/4″

Max. Blade Size: 12 1/2″ with 32mm Arbor

Spindle Speed: 1ph = 44 RPM (1 Speed), 3ph = 22, 44 RPM (2 Speed)

Max. Vise Opening: 4 5/8″

Miter Cutting: 45° Right / 45° Left

Compressed Air: 90 PSI with Optional Pneumatic Vise

Motor: 2.5 HP / 110v / 1ph OR 220v / 3ph (Please Specify Desired Voltage at Time of Order)

Standard Features:

Heavy-duty low production saw, comes with one standard HSS blade

Capable of near milled finish cuts with proper blade

Large pivot point with eccentric bushing for adjustment of cutting head for squareness if ever needed

Heavy-duty gearbox for long dependable life. All steel and bronze gears. No plastic gears to break. 3 1/2″ bronze gear (not 1 1/2″ like most machines)

CE certified electronics. Low voltage hand control with dead man switch. Thermo overload protection, low voltage protection with emergency stop button. This all housed in a watertight electrical enclosure

Miters right and left up to 45° and all angles in between. Set-up is precise using the scribed scale on the vise pivot. Vise face can be adjusted close to the blade for maximum holding power. Vise incorporates an anti-burr arm, for burr-free cuts

Hardened and serrated steel vise faces for sure clamping and long life

Vise is hand wheel adjustable and cam lever activated for repetitious clamping

Heavy gauge oversized steel base

Blade guard completely covers the blade

Stock stop gauge for repetitive cutting

Tool kit for quick blade changes

Complete CE approved English owners manual and blade pitch calculator

One gallon of coolant

Mechanical Specifications:

Dimensions: 36″ x 26″ x 59″ H

Weight: approx. 450 lbs.

FOB Factory – Contact us for Availability

Optional Equipment:

Blade Starter Pack, 3 HSS 12″ Blades

78″ Loading Table, In-bound

78″ Unloading Table, Out-Bound with Scale and Adjustable Positive Stop

Pneumatic Vise, Factory Installed
