For Sale by Nidec Press & Automation
Description
Tonnage 100 tons
Stroke 3 inches
Shut Height 12.5 inches
SPM 200
Vari Speed (Yes/No) yes
Bed W 31 inches
Bed L 48 inches
Crank (Single/Double) double
Air Clutch (Yes/No) yes
CNC Control yes
Type of CNC Control Minster PMC
Dimensions 117" x 60" x 151"
Weight 28000 pounds
Equipped With

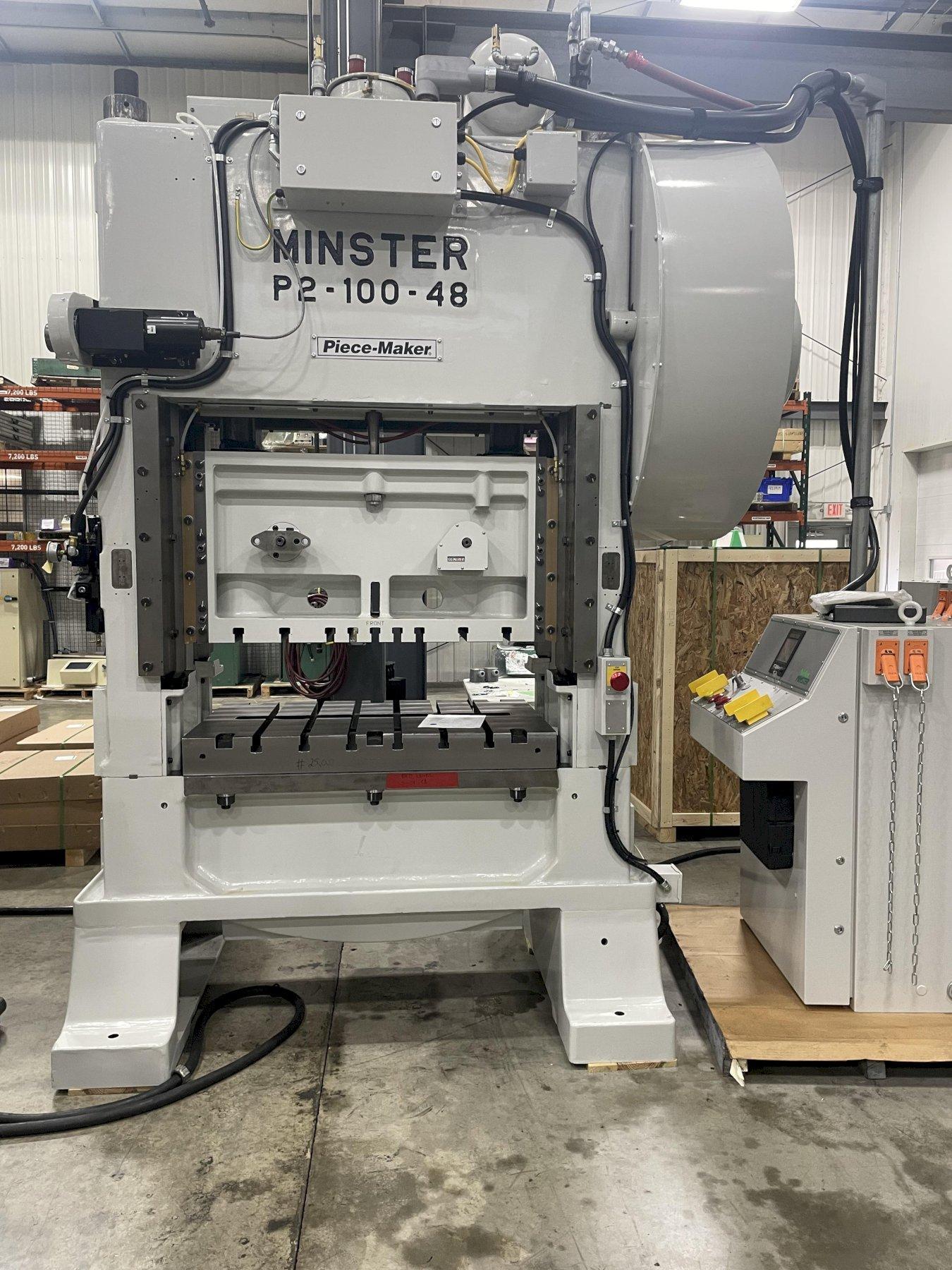

Remanufactured Minster P2-100-48-017046
Precision Straight Side Press
Specifications (INCH)
Press Specifications
Model Number........................................................ P2-100-48×31-FW
Force × Distance off Bottom.................................. 100 ton
Crankshaft Extension Location............................... Opposite Drive Side
Drive Arrangement.................................................. Flywheel
Drive Location........................................................ Right Hand Side
Lube Unit Location................................................. Drive Side
Approximate Press Mass......................................... 28,000 lb.
Shutheight Indicator Readout................................. Inch
Press Slide Specifications
Stroke Length, Speed Range................................... 3.00 in, 100-200 spm
Adjustment of Shutheight....................................... 4.00 in Manual
Area of Slide, R-L × F-B........................................ 48.0 × 18.5 in
Slide Face Machining.............................................. Standard
Press Bolster Specifications
Plate Material.......................................................... Steel
Bolster Plate Thickness........................................... 5.00 in
Area of Bolster, R-L × F-B..................................... 48.0 × 31.0 in
Bolster Plate Machining.......................................... Standard
Press Frame Specifications
Upright Passline Opening, F-B............................... 16.0 in
Area of Bed, R-L × F-B.......................................... 48.0 × 31.0 in
Opening in Bed, R-L × F-B.................................... 41.0 × 15.0 in
Shutheight, SDAU on Bolster................................. 12.50 in
Shutheight, SDAU on Bed...................................... 17.50 in
Approx. Clearance, Mount to Bottom of Bed........ 12.00 in
Dist Mount to Top of Bed.......................................... 40.0 in
Approx. Floor Area, R-L × F-B.............................. 117 × 60 in
Approx. Overall Height, from Mount 151 inGet Your Price from Nidec Press & Automation!
