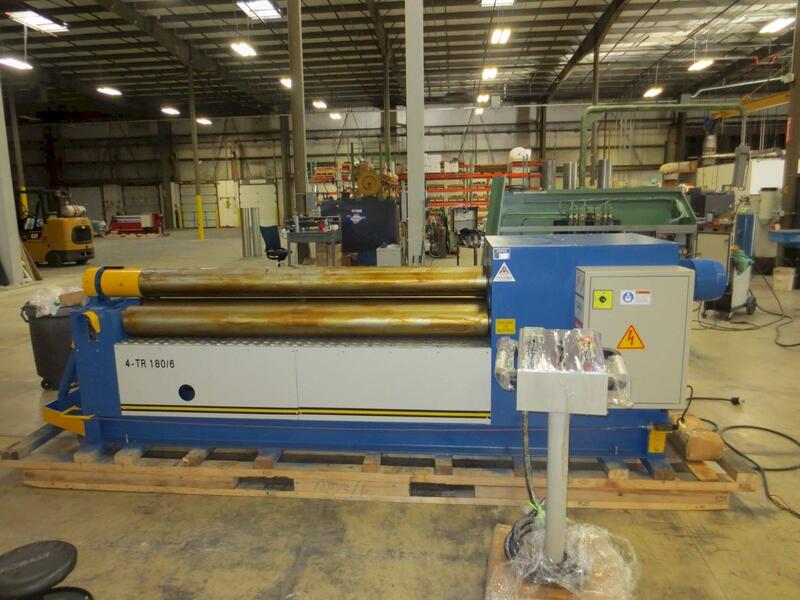

10' x 9/64" Lemas #4-TR 180/10, Hydraulic Double-pinch Plate Bending Roll, 10 gauge capacity, 4-roll, 7.10" diameter, 16 FPM, NEW

EQUIPPED WITH:
STANDARD EXECUTION:
* Spherical roller bearings on roll shafts
* Hydraulically powered adjustment of both side bending rolls
* Hydraulic tilting of both side bending rolls for cone rolling
* Cone bending attachment
* Digital readouts for position of both bending rolls
* Hydraulically operated drop end for quick removal of rolled product
* Hydraulic pinch roll adjustment with adjustable pinch pressure with pressure gauge
* Manual tilt of the lower pinch roll
* Portable control console on wheels for efficient operation of the machine
* Upper and lower pinch rolls driven
* All rolls heat treated to 50 Rc
* Electrics for 3/60/220 or 480 volt operation. Low voltage at the controls.
* Emergency stop palm button on the control console
* Emergency stop cable around the machine
OPTIONAL FEATURES:
* Variable rotation speeds via frequency changer in place of single speed drive. For in stock machines, adds about 2 weeks to lead time. For factory order machines, no increase in lead time. --------------- $2,495.00
* Electromechanically operated top support device for supporting cylinders being rolled. Only available on factory ordered machines. Cannot be added to in-stock models. -------------------- $9,950.00
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
DELIVERY:
APPROXIMATELY 16 WEEKS
