For Sale by Norman Machine Tool Ltd
Description
Description

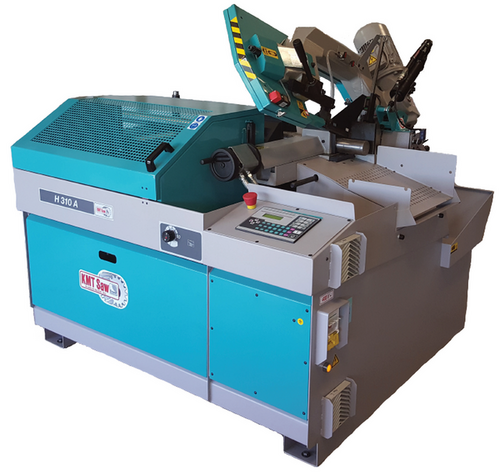

Kalamazoo Machine Tool 10″ Swivel Head Mitering Automatic Band Saw, H 310 A-NC
Inventory # 7842
Model: H 310 A-NC
Made in Italy
Description:
Packed with many features usually only seen on more expensive saws the H 310 A and H 310 A-NC offer fully automatic sawing in a tight footprint
Specifications:
Capacity:
@ 0°:
Round: 10″
Square: 9″
Rectangle: 7″ x 11 1/2″
@ 45°:
Round: 8 1/4″
Square: 7 1/2″
Rectangle: 6 1/4″ x 7 3/4″
@ 60°:
Round: 5″
Square: 4 1/4″
Rectangle: 4″ x 4″
Vise Opening: 12″
Blade Size: 109″ x 1″ x 0.035″
Blade Speed: 60 – 360 FPM
Motor: 2 HP / 230v, 460v / 3ph
Standard Features:
Fully hydraulic
Manual mitering up to 60°
Feeder stroke 20″ with unlimited max. feed length scrap end 8″
Carbide guides with rollers
Time saving material sensor
Easy setup
Job memory
Ball screw feeder +/- 0.005″ per index
Standard Equipment:
One Bi-Metal Blade
Low Voltage Control
Totally Enclosed Worm Gear Transmission
Full Coolant System
Full Blade Guarding
Operators Manual Parts List/Schematics
Tool Kit
Mechanical Specifications:
Dimensions: 68″ x 73″ x 37″ H (Work-Height)
Weight: approx. 1,500 lbs.
Contact us for special pricing and availability
FOB Factory
Related
Inquire Further with Norman Machine Tool Ltd!
Buyers Who Viewed This Listing Also Viewed …
10" KMT #H-310-A, Swivel Head Mitering Automatic Band Saw, 12" Vise Opening, 60-360 FPM, 109" x 1" x 0.035" Blade, 2 HP, 230/460 V, new

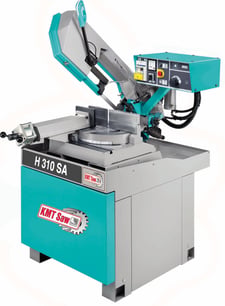

10" KMT #H-310-SA, Semi-Automatic Mitering Band Saw, 12" Vise Opening, 60-360 FPM, 109" x 1" x 0.035" Blade, 2 HP, 230/460 V, new
