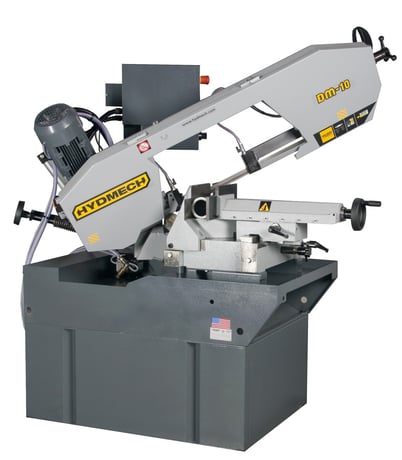

10" Hyd-Mech #DM-10, Double Miter Horizontal Band Saw, (2) 118-236 SFM, 9' 8" x 1" Blade, 3.5 Gal. Coolant, 34" H Table, 2/2.4 HP, 480 V, new

Description

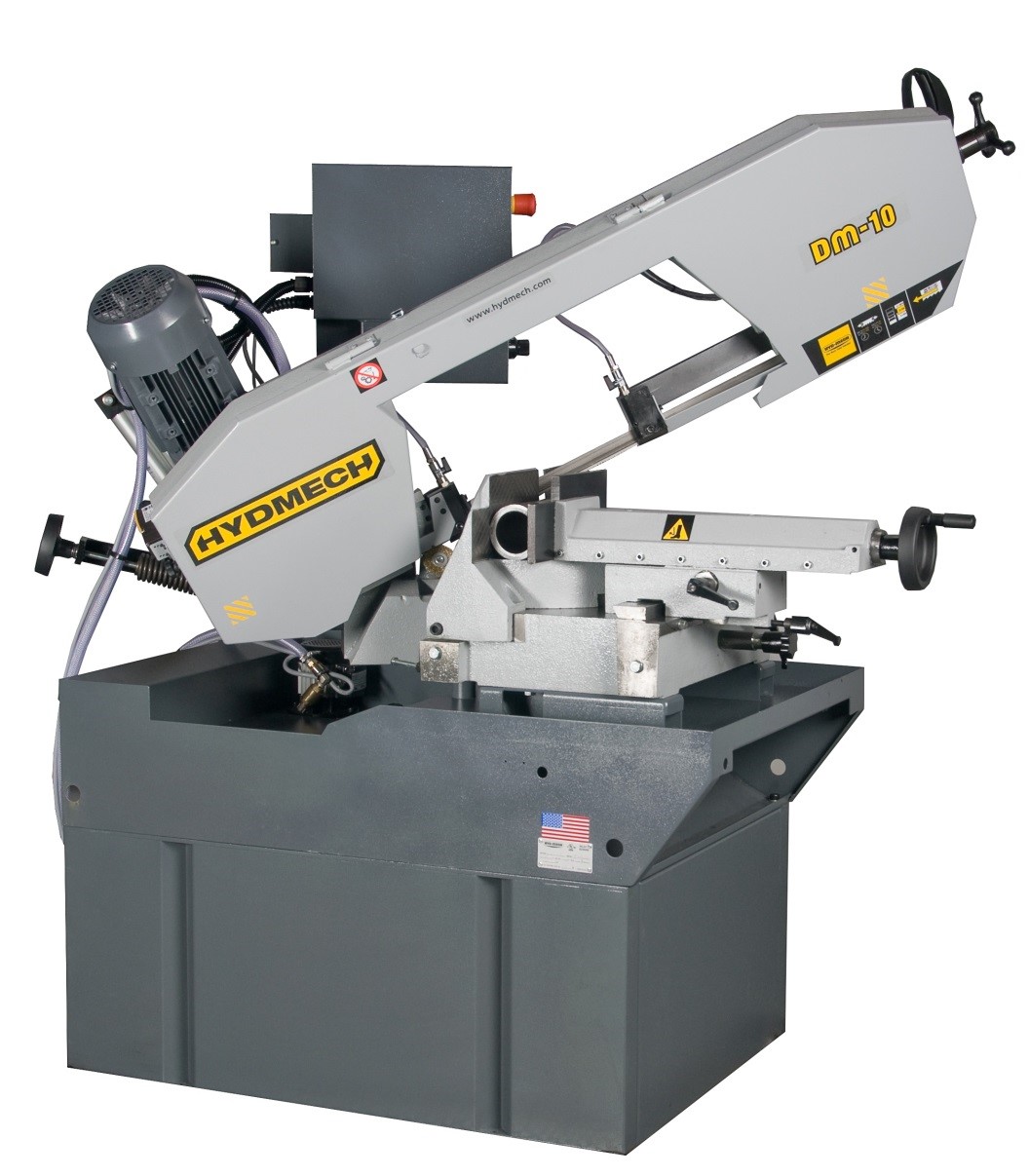

Hydmech 10″ Double Miter Horizontal Band Saw, DM-10

Inventory # 9030

Model: DM-10

Specifications:

Capacity:

Rectangular:

@ 90°: 9 1/2″ x 11″

@ 45° Left: 6 1/4″ x 4 1/2″

@ 30° Right: 5″ x 4 1/2″

@ 45° Right: 8 1/4″ x 7″

Round:

@ 90°: 10″

@ 45° Left: 5 3/4″

@ 30° Right: 4″

@ 45° Right: 7 1/4″

Square:

@ 90°: 9″

@ 45° Left: 4 1/2″

@ 30° Right: 5″

@ 45° Right: 7″

Blade Size: 9′ 8″ x 1″

Blade Speed: (2) 118 – 236 SFM

Coolant Tank Capacity: 3.5 Gallons

Table Height: 34″

Motor: 2 HP, 2.4 HP / 480v / 3ph (208v, 240v, or 575v power sources will require a transformer)

Standard Features:

Manually operated, double miter, easy swing, and cast saw head

Quick release cast-iron material vise with dovetail ways

Rotating table with cut slot that moves in tandem with sawing head

Band tension indicator

Infinitely adjustable, gravity feeding, sawing head

Replaceable blade brush

Small footprint

Robust steel base

Easy-to-read angle scale

Adjustable guide arm

Pre-set, replaceable carbide guide inserts

True-direct drive — no belts or pulleys

Mechanical blade tensioning

Safety door interlocks

Flood coolant

Adjustable work-stop

Mechanical Specifications:

Dimensions: 35 1/2″ x 68″ x 65″ H

Weight: approx. 970 lbs.

FOB Factory
