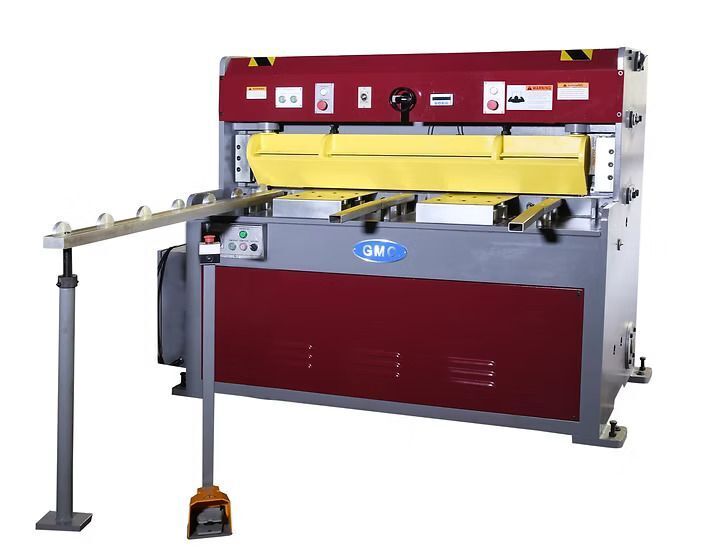

Cutting capacity: Mild Steel: 4' x 1/4 Stainless Steel: 4' x 10 Ga. soft aluminum: 4' x 3/8" min. thickness: 20Ga Blade Length: 4'4" Strokes Per Minute: 12-20 Worktable Height: 34 1/2" Front Support Arm: 24" Backgauge: 24" SIKO Powered Backgauge Blade Rake Angle: 2 degree Oil Tank Capacity: 17 Gallons Main Motor: 7.5 HP (3 Ph.) 220V/30A 440V/15A (optional) Backgauge Motor: 1 HP 220V/440V (3 Ph.) Machine Weight: 5,350 LBS Machine Dimensions: 74" x 86" x 63" 24 German SIKO Front Operated Power Back Gauge with micro adjustment , accuracy 0.004 inch/metric digital display 1 each 60 squaring arm with inlaid inch/metric dual scale Quick change blade gap adjustment (BGA) with gap dial Shadow line for accurate straight cutting Material support and drop back chuter Upper and bottom blade set with 2-edge on bottom & 2-edge on upper 2 each 24 front support arms Hydraulic hold-downs with anti-mar neoprene Full length viewable finger guard Removable safety foot pedal Tool box

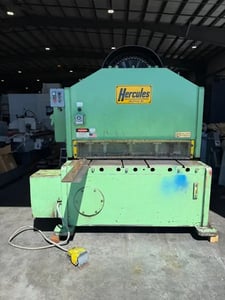

AMERICAN HERCULES 52” x ¼” Hydraulic Squaring Shear USA #8256, 48” Power back gauge, 36” Squaring arm, 20 H.P. Hydraulic motor, Machine is wired for 230 volt / 3 phase / 60 H.Z., Machine weight- 9500 Lbs., Machine dimensions- 84” x 96” x 82” H, Machine location- F.O.B. ...more
Pre Owned Accurshear Model 62506 Hydraulic Power Squaring Shear, Capacity (Mild Steel) 1/4” X 6’, Strokes Per Minute 30 – 55, Main Motor Horsepower 20, Stroke Length Control, Electric Foot Switch, Hand Slots in Table, Oil Cooler, Manual Quick Blade Gap Adjustment, Dual Hydraulic Hold Downs on Ends of ...more
