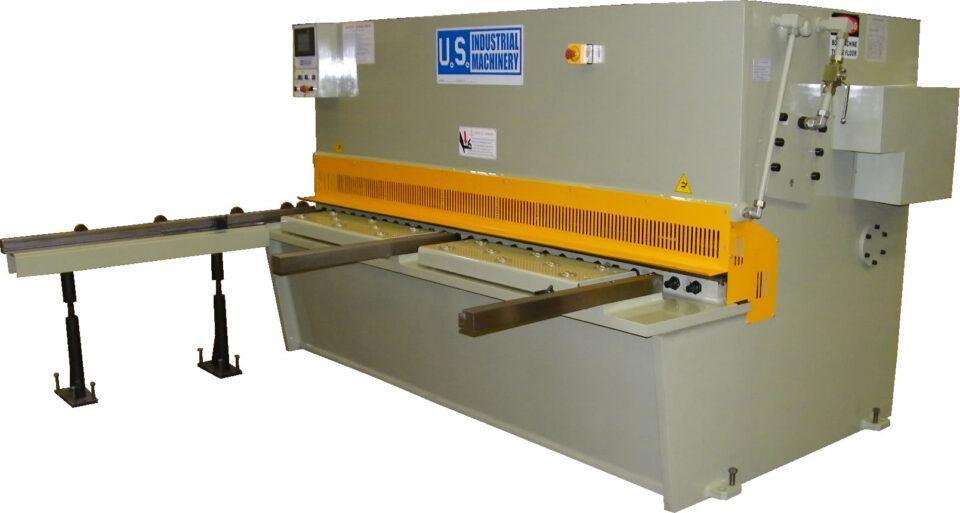

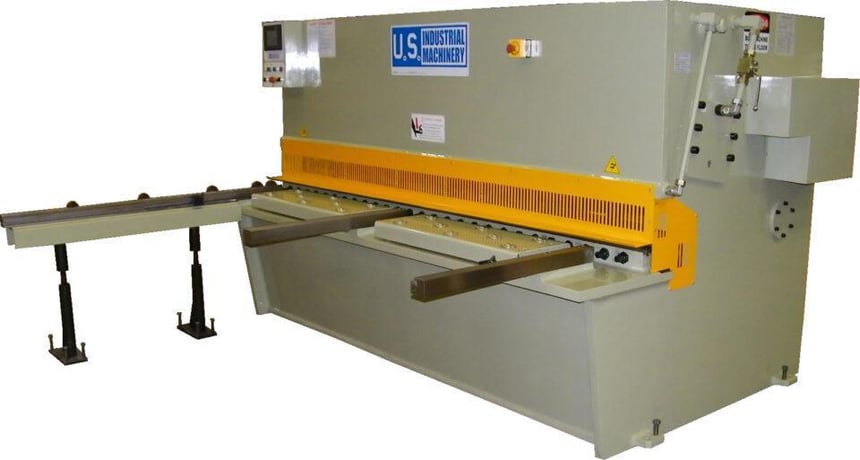

1/4" x 10' U.S. Industrial #US1025, Hydraulic Shear, 126" sheet size, 14 load strokes, NEW

SPECIFICATIONS:
Sheet Size: -------------------- 126 inch
Shearing Capacity: ------------- 1/4 inch Mild Steel @ 65,000 PSI
Shear Angle: ------------------- 1 Degree 30
No Load Strokes: --------------- 14
Throat Depth: ------------------ 5.5 inch
Adjustment Range of Back Gauge:- 0.75 inch - 36 inch
Hydraulic Oil Capacity: -------- 71 Gal.
Main Motor: -------------------- 15 HP
Net Weight: -------------------- 15,550 lbs.
Dimensions (L x W x H): -------- 157 inch x 63 inch x 63 inch
EQUIPPED WITH: -
Squaring Arm
- Bolt on table segments??quantity of 3
- High Carbon, High Chrome Shear Blades
- Hold-downs faced w/anti-mar neoprene
- Ball Transfers on Each Table Segment
- Swing Beam Design
- Manual Quick Change Blade Gap Adj.
Front operated power Backgauge with digital readout, 36” travel Included
Squaring Arm – 39” Included Support Arms,
Ball Transfer Tables w/hand slots between tables Included
Quick blade gap adjustment Included
Material drop/support chute
Our machines are shipped without oil. Please refill the oil
before operating the machine. Also remember that the machines
must be anchored and leveled, or the warranty may be voided.
Full 220V or 440V is required. Low voltage may hinder
operation of or damage the machine.
AVAILABLE OPTIONS:
• 3-Axis CNC Programmable Back Gauge
*Touch-screen operated. Controls back gauge depth, blade gap and stroke length. It has a 200 program storage capacity, each program up to 20 steps, and it can be operated in manual or automatic mode.
• Material drop chute only (*This device makes it easier to retrieve sheared drops and is normally required by customers.) Shown above
• Upgrade to Pneumatic Sheet Support AND Material drop chute (Substitute this price for price of Material drop chute.)
• Upgrade to 6-Foot Squaring Arm with inlaid scale
• Upgrade to 8-Foot Squaring Arm with inlaid scale
• Upgrade to 10-Foot Squaring Arm with inlaid scale
• Upgrade Cr12MoV blades for cutting up to 1/8” thick stainless
• Upgrade to 48” Back Gauge; no swing up
• Training in our Memphis, TN Showroom No Charge
• Training at customer site, less than 300 miles from Memphis:
• Training at customer site, more than 300 miles from Memphis: (If outside continental USA, please call for quote.)
DELIVERY: SUBJECT TO STOCK
