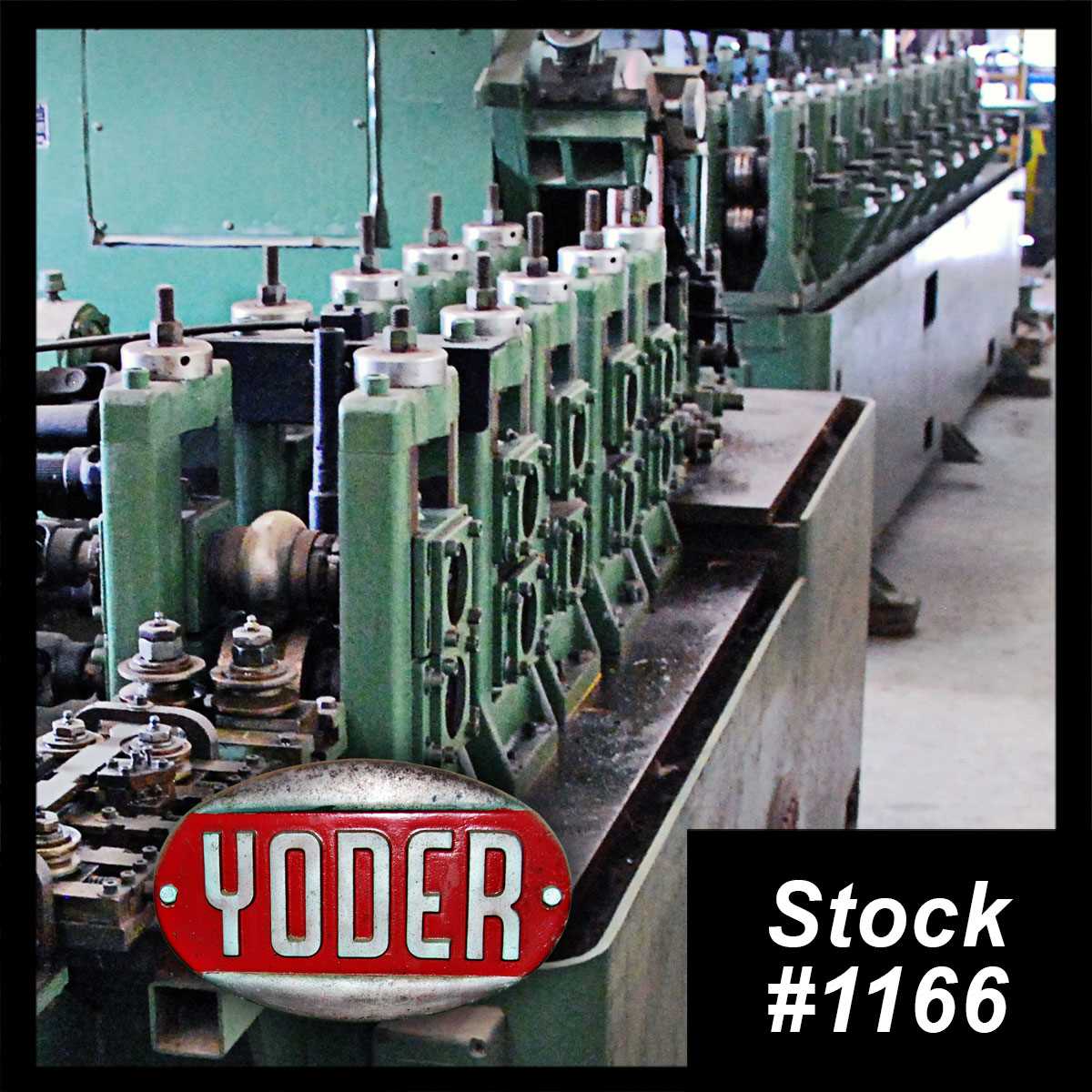

1/2" Yoder #W15, ERW, reducing mill, 9-pass (W15), f/refig.tubes, 2500 lb.dbl.unc, #1166

UTUBE NUMBER: 1166
MANUFACTURER: Yoder Manufacturing Company
MODEL NUMBER: W15 Forming – W15 Reducing
SERIAL NUMBER: Y1352-62

SPECIFICATIONS:
Type: Refrigeration Mill, Carbon Steel
Line Direction: Left to Right

This machine was used to manufacture refrigeration tubes that must be reduced to increase length and maintain wall thickness.

The tube is welded at .480" (12.1 mm) and reduced to smaller sizes.
Maximum Wall Thickness .040" (1.01 mm)
Minimum Wall Thickness .028" (.711 mm)
Typical Wall: .030" (.762 mm)

Welding Speed: 125 FPM Max., Gear In Speed, No Load
Reducing Speed: 275 FPM @ 3/16" (4.76 mm)
200 FPM @ 1/4" (6.35 mm)
150 FPM @ 5/16" (7.93 mm)

ENTRY EQUIPMENT:
2,000 Lb. (1 Ton) Gantry Crane
2,500 Lb. (1.2 Ton) Double Uncoiler
Overhead Looper 2 Strand, Approximately 300 Feet Storage
Shear & End Welder
Pinch Roll Pull Out Stand, 10 HP

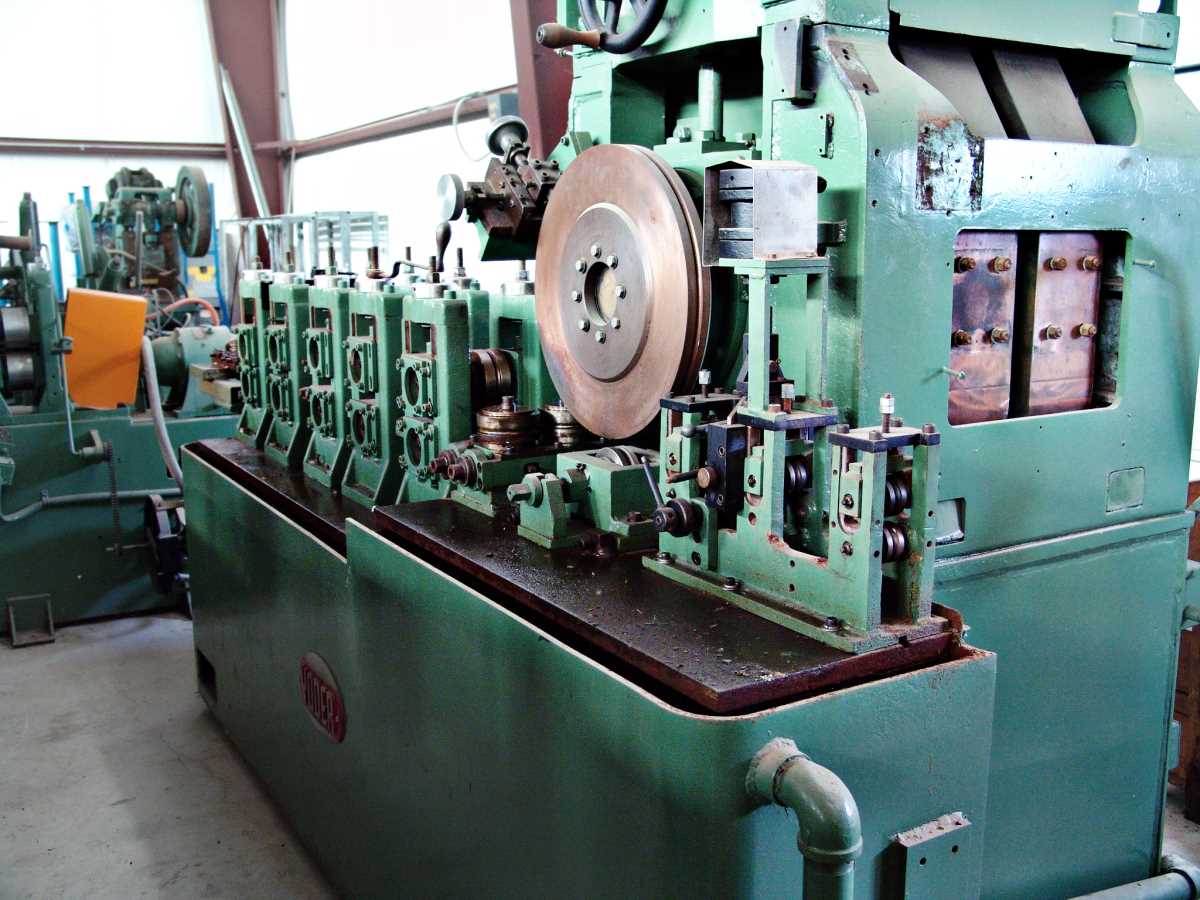

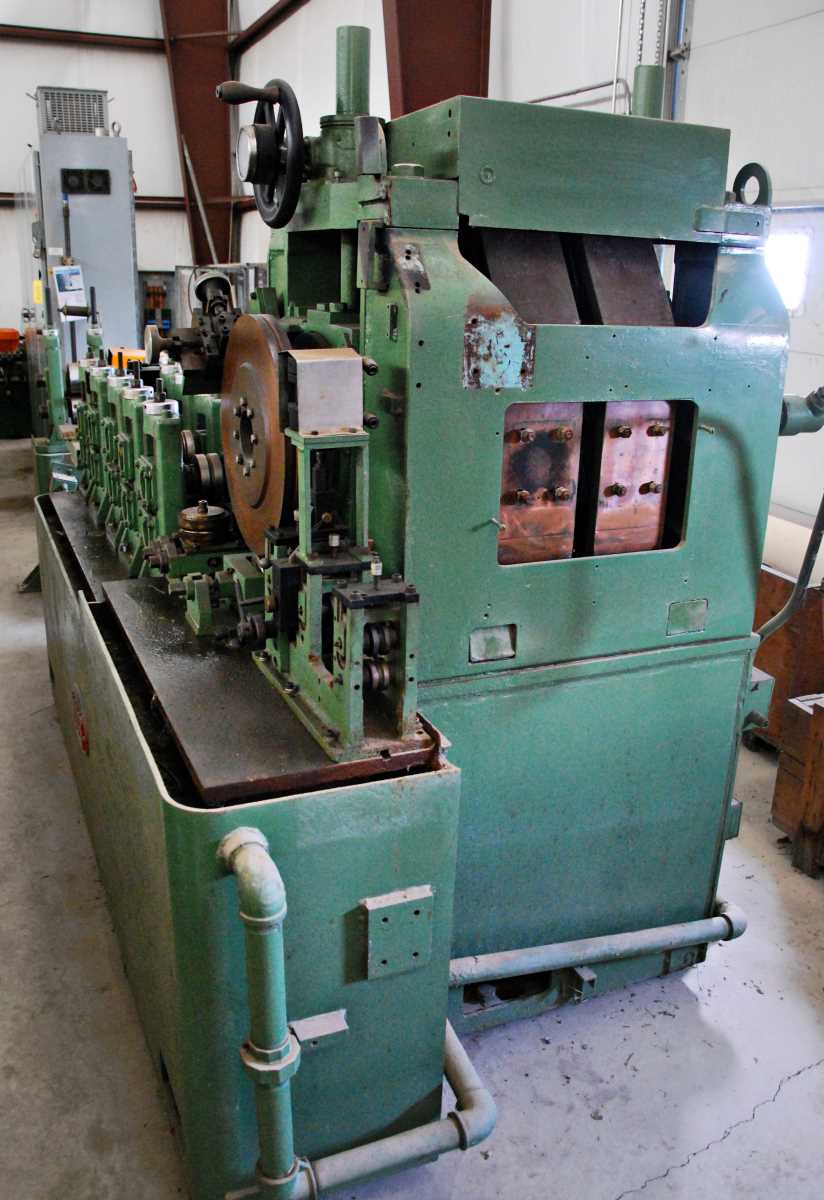

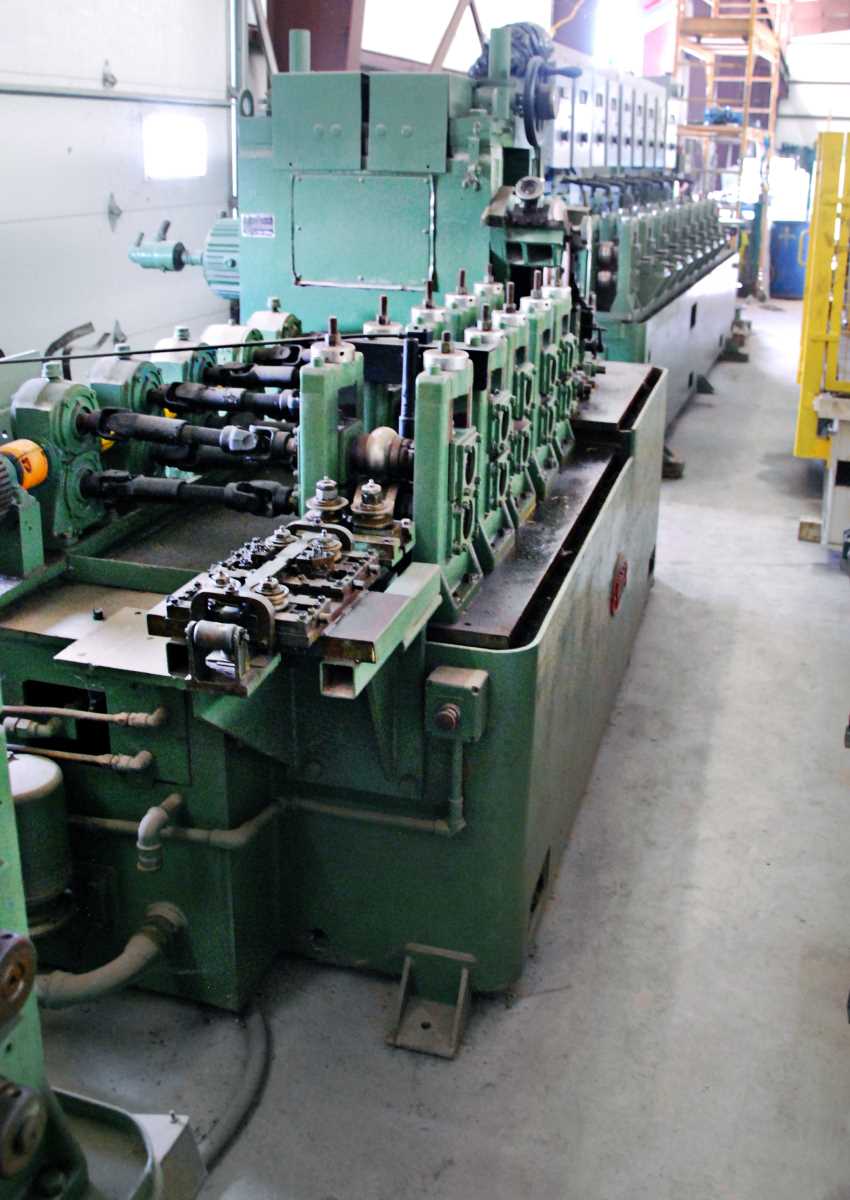

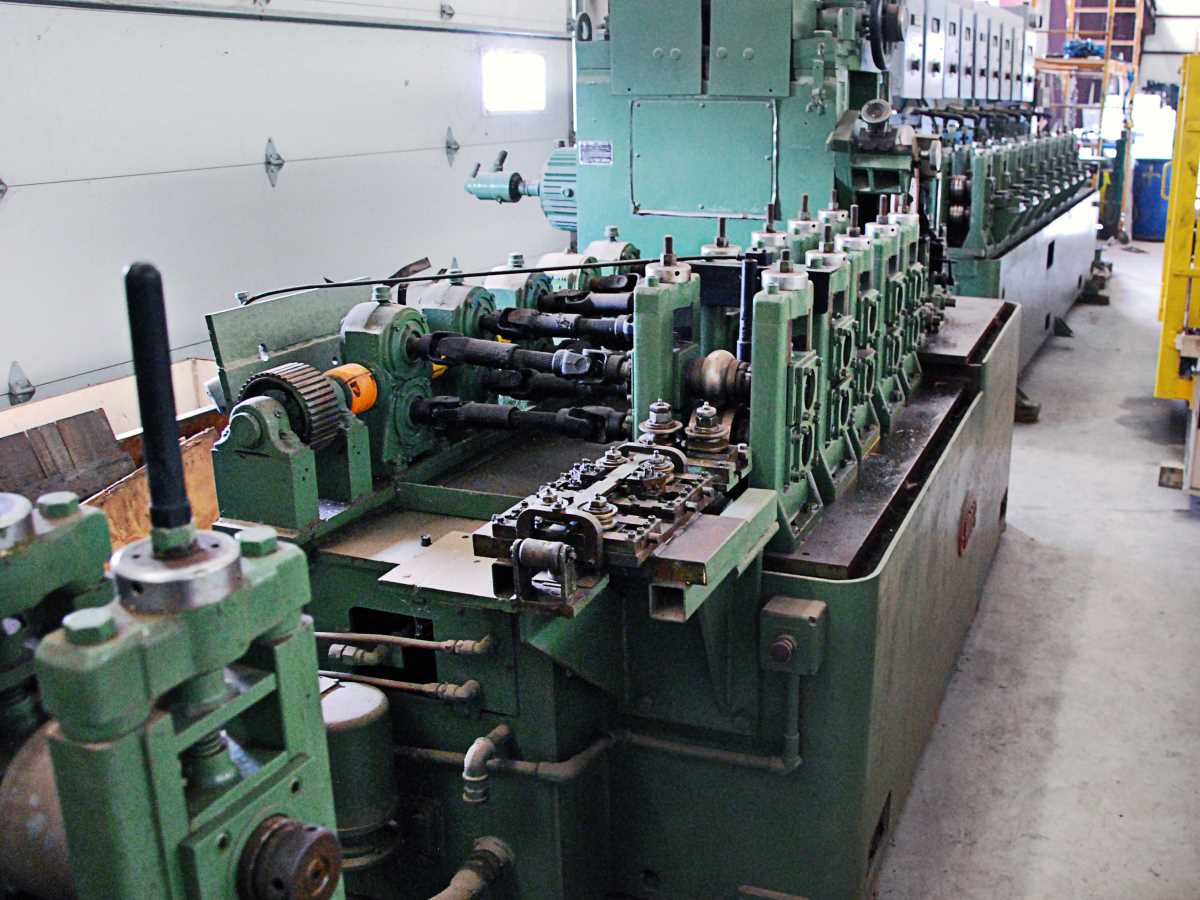

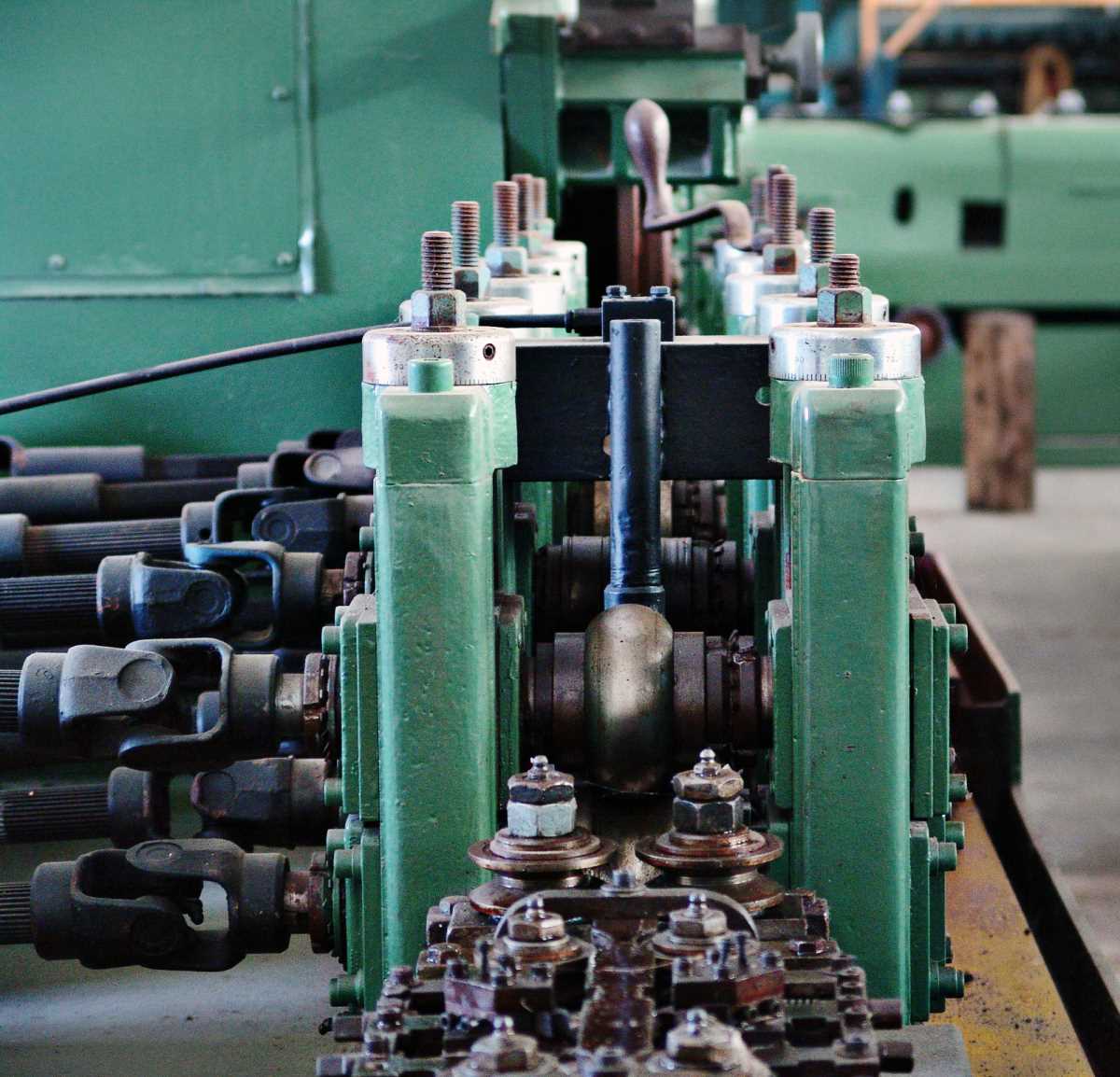

FORMING MILL:
Entry Guide Unit
(3) Driven Breakdown Stands
(2) Driven Fin Passes
(4) Idle Side Roll Units
Seam Guide Unit

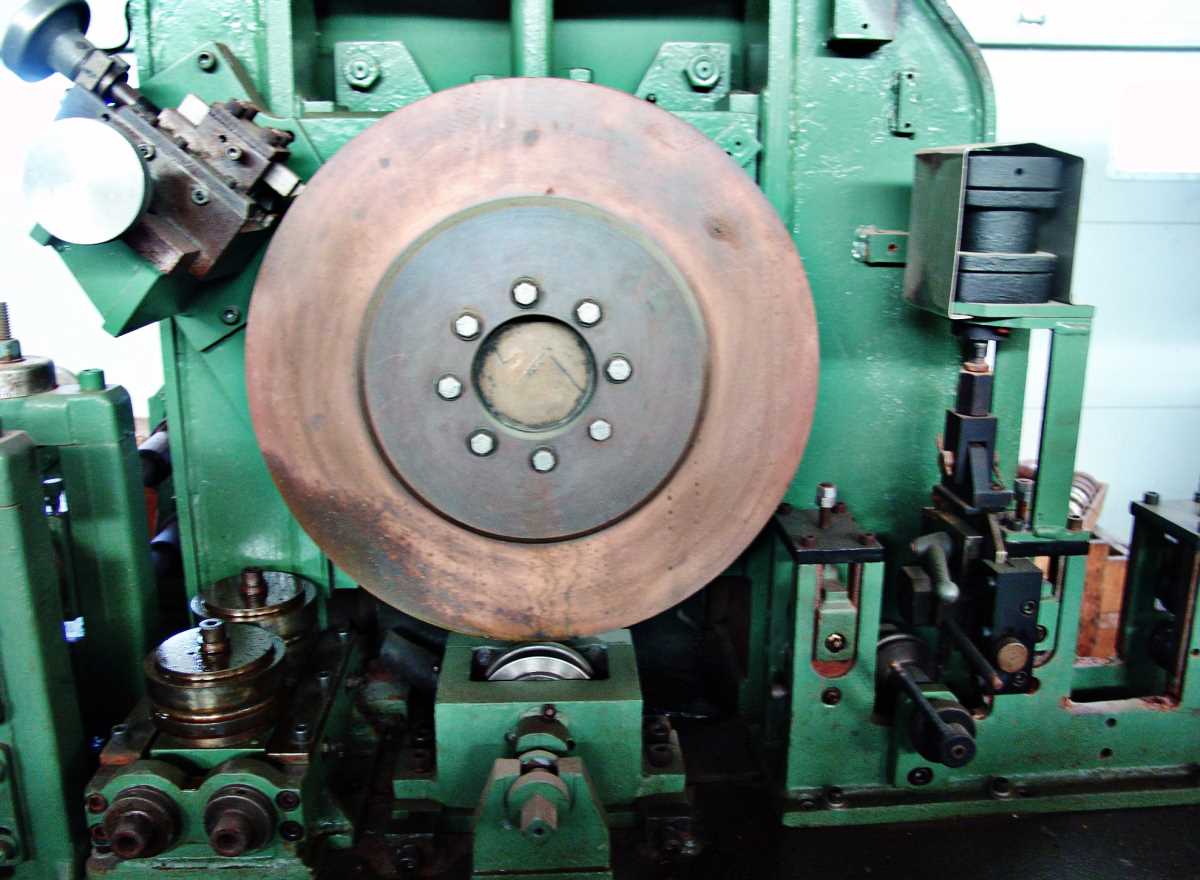

18,000 Amp. DC Welder Rotary Resistance
Scarfing Unit
Coolant Section
20 HP DC Motor

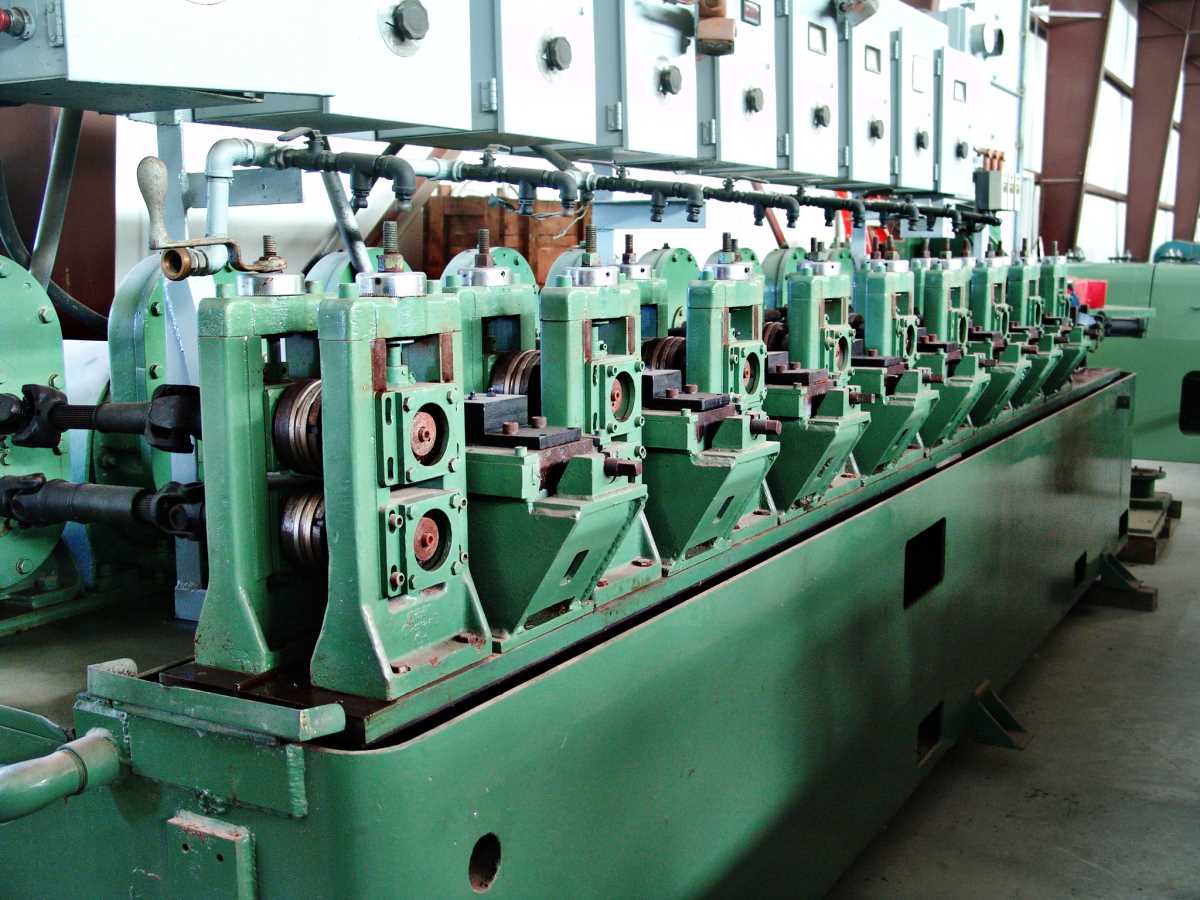

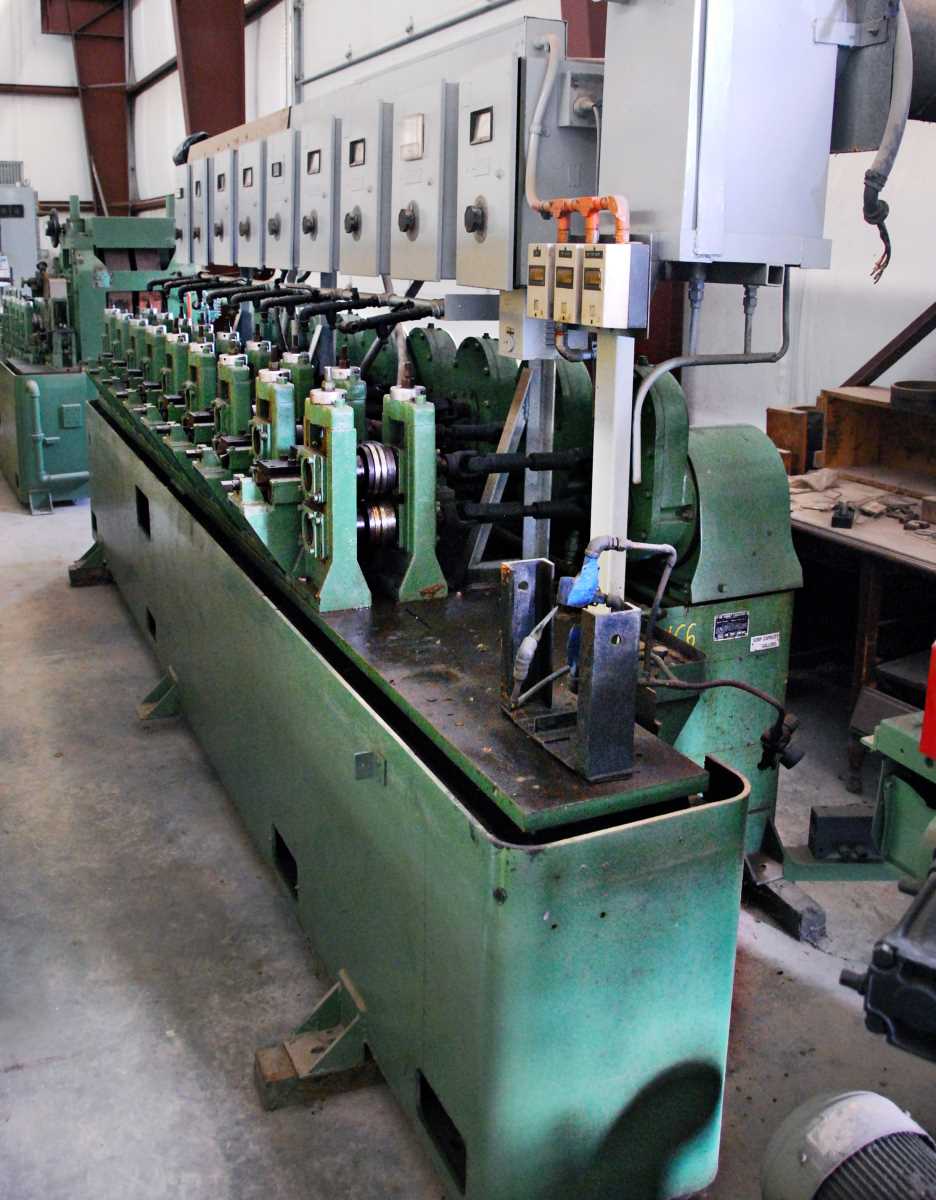

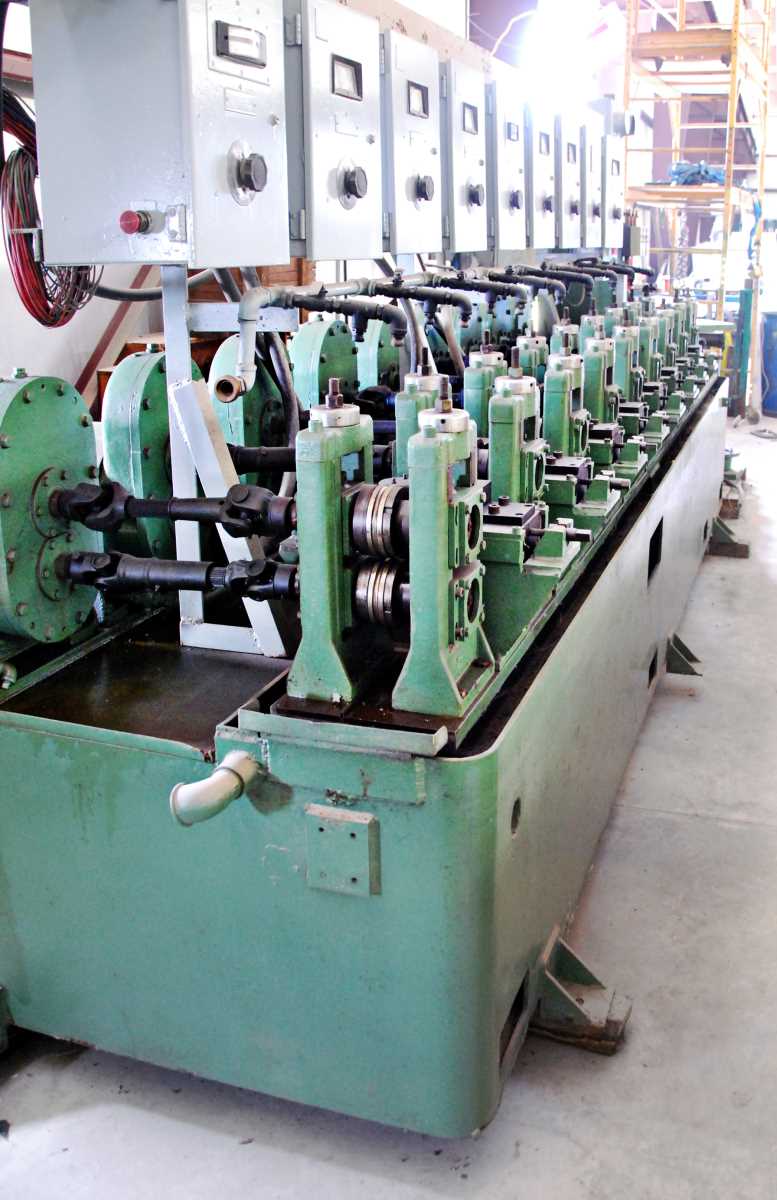

REDUCING (Sizing) MILL:
(9) Driven Reducing Stands
(9) Idle Side Roll Units
Straightener Stand
(9) 7.5 HP DC Motors

DC DRIVE SYSTEM:
WALCO Solid State DC Drive System with CUTLER HAMMER Controls
Voltage 380/3/50

TOOLING:
3/16" (4.7 mm), 1/4" (6.35 mm), 5/16" (7.93 mm)
All Produced From 1/2" (50.8 mm) Welded Tube

NOTE: Tooling is believed to be complete, but suggest customer inspection to confirm.

OVERALL DIMENSIONS: Multiple Pieces, 3 Truckloads
APPROXIMATE WEIGHT: 65,000 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
