For Sale by Hariton Machinery Co Inc
Surplus Record Dealer Since 1971
Alan Hariton
203-36...> Show Seller's Phone Number 203-367-6777 Let the seller know you found their listing on Surplus Record!
Description

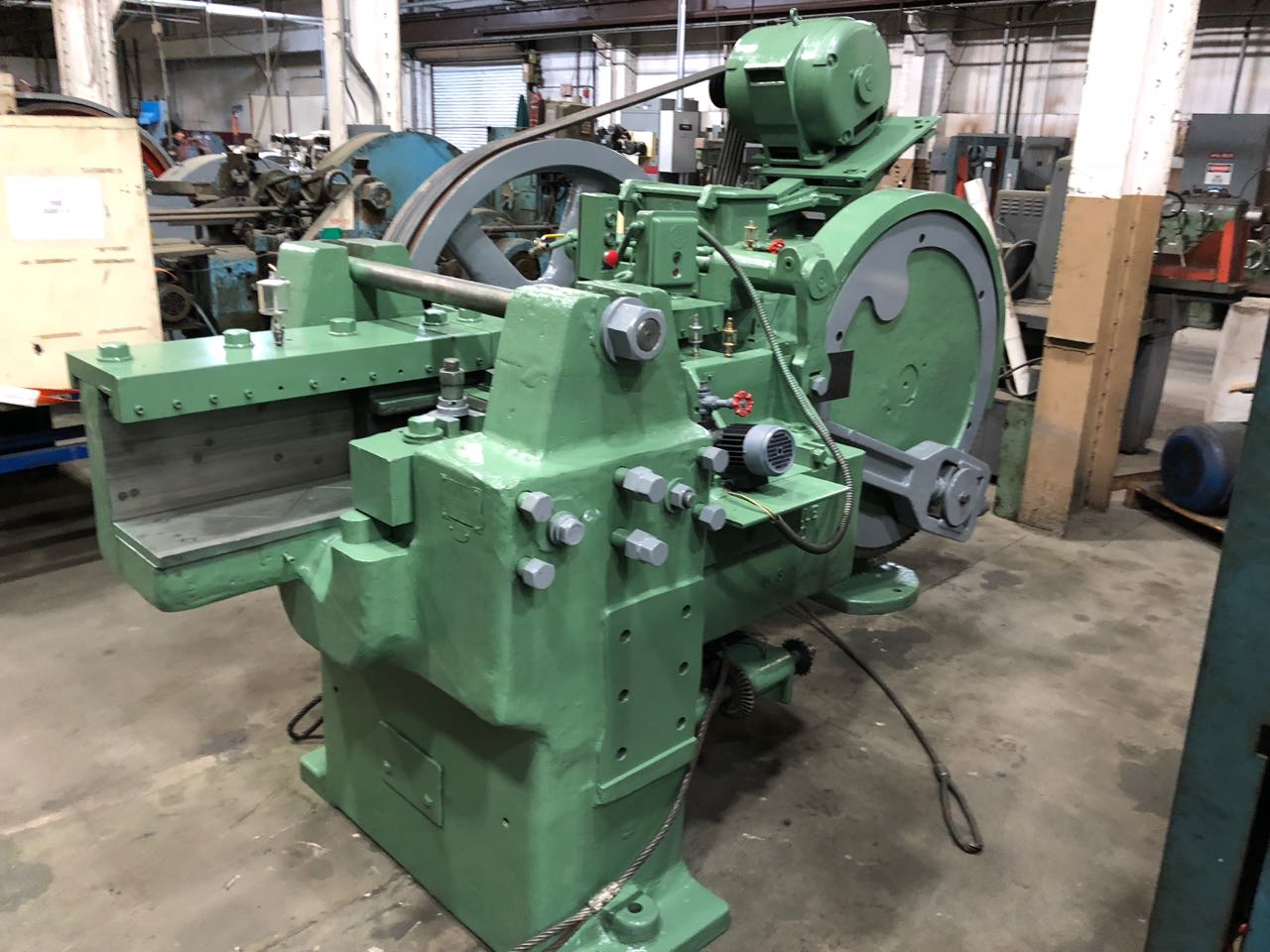

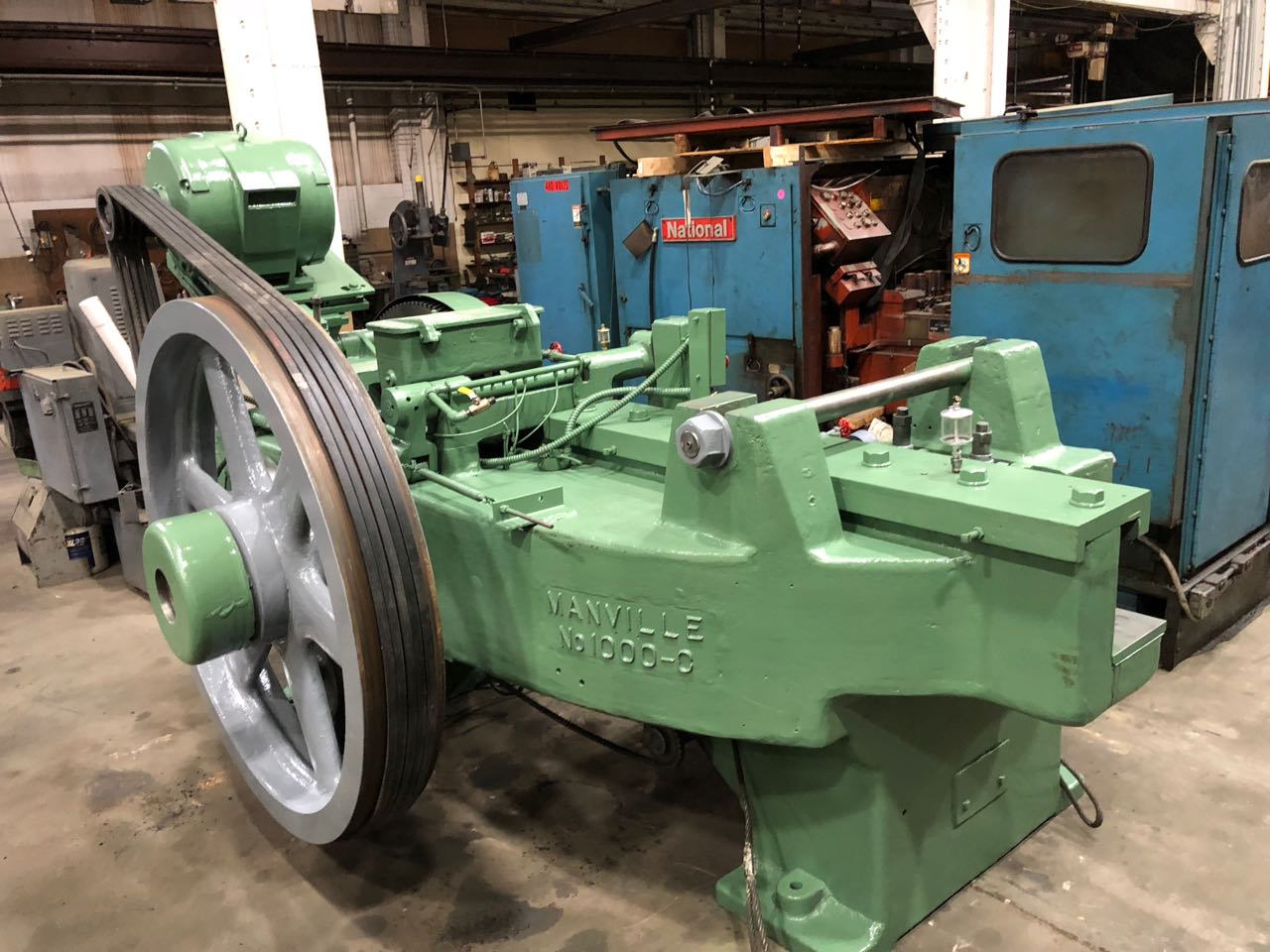

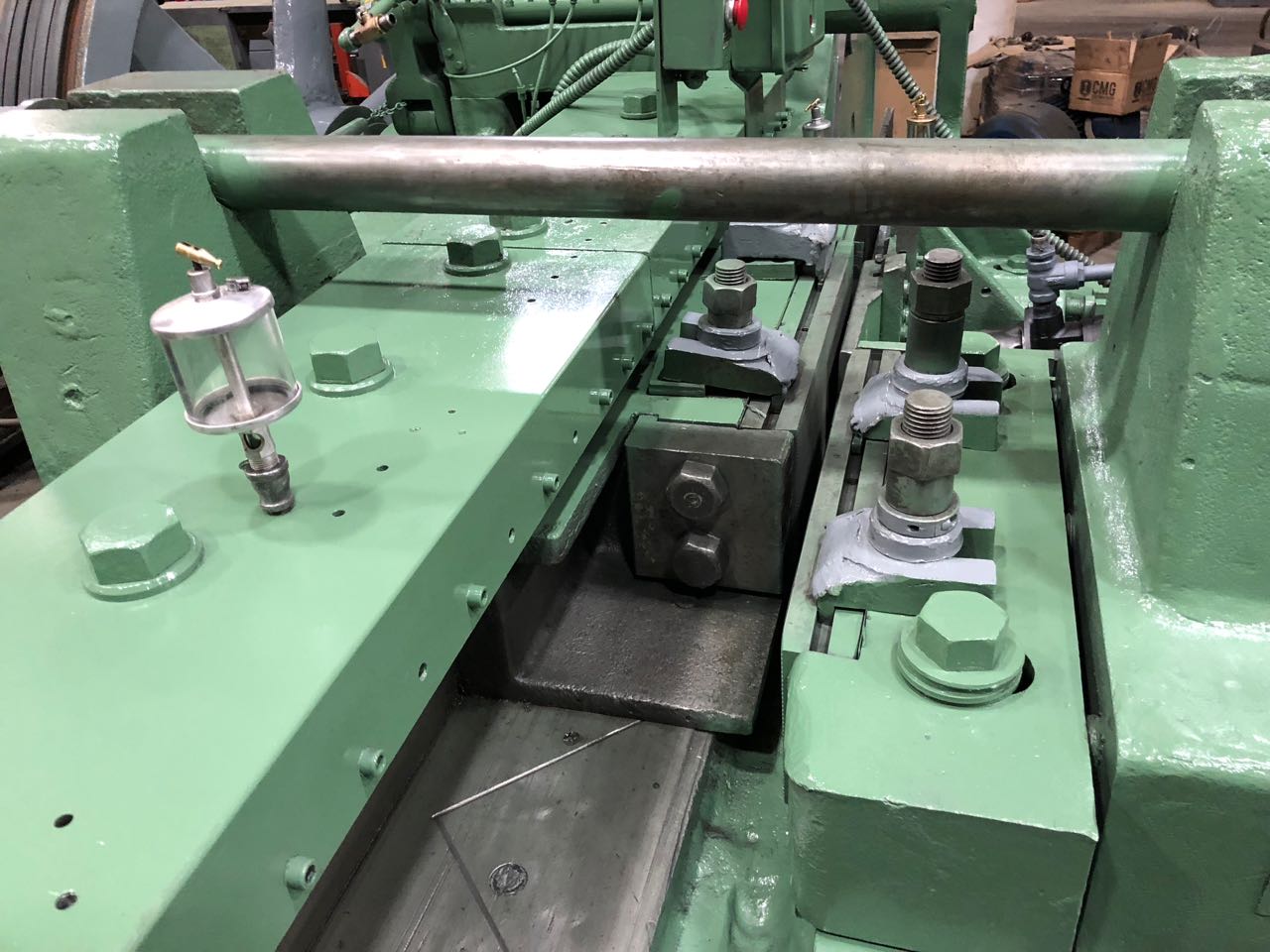

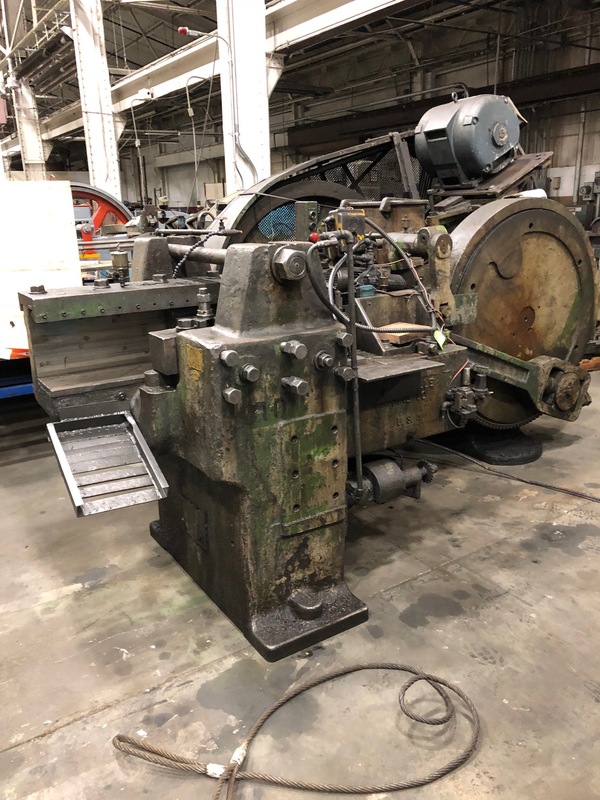

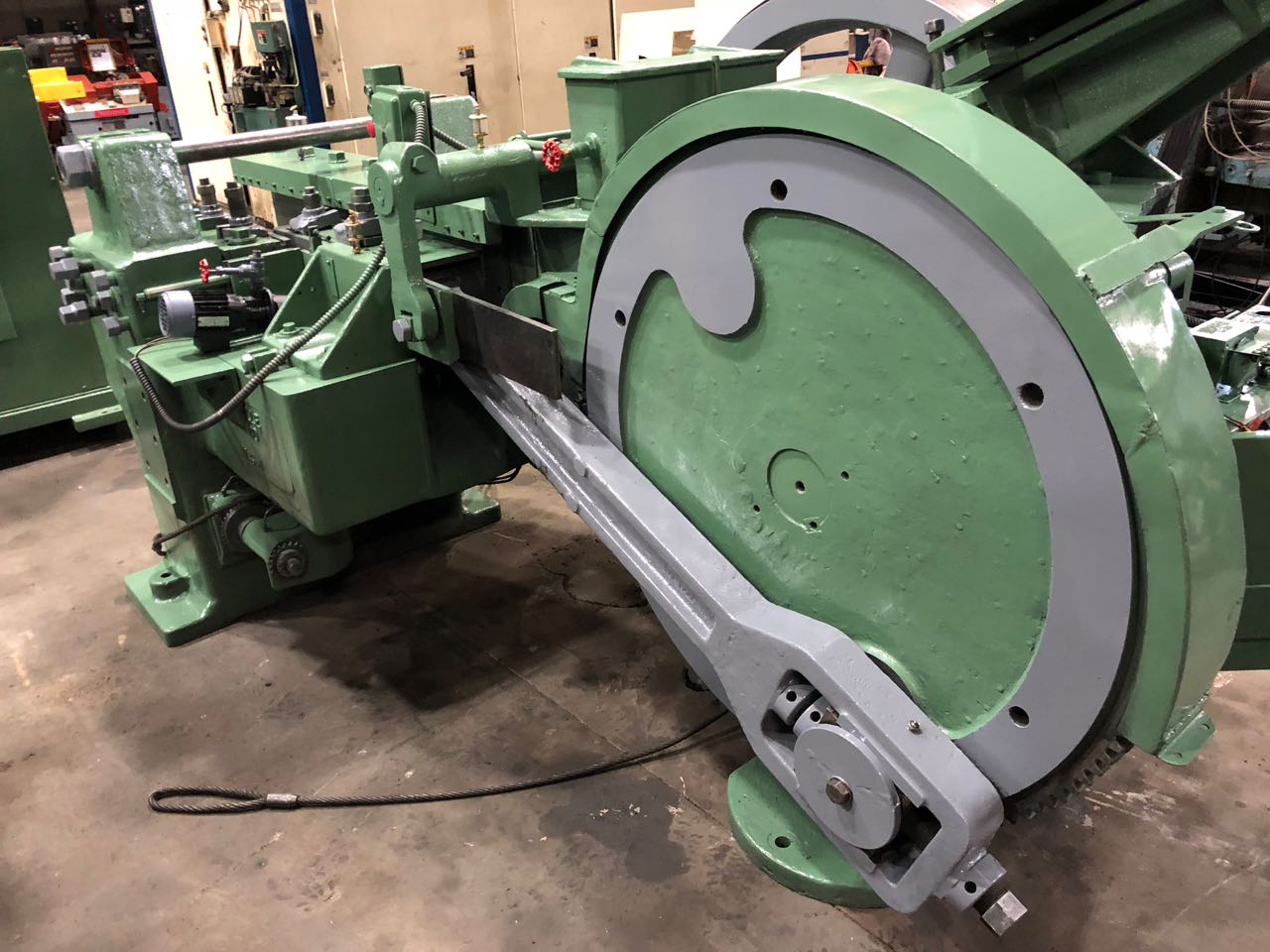

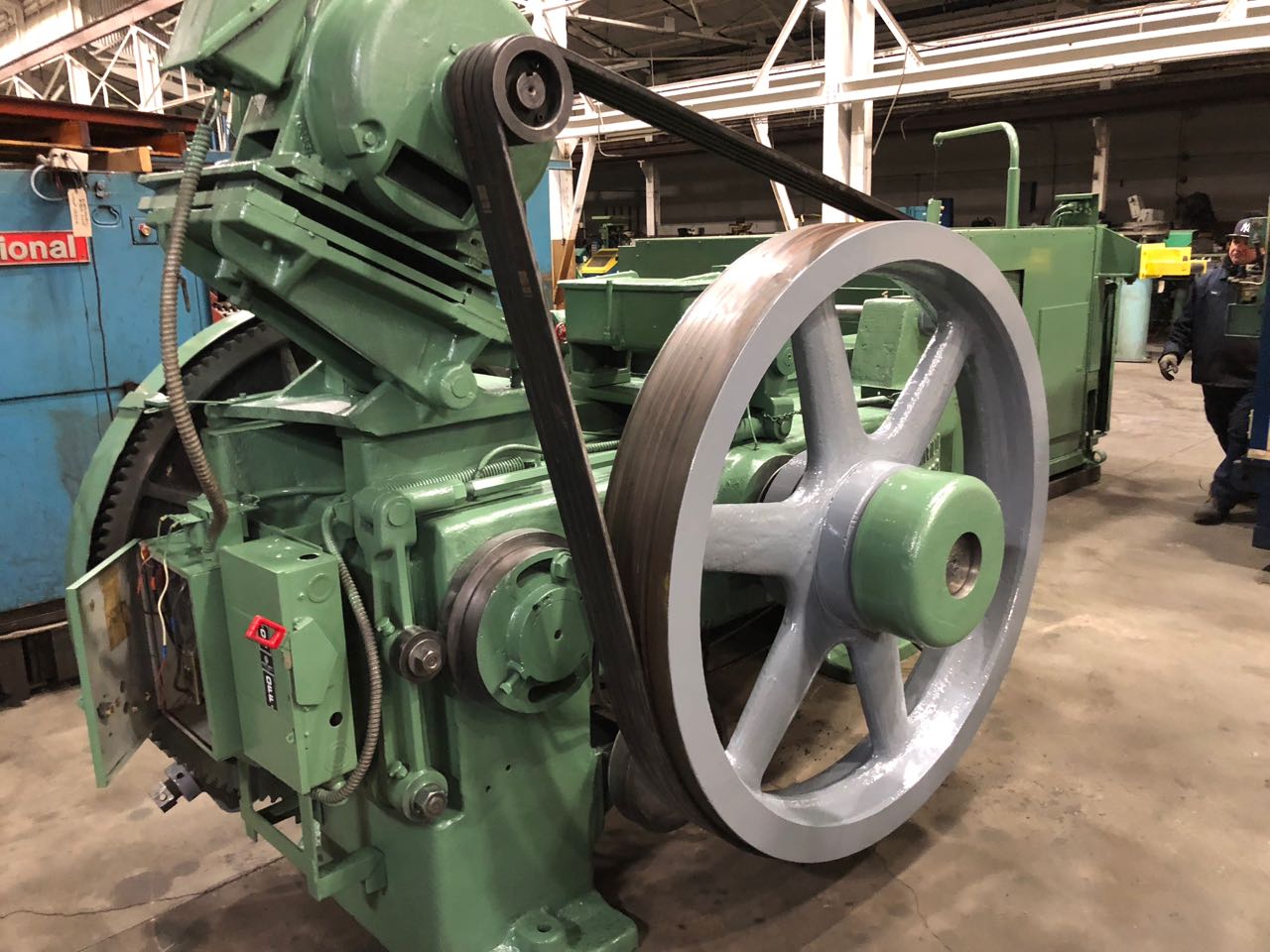

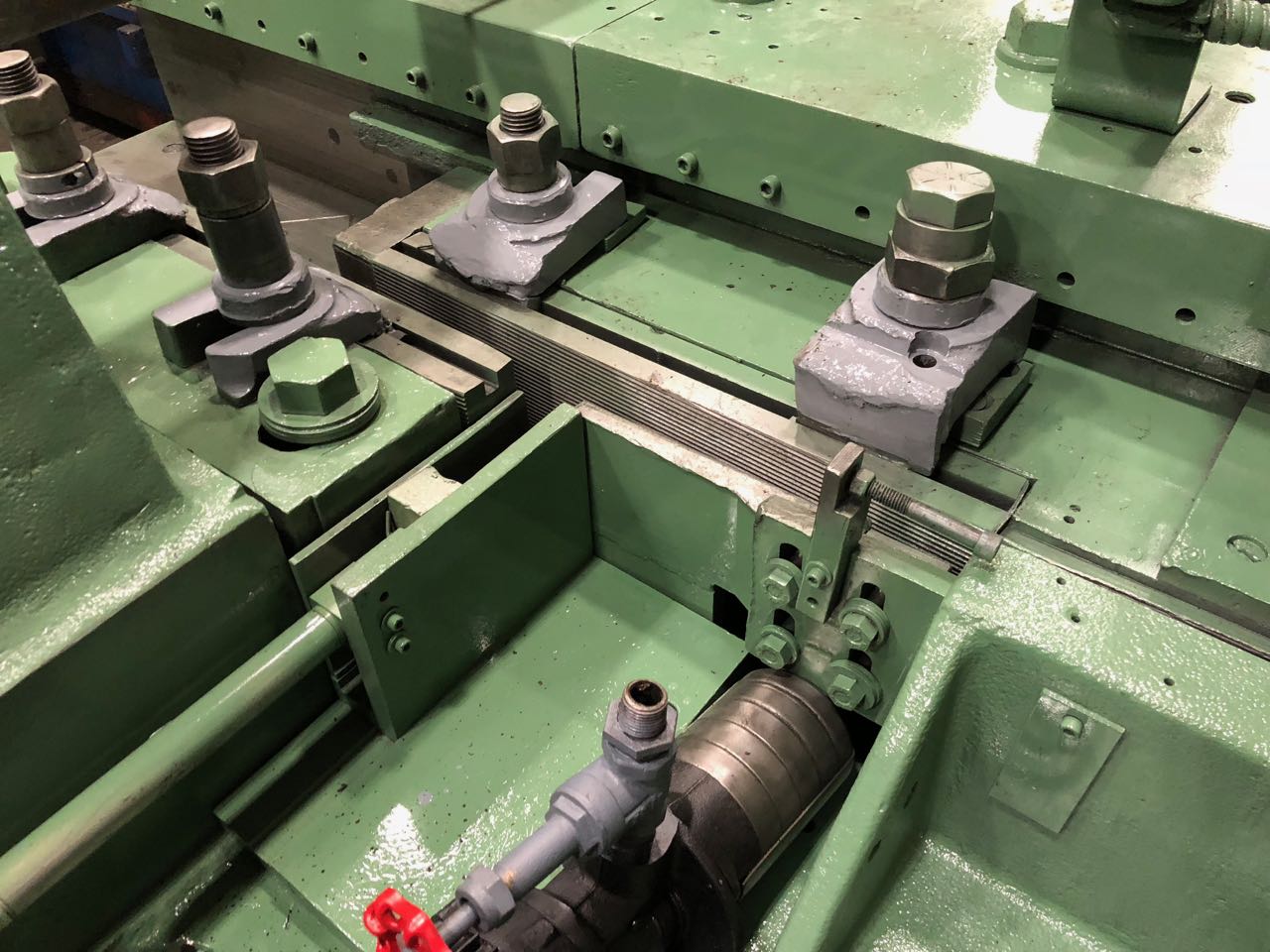

One Used 1-1/4" Manville Model 1000-C ( #70 size) Hand Feed Flat Die Thread Roller, Serial No 20046
Built by National Machinery in Tiffin Ohio
1-1/4" Maximum Thread Diameter
6-1/8" Depth of Die Pockets
40 SPM ( approx.)
20" Length of Moving Die
19" Length of Stationary Die
8-1/2" Distance between Top of Die Block and Bottom of Tie Rod
14-1/2" Maximum Length of Work Piece if End of Shank is at the Bottom of the Die Pocket
30 HP 890 RPM 230/460C 3 PH Motor
Equipped with: Adjustable Pitman, Gravity Lubrication,
Recirculating Coolant (requires reservoir)
Weight Approx. 24,000 Lbs.
Located FOB Bridgeport, CT Warehouse
Built by National Machinery in Tiffin Ohio
1-1/4" Maximum Thread Diameter
6-1/8" Depth of Die Pockets
40 SPM ( approx.)
20" Length of Moving Die
19" Length of Stationary Die
8-1/2" Distance between Top of Die Block and Bottom of Tie Rod
14-1/2" Maximum Length of Work Piece if End of Shank is at the Bottom of the Die Pocket
30 HP 890 RPM 230/460C 3 PH Motor
Equipped with: Adjustable Pitman, Gravity Lubrication,
Recirculating Coolant (requires reservoir)
Weight Approx. 24,000 Lbs.
Located FOB Bridgeport, CT Warehouse
Get Your Price from Hariton Machinery Co Inc!
