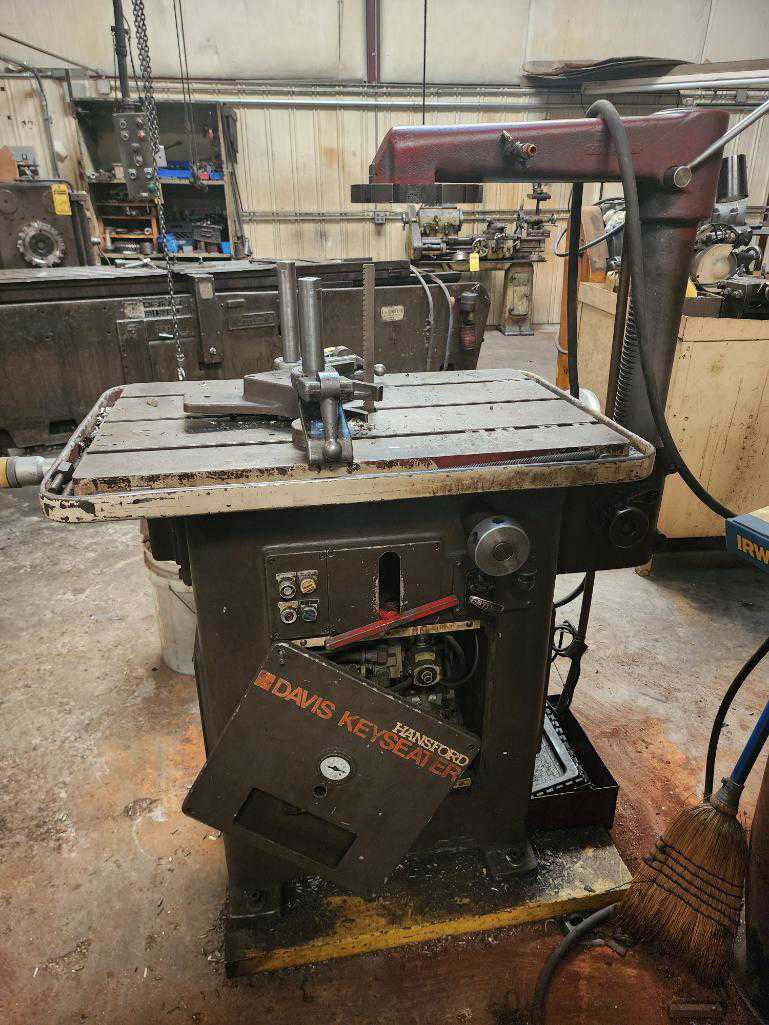

1-1/2" x 18" Hansford Davis David #15, Keyseater, 4-1/2" Stroke, 19" Throat, 31" x 20" T-Slot Table, 2 HP

SERIAL ......................... 15-174

MODEL .......................... 15

KEYWAY CUTTING CAPACITY ........ 1/16" TO 1-1/2"

MAXIMUM LENGTH OF CUT .......... 12"

STROKE ......................... 4-1/2"

THROAT ......................... 19"

MAXIMUM WORK HEIGHT ............ 12"

TABLE AREA (T-SLOTTED) ......... 31" X 20"

STROKES PER MINUTE (VARIABLE) .. 16 TO 60

MINIMUM AIR PRESSURE REQUIRED .. 80 PSI

FLOOR TO TABLE ................. 35-3/8"

TABLE FEED MOVEMENT ............ 1-1/2"

TABLE FEED ..................... AUTOMATIC OR MANUAL

COOLANT ........................ YES

MICROMETER DEPTH STOP .......... YES

LUBRICATION .................... BIJUR ONE SHOT

OPERATOR CONTROLS .............. HAND-JOG-AUTO

VARIABLE SPEED DRIVE MOTOR ..... 2 HORSEPOWER

WELL TOOLED .................... YES
